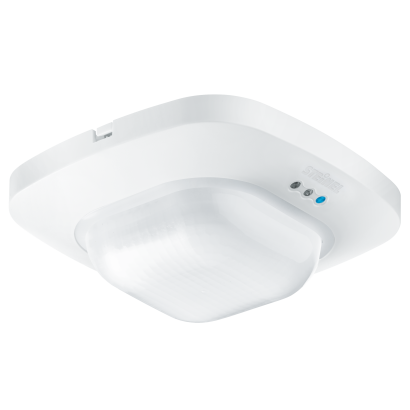

Presence Control PRO IR Quattro HD

Detection no finer! Infrared presence detector Presence Control PRO IR Quattro HD LiveLink for indoors, ideal for medium to large-size offices, conference and meeting rooms, classrooms and lecture theatres, sports halls and warehouses, installation height up to 10 m, for integration into the LiveLink system, 4800 switching zones for the ultimate in detection quality, presence detection over a true 64 m2, square detection zone, mechanically scalable.


About Presence Control PRO IR Quattro HD

Fits on the ceiling. And sees what others dream of.

HD isn’t just restricted to televisions but from now on also used in presence detectors. Because IR Quattro HD provides extremely high-definition detection. 4,800 switching zones and a square detection footprint with a presence zone covering a true 64 m² leave no margin whatsoever for inadvertent triggering and blind spots. Unique: The presence zone can be mechanically scaled without the slightest loss of quality. This means IR Quattro HD applications in medium to large-size offices, conference and meeting rooms, class rooms and lecture theatres as well as sports halls and warehouses can be planned and configured with absolute precision. Something others can only dream of.

Technical Specifications
Dimensions(w x h x d)
120 x 120 x 70 mm
Presence detector
DALI bus voltage
Current consumption
3 DALI user
Sensor type
Passive Infrared
inside buildings
Recommended installation height
2.5-10 m
Creep-under protection
Square presence detection zone
8 x 8 m max. (64m²)
Square radial detection zone
8 x 8 m max. (64m²)
Square tangential detection zone
20 x 20 m max. (400m²)
Reach mechanically adjustable
Sensor system
13 detection levels, 4800 switching zones
via LiveLink app
Response value luminosity
10-1000 lx
Time setting
IQ mode (automatic adjustment to usage profile) 1 min. - 60 min.
User-friendly functions
Motion detection; Semi-automatic / fully automatic mode; Brightness measurement; Constant-lighting control; Teach mode; Time setting
Degree of protection (IP)
Temperature range
-20-+55 °C
UV-resistant, paintable
LiveLink Dali
