Sensor-switched LED indoor light

RS 200 SC - with motion detector & Bluetooth

Product Code: 078782

  • Indoor light with motion detector, with high-quality anthracite-coloured aluminium housing
  • With pleasant ambient light for a beautiful room atmosphere, suitable for ceiling and wall mounting
  • Wireless networking via Bluetooth and easy setting via STEINEL Connect App

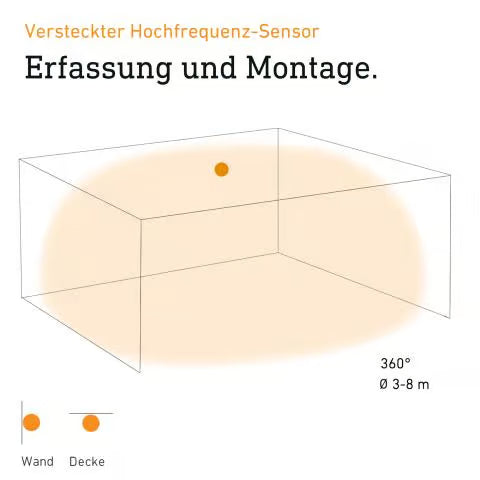

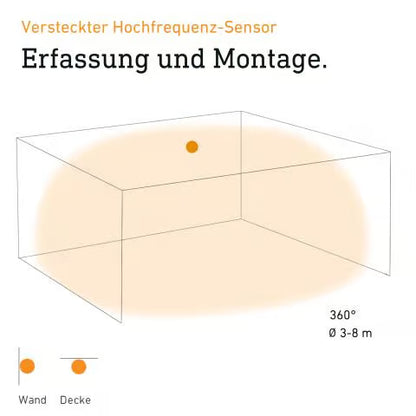

  • Automatic light thanks to hidden 360° high-frequency sensor with up to Ø8 m detection on movement
  • Functions: adjustable basic and main light, pleasant soft light start, 4 hours continuous light, neighbour function
  • Warm white light (3000 K) and long-life 17,1 W LEDs with 1165 lm
  • Incl. mounting accessories - plastic-free packaging

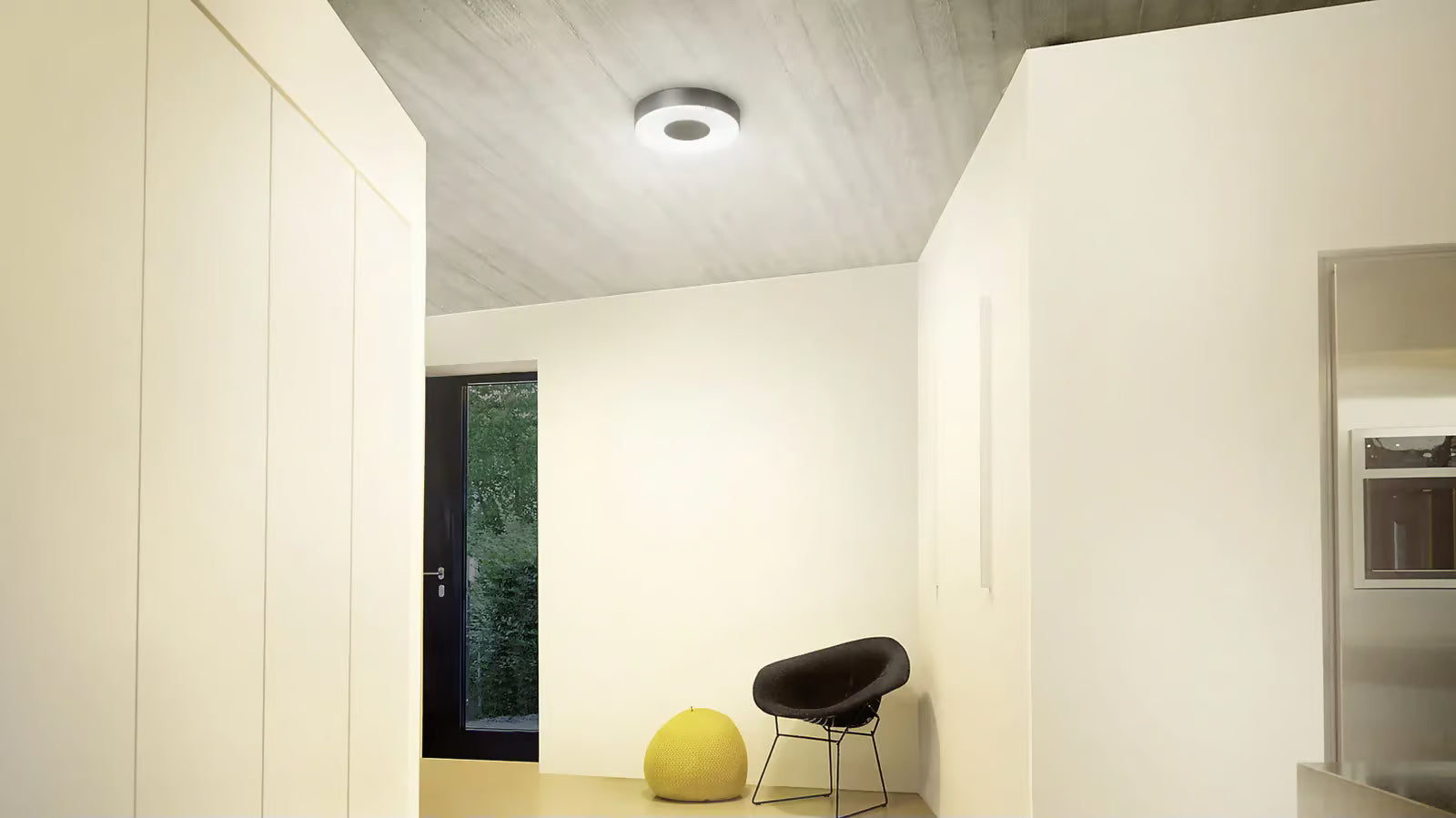

Indoor highlight.

Indoor highlight.

Premiere! The RS 200 SC is the first Bluetooth-enabled STEINEL Connect indoor light to be featured in our Indoor range. This makes it easy to interconnect, set, adjust and operate via Bluetooth. No cables. Without stress. It's never been easier! Enclosed in a high-quality anthracite-coloured aluminium housing, the LED indoor light comes with an intelligent soft-start function and a 360° high-frequency sensor. It has a diameter of 26.2 cm, is 5.3 cm in height and makes classy design and lighting statements on ceilings and walls. At the same time, warm white ambient light in a colour temperature of 3000 K always conjures a pleasing room atmosphere. The innovative RS 200 SC is also available without sensor.



Icon

long life LED 25.000 h

Icon

indoor

Icon

3000K warm-white

Icon

high frequency sensor 360°

Icon

ideal 1 - 2,5 m

Icon

max. Ø 8 m

Icon

2 - 2000 lux

Icon

Light source not exchangeable

Icon

Control gear not exchangeable

  • Application, place: Indoors

  • Installation: Surface wiring

  • Article number: 078782

  • PU1, net weight: 0,902 kg

  • Luminous flux total product: 1165 lm

  • Colour temperature: 3000 K

  • With motion detector: Yes

  • Interconnection via: Bluetooth Mesh

  • Output: 17,1 W

  • Package content: 1

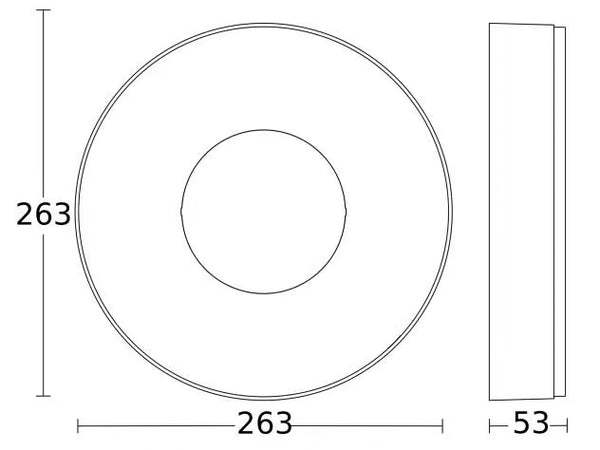

Product dimension

General

Dimensions (Ø x H)263 x 53 mm
With lampYes, STEINEL LED system
With motion detectorYes
Manufacturer's Warranty3 years
Settings viaSmartphone, Tablet, App, Bluetooth Mesh
With remote controlNo
Versionwith motion detector & Bluetooth
PU1, EAN4007841078782
Application, placeIndoors
Application, roomstairwell, Indoors, function room / ancillary room, corridor / aisle, recreation room
ColourAnthracite
Package content1
Fuse protection B10134
Fuse protection B16215
Fuse protection C10134
Fuse protection C16215

Fixation / mounting

Installation sitewall, ceiling
InstallationCeiling, Wall

Housing

Impact resistanceIK10
IP-ratingIP54
Protection classI
Ambient temperaturefrom -20 up to 40 °C
Housing materialAluminium
Cover materialPlastic, opal

Electrical equipment

Mains power supply220 – 240 V / 50 – 60 Hz
Output17,1 W

Sensor technology

Mounting height max.4,00 m
HF-system5,8 GHz
Slave mode selectableYes
Detectionalso through glass, wood and stud walls
Electronic scalabilityYes
Reach, radialØ 8 m (50 m²)
Reach, tangentialØ 8 m (50 m²)
Detection angle360 °

Luminaire

Photo-cell controllerYes
Luminous flux total product1165 lm
Total product efficiency68 lm/W
Colour temperature3000 K
Colour variation LEDSDCM3
LampLED cannot be replaced
LED cooling systemPassive Thermo Control
Soft light startYes
Continuous lightselectable, 4h
Lifetime LED according to IEC-62717 (L70)54000
LED service life according to IES TM-21 (L70)54000
Colour Rendering Index CRI= 80
Photobiological safety in accordance with EN 62471RG1

General information

Article number078782
European Article Number (EAN)4007841078782
Transmitter power< 1 mW
Basic light level function in per cent10 – 100 %
Angle of aperture160 °

Functions

FunctionsMotions sensor, DIM function, Light sensor, Orientation light
Twilight setting2 – 2000 lx
Time setting5 s – 30 Min.
Basic light level functionYes
Basic light level function, detailLED effect light
Basic light level function time1-60 min
Main light adjustable50 - 100 %

Connection

InterconnectionYes
Type of interconnectionMaster/master
Interconnection viaBluetooth Mesh

General information

Product categorySensor-switched LED indoor light
