Connected Lighting in the application.

The combination of sensor technology, efficient LED light, networking and intelligent control ensures needs-based switching and creates greater convenience and safety for users. The system is also unbeatably easy to install thanks to tool-free commissioning via the Steinel Connect app. A 5-year manufacturer's guarantee, BEG eligibility and savings of up to 95% on electricity and maintenance costs round off the benefits for everyone involved.



Icon

high frequency sensor 360°

Icon

max. ø 7 m

Icon

Settings via App

Icon

soft light start

Icon

0 - 100% main light brightness

Icon

0 - 100% basic light

Icon

IP54 room side

Icon

Control gear not exchangeable

Icon

Light source not exchangeable

  • Application, place: Indoors

  • Installation: In-ceiling installation

  • Article number: 084998

  • PU1, net weight: 0,316 kg

  • Colour temperature: 3000 K, 4000 K, 5700 K

  • With motion detector: Yes

  • Interconnection via: Bluetooth Mesh

  • Output: 10,8 W

  • Package content: 1

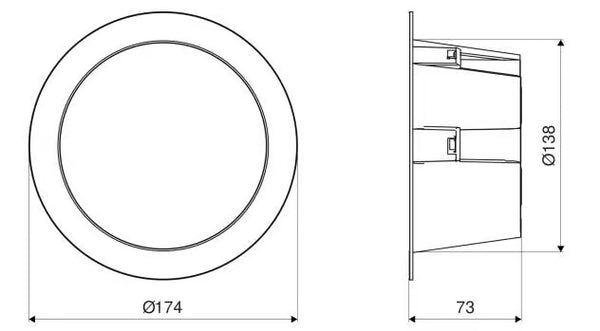

Product dimension

General

Dimensions (Ø x H)174 x 73 mm
With lampYes, STEINEL LED system
With motion detectorYes
Manufacturer's Warranty5 years
Settings viaSmartphone, App, Bluetooth
Versionwith motion detector & Bluetooth
PU1, EAN4007841084998
Application, placeIndoors
Application, roomcorridor / aisle, function room / ancillary room, WC / washroom, changing room, stairwell, kitchenette, reception / lobby, Indoors
Colourwhite
Package content1
Fuse protection B1078
Fuse protection B16125
Fuse protection C10193
Fuse protection C16209

Fixation / mounting

Installation siteceiling
InstallationCeiling, In-ceiling installation

Housing

Impact resistanceIK05
IP-ratingIP20
Protection classII
Ambient temperaturefrom -20 up to 40 °C
IP-rating, ceilingIP54

Electrical equipment

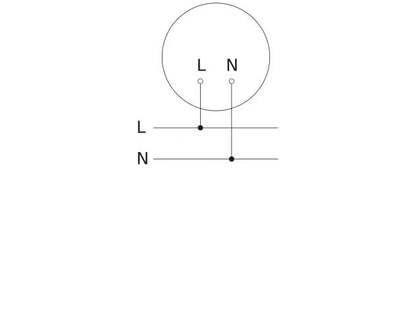

Mains power supply220 – 240 V / 50 – 60 Hz
Power consumption0,5 W
Output10,8 W

Sensor technology

Mounting height max.4,00 m
HF-system5,8 GHz
Slave mode selectableYes
Detectionalso through glass, wood and stud walls

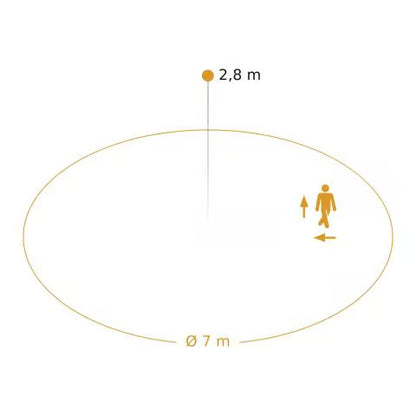

Reach, radialØ 7 m (38 m²)
Reach, tangentialØ 7 m (38 m²)
Detection angle360 °

Luminaire

Colour temperature3000 K, 4000 K, 5700 K
Colour variation LEDSDCM3
LampLED cannot be replaced
LED cooling systemPassive Thermo Control
Soft light startYes
Lifetime LED according to IEC-62717 (L70)>54.000
Lifetime LED according to IEC-62717 (L80)>54.000
LED service life according to IES TM-21 (L70)>54.000
Lifetime LED according to IES TM-21 (L80)>54.000
Colour Rendering Index CRI= 82
Photobiological safety in accordance with EN 62471RG1
Luminous flux total product (3.000K)1109 lm
Luminous flux total product (4.000K)1177 lm
Luminous flux total product (5.700K)1137 lm
Total product efficiency (3.000K)103 lm/W
Total product efficiency (4.000K)109 lm/W
Total product efficiency (5.700K)105 lm/W

Functions

FunctionsConnection to central battery systems, DIM function, Adjustable fade time when switching on and off, Color temperature change, Free selection of the light value in a luminaire group, Group parameterisation, Light sensor, Neighbouring group function, Orientation light, Encrypted communication
Twilight setting2 – 2000 lx
Time setting5 s – 60 Min.
Basic light level functionYes
Basic light level function, detailLED effect light
Basic light level function time5s-60 min
Main light adjustableYes

Connection

InterconnectionYes
Interconnection viaBluetooth Mesh

General information

Article number084998
European Article Number (EAN)4007841084998
Basic light level function in per cent0 – 100 %
Product categorySensor-switched LED indoor light
