Sensor-switched LED indoor light

RS D2 S

Product Code: 052539

  • Indoor light with motion detector, with brushed stainless steel frame
  • With pleasant ambient light for a beautiful room atmosphere, suitable for ceiling and wall mounting

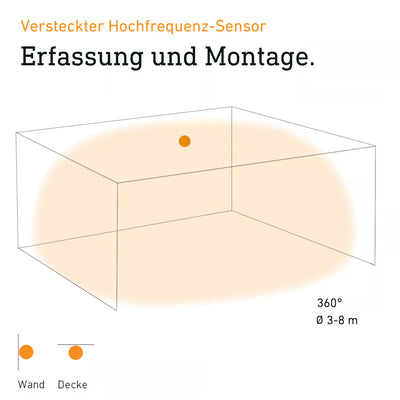

  • Automatic light thanks to hidden 360° high-frequency sensor with up to Ø8 m detection on movement
  • Functions: adjustable basic light, 4 hours continuous light
  • Warm white light (3000 K) and long-life 8,8 W LEDs with 886 lm
  • Incl. mounting accessories - plastic-free packaging

Pairs well with
How much energy do you want to save?
It's always been attractive. Now it's even brighter.
Functions at a glance

How much energy do you want to save?

With STEINEL, you have the choice when it comes to energy saving. Our lights without motion sensors use energy-efficient LEDs and provide you with full manual control – a solid foundation for energy efficiency. Want to save more? Then our lights with twilight switches are a good choice, automatically turning on in darkness and saving up to 50% energy. For the highest savings of up to 95%, we recommend our lights with motion sensors, which only activate when needed. Choose your preference and enjoy the combination of efficiency and convenience with STEINEL.



It's always been attractive. Now it's even brighter.

Sleek, smart and attractive. Opting for the RS D2 S designer indoor luminaire, you'll be giving your home a real designer highlight with pleasant LED illumination. With its stunning looks and intelligent technology, this light provides the last word in stylish home convenience. Once fitted to the wall or ceiling, the high-frequency sensor switches it ON and OFF in complete silence and all automatically. The light is child's play to install and the function settings on the product are easy to understand too. Your neighbours will be amazed.

Functions at a glance

  • Basic light: dimmed continuous illumination (10%) after dark, which only switches to maximum light output when motion is detected
  • Continuous light: the light can be switched on for max. 4 hours using the switch, without detecting motion
  • Twilight setting: select the lighting conditions in which the light switches on when motion is detected
  • Time setting: decide how long (5 secs – 15 mins) the light stays switched on after motion is detected
  • Reach setting: The detection range (sensitivity) can be adjusted from Ø 2.5–8 m

How much energy do you want to save?

With STEINEL, you have the choice when it comes to energy saving. Our lights without motion sensors use energy-efficient LEDs and provide you with full manual control – a solid foundation for energy efficiency. Want to save more? Then our lights with twilight switches are a good choice, automatically turning on in darkness and saving up to 50% energy. For the highest savings of up to 95%, we recommend our lights with motion sensors, which only activate when needed. Choose your preference and enjoy the combination of efficiency and convenience with STEINEL.



It's always been attractive. Now it's even brighter.

Sleek, smart and attractive. Opting for the RS D2 S designer indoor luminaire, you'll be giving your home a real designer highlight with pleasant LED illumination. With its stunning looks and intelligent technology, this light provides the last word in stylish home convenience. Once fitted to the wall or ceiling, the high-frequency sensor switches it ON and OFF in complete silence and all automatically. The light is child's play to install and the function settings on the product are easy to understand too. Your neighbours will be amazed.

Functions at a glance

  • Basic light: dimmed continuous illumination (10%) after dark, which only switches to maximum light output when motion is detected
  • Continuous light: the light can be switched on for max. 4 hours using the switch, without detecting motion
  • Twilight setting: select the lighting conditions in which the light switches on when motion is detected
  • Time setting: decide how long (5 secs – 15 mins) the light stays switched on after motion is detected
  • Reach setting: The detection range (sensitivity) can be adjusted from Ø 2.5–8 m
Icon

30 years (Ø 4,5h / day)

Icon

3000K warm-white

Icon

high frequency sensor 360°

Icon

Ø 3 - 8 m

Icon

2 - 2000 lux

Icon

5 sec - 15 min

Icon

Manual override

Icon

indoor

Icon

energy saving

  • Application, place: Indoors

  • Installation: Surface wiring

  • Article number: 052539

  • PU1, net weight: 1,045 kg

  • Luminous flux total product: 886 lm

  • Colour temperature: 3000 K

  • With motion detector: Yes

  • Output: 8,8 W

  • Package content: 1

Product dimension

General

Dimensions (L x W x H)66 x 300 x 300 mm
With lampYes, STEINEL LED system
With motion detectorYes
Manufacturer's Warranty3 years
Settings viaPotentiometers
With remote controlNo
PU1, EAN4007841052539
Application, placeIndoors
Application, roomcorridor / aisle, function room / ancillary room, stairwell, WC / washroom, outdoors, Indoors
Colourwhite
Package content1
Fuse protection B1054
Fuse protection B1687
Fuse protection C1090
Fuse protection C16145

Fixation/ mounting

Installation sitewall, ceiling
InstallationWall, Ceiling, Surface wiring

Housing

Impact resistanceIK03
IP-ratingIP20
Protection classII
Ambient temperaturefrom -10 up to 40 °C
Housing materialPlastic
Cover materialPlastic, opal
IP-rating, ceilingIP20

Electrical equipement

Mains power supply220 – 240 V / 50 – 60 Hz
Power consumption0,38 W
Output8,8 W

Sensor technology

Mounting height max.4,00 m
HF-system5,8 GHz
Detectionalso through glass, wood and stud walls
Capability of masking out individual segmentsNo
Electronic scalabilityYes
Mechanical scalabilityNo
Reach, radialØ 8 m (50 m²)
Reach, tangentialØ 8 m (50 m²)
Detection angle360 °

Luminaire

Photo-cell controllerYes
Luminous flux total product886 lm
Colour temperature3000 K
Colour variation LEDSDCM3
LampLED cannot be replaced
Basewithout
LED cooling systemPassive Thermo Control
Soft light startNo
Continuous lightselectable, 4h

General information

Article number052539
European Article Number (EAN)4007841052539
Transmitter power< 1 mW
Basic light level function in per cent10 %
Angle of aperture160 °

Functions

Twilight setting2 – 2000 lx
Time setting5 s – 15 Min.
Basic light level functionYes
Basic light level function time10/30 min, all night
Twilight setting TEACHNo

Connection

InterconnectionNo

General information

Product categorySensor-switched LED indoor light
