Motion detector - Professional Line

MD IR N130 White

Product Code: 069056

  • An even closer view of access areas: ideal solution for building entrances and façades
  • Eagle Eye technology extends the individual detection area with frontal walking direction towards the sensor
  • Power max. 600 W (LED-ready)
  • Sensor family with three detection areas: Wall mounting 130° or 270° and ceiling mounting with 360°, optionally as surface-mounted or recessed version
  • Commissioning, settings and networking via Bluetooth Mesh
  • Extensive Connect functionalities, such as control of connected outdoor lights, definition of timer programmes and integration of wireless push-buttons
  • Corner wall bracket optionally available
Color
Color: White
Hurry, only 1 item left in stock!
Overview
An even closer view of access areas.

Overview

The innovative sensor family covers three different detection areas. For wall mounting, there is a surface-mounted version with a detection range of 130° or 270°. A 360° solution is available for the ceiling, either as a surface-mounted or recessed version. All models are available in white and anthracite. The nexx.IS PRO series is available with COM1 and uDIM (leading edge and trailing edge dimming) interfaces. Cover clips in the lens color are included in the scope of delivery.



An even closer view of access areas.

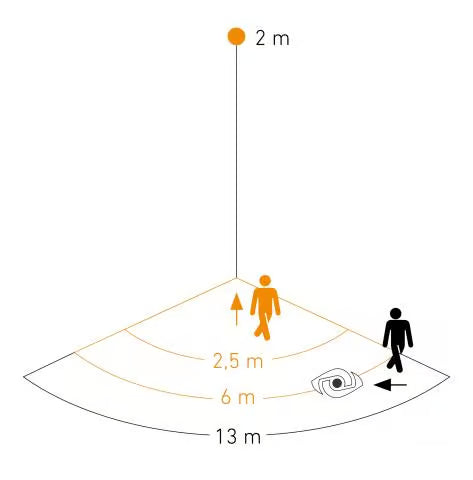

The patented ‘Eagle Eye’ technology extends the radial detection range. This allows you to keep an even closer eye on individually selectable access areas. To do this, a small window on the sensor head is simply turned in the desired direction. A special pyro sensor doubles the detection range at this point from a radial 3.00 m to a radial 6.00 m.



Overview

The innovative sensor family covers three different detection areas. For wall mounting, there is a surface-mounted version with a detection range of 130° or 270°. A 360° solution is available for the ceiling, either as a surface-mounted or recessed version. All models are available in white and anthracite. The nexx.IS PRO series is available with COM1 and uDIM (leading edge and trailing edge dimming) interfaces. Cover clips in the lens color are included in the scope of delivery.



An even closer view of access areas.

The patented ‘Eagle Eye’ technology extends the radial detection range. This allows you to keep an even closer eye on individually selectable access areas. To do this, a small window on the sensor head is simply turned in the desired direction. A special pyro sensor doubles the detection range at this point from a radial 3.00 m to a radial 6.00 m.
