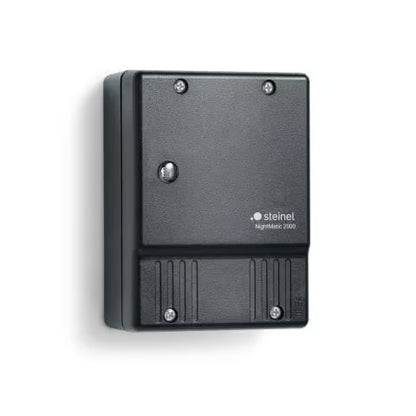

NightMatic 2000 Black

Product Code: 550318

  • Photo-cell controller for automatic night-time illumination of house fronts, gardens, shop windows and other areas

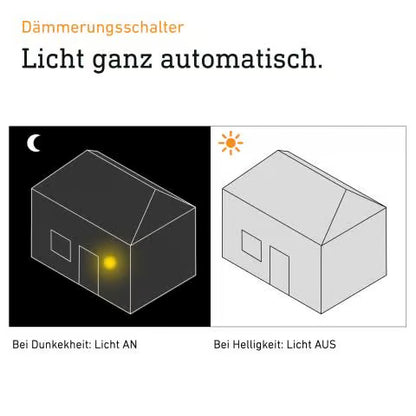

  • Thanks to the brightness sensor, the light comes on automatically at dusk - and goes off again at dawn
  • The twilight value can be individually adjusted from 2 - 30 lux ambient brightness via potentiometer
  • Incl. mounting accessories - plastic-free packaging
Color
Color: Black

Pairs well with

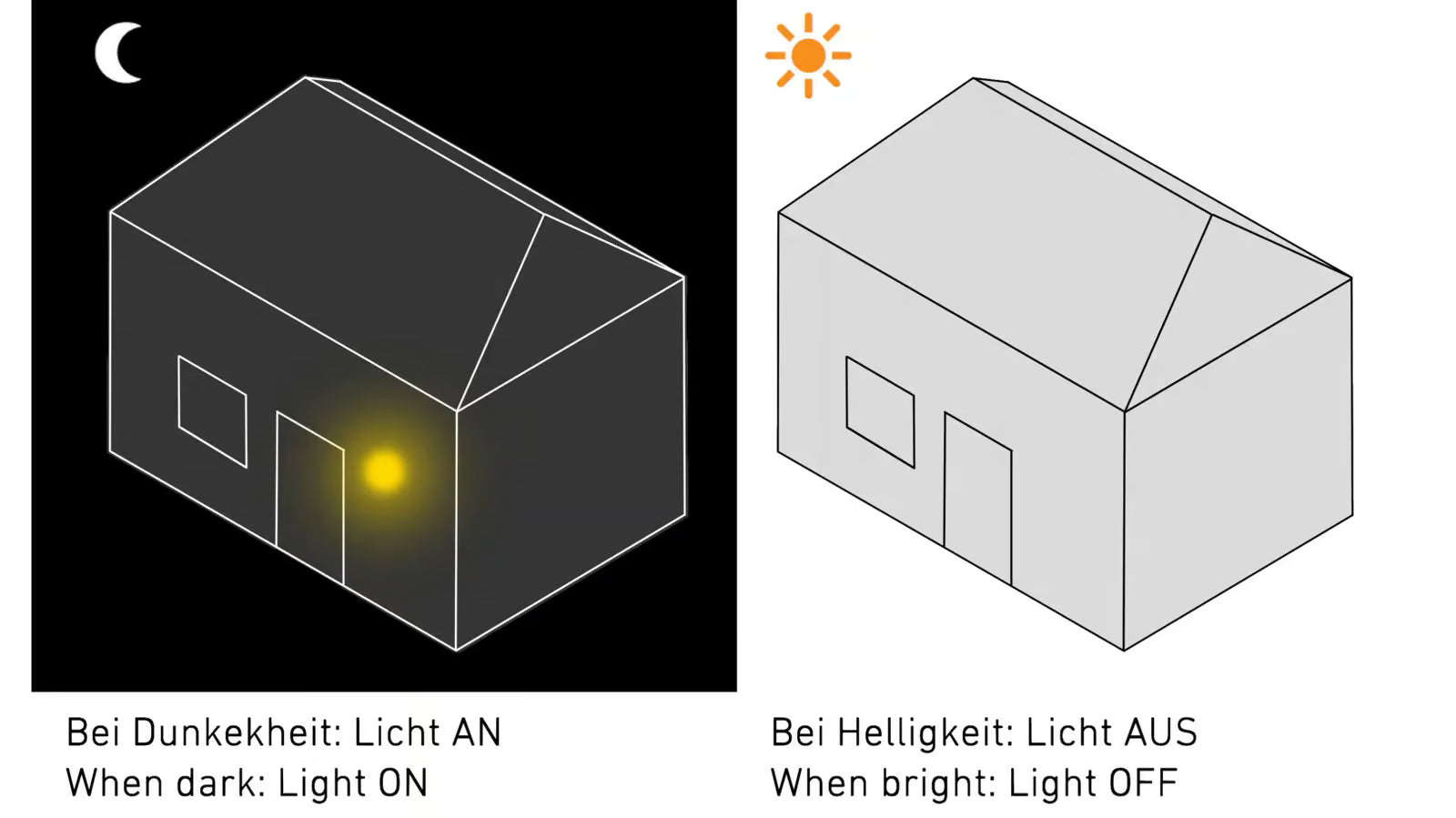

Switches the light 'ON' or 'OFF'. All automatically.

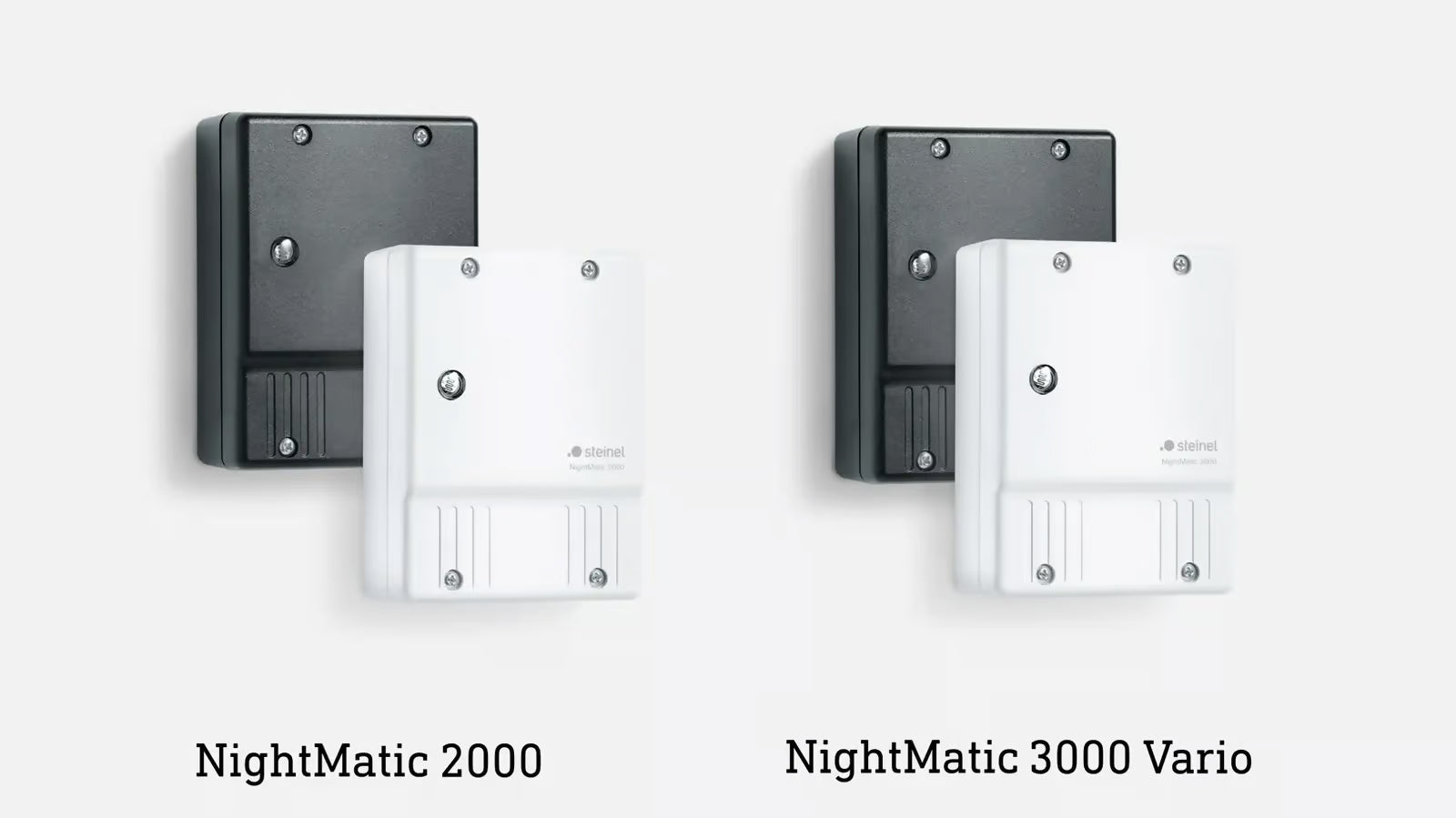

The NightMatic series

Switches the light 'ON' or 'OFF'. All automatically.

It's thundering outside and getting dark. You're sitting snugly in the living-room, waiting for your guests. Who'd want to go out and turn the outside light on? The NightMatic 2000 reliably does this for you – whether it's raining, snowing, blowing a gale or you simply have something better to do. Of course, the light-level threshold at which the sensor responds and turns the light 'ON' is defined by no other than you yourself.



The NightMatic series

NightMatic 2000:

  • Twilight setting (2–30 lux)
  • Manual adjustment via potentiometer (controller)
  • Available in the colours white and black

NightMatic 3000 Vario:

  • Twilight setting (0.5–10 lux) via Teach function (current brightness value is accepted at the push of a button)
  •  Night economy mode: Light switches off at night for a defined period to save additional energy

Switches the light 'ON' or 'OFF'. All automatically.

It's thundering outside and getting dark. You're sitting snugly in the living-room, waiting for your guests. Who'd want to go out and turn the outside light on? The NightMatic 2000 reliably does this for you – whether it's raining, snowing, blowing a gale or you simply have something better to do. Of course, the light-level threshold at which the sensor responds and turns the light 'ON' is defined by no other than you yourself.



The NightMatic series

NightMatic 2000:

  • Twilight setting (2–30 lux)
  • Manual adjustment via potentiometer (controller)
  • Available in the colours white and black

NightMatic 3000 Vario:

  • Twilight setting (0.5–10 lux) via Teach function (current brightness value is accepted at the push of a button)
  •  Night economy mode: Light switches off at night for a defined period to save additional energy
Icon

Twilight switch

Icon

1000 W max.

Icon

IP54

Icon

2 - 30 lux

Icon

energy saving

Icon

manufacture's warranty steinel.de/garantie

Icon

CE

Icon

TüV Nord Baumuster checked

  • Application, place: Outdoors

  • Installation: Surface wiring

  • Version: black

  • Article number: 550318

  • PU1, net weight: 0,121 kg

  • Interconnection via: Cable

  • Package content: 1

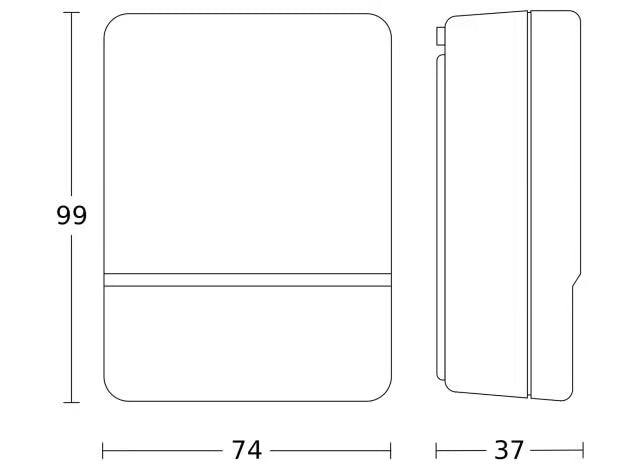

Product dimension

General

Dimensions (L x W x H)37 x 74 x 99 mm
Manufacturer's Warranty3 years
Settings viaPotentiometers
Versionblack
PU1, EAN4007841550318
TypePhoto-cell controller
Application, placeOutdoors
Application, roomoutdoors, front door, all round the building, terrace / balcony, courtyard & driveway
Colourblack
Colour, RAL9005
Package content1

Fixation / mounting

Includes corner wall mountNo
Installation sitewall
InstallationSurface wiring, Wall

Housing

IP-ratingIP54
Ambient temperaturefrom -20 up to 50 °C
MaterialPlastic

Electrical equipment

Mains power supply230 – 240 V / 50 Hz
Switching output 1, resistive1000 W
Switching output 1, number of LEDs / fluorescent lamps4 pcs.
Fluorescent lamps, uncorrected500 VA
Capacitive load in μF88 µF
Power consumption0,8 W

General information

Article number550318
European Article Number (EAN)4007841550318

Sensor technology

Technology, sensorsLight sensor

Functions

Twilight setting2 – 30 lx
Basic light level functionNo
Main light adjustableNo
Twilight setting TEACHNo
Constant-lighting controlNo

Connection

InterconnectionYes
Type of interconnectionMaster/master
Interconnection viaCable

General information

Product categoryPhotoelectric lighting controller
