Motion detector - Professional Line

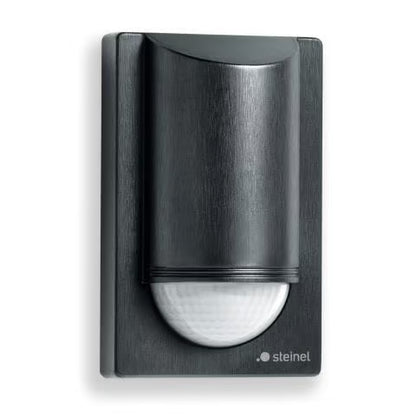

IS 2180 ECO Black

Product Code: 034702

Attractive, clever, efficient. Infrared motion detector IS 2180 ECO for outdoors, ideal for building fronts and properties, medium-sized business and outdoor spaces, ideal installation height 2 m, 180° angle of coverage, reach. 12 m max. or 5 m max. (tangential), selectable time and twilight threshold, manual override, for mounting on outside and inside corners.

Color
Color: Black

Pairs well with

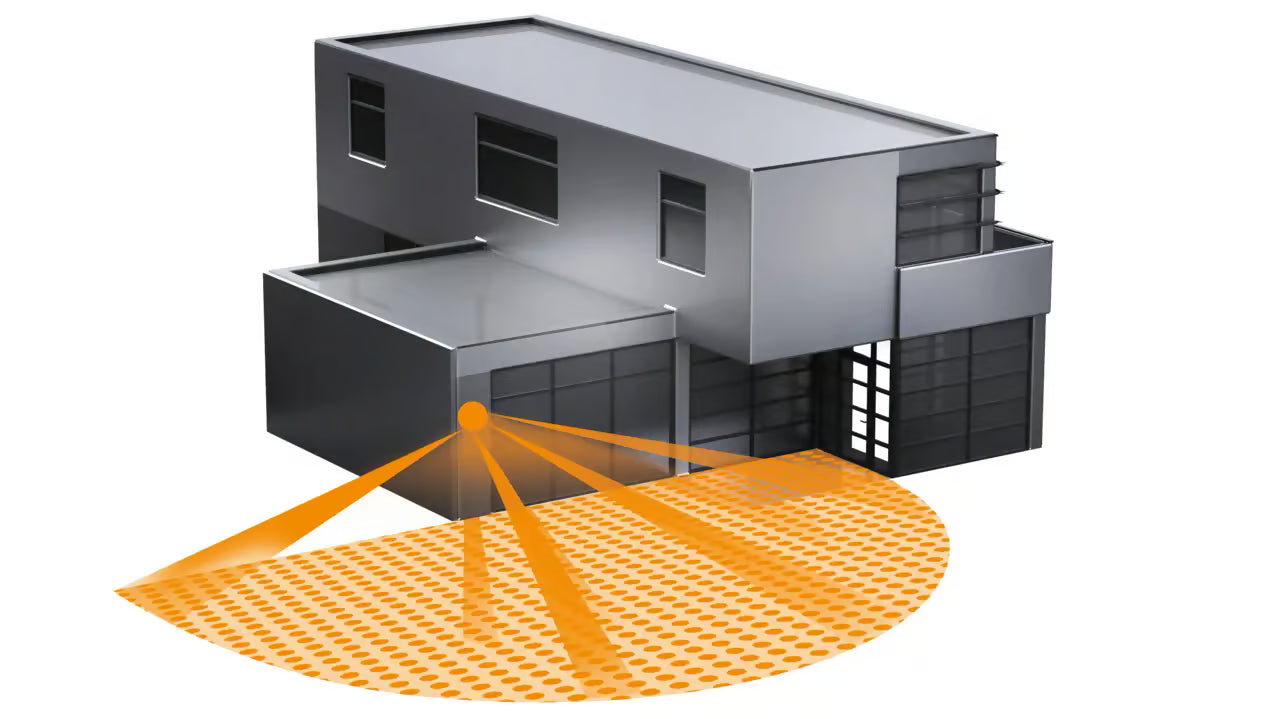

Cuts a fine figure. On the wall and as a guard dog.

Cuts a fine figure. On the wall and as a guard dog.

The ideal choice for watching over areas of up to 200 m². Not only impressing with top-class sensor technology as well, this one also pleases the eye with its modern design that fits perfectly into the overall picture on contemporary architecture. No exception here either: flexibility in adjusting coverage angle and reach.



Cuts a fine figure. On the wall and as a guard dog.

The ideal choice for watching over areas of up to 200 m². Not only impressing with top-class sensor technology as well, this one also pleases the eye with its modern design that fits perfectly into the overall picture on contemporary architecture. No exception here either: flexibility in adjusting coverage angle and reach.



Icon

infrared sensor 180°

Icon

max. 2000 W

Icon

max. Ø 12 m

Icon

IP54

Icon

Ideal 2 m

Icon

2 - 2000 lux

Icon

10 sec - 15 min

Icon

energy saving

Icon

CE

  • Application, place: Outdoors

  • Installation: Surface wiring

  • Detection angle: 180 °

  • Reach, tangential: r = 5 m (39 m²) / r = 12 m (226 m²)

  • Mounting height max.: 4,00 m

  • Version: black

  • Article number: 034702

  • PU1, net weight: 0,2 kg

  • Interconnection via: Cable

  • Package content: 1

Product dimension

General

Dimensions (L x W x H)55 x 78 x 120 mm
Manufacturer's Warranty5 years
Settings viaPotentiometers
With remote controlNo
Versionblack
PU1, EAN4007841034702
TypeMotion detectors
Application, placeOutdoors
Application, roomoutdoors, front door, all round the building, terrace / balcony, courtyard & driveway
Colourblack
Colour, RAL9005
Package content1

Fixation / mounting

Includes corner wall mountNo
Installation sitewall, corner
InstallationSurface wiring, Wall, corner

Housing

IP-ratingIP54
Ambient temperaturefrom -20 up to 50 °C
MaterialPlastic

Electrical equipment

Mains power supply230 – 240 V / 50 Hz
Switching output 1, resistive2000 W
Fluorescent lamps, electronic ballast350 W
Fluorescent lamps, uncorrected500 VA
Fluorescent lamps, series-corrected900 VA
Fluorescent lamps, parallel-corrected500 VA
Switching output 1, low-voltage halogen lamps1000 VA
LED lamps < 2 W100 W
LED lamps > 2 W < 8 W175 W
LED lamps > 8 W350 W
Capacitive load in μF132 µF

General information

Article number034702
European Article Number (EAN)4007841034702
Detection angle180 °
Angle of aperture90 °

Sensor technology

Technology, sensorspassive infrared, Light sensor
Mounting height1,80 – 4,00 m
Mounting height max.4,00 m
Optimum mounting height2 m
Sneak-by guardYes
Capability of masking out individual segmentsYes
Electronic scalabilityNo
Mechanical scalabilityNo
Reach, radialr = 1.5 m (4 m²) / r = 3 m (14 m²)
Reach, tangentialr = 5 m (39 m²) / r = 12 m (226 m²)
Switching zones504 switching zones

Functions

Twilight setting2 – 2000 lx
Time setting10 s – 15 Min.
Basic light level functionNo
Main light adjustableNo
Twilight setting TEACHNo
Constant-lighting controlNo

Connection

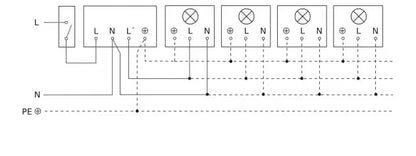

InterconnectionYes
Type of interconnectionMaster/master
Interconnection viaCable

General information

Product categoryMotion detector
