Motion detector - Professional Line

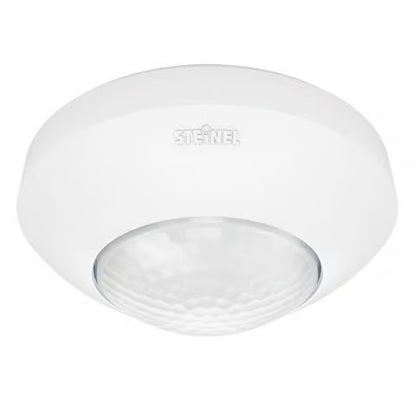

IS 2360 DE ECO 8m

Name: IS 2360 DE ECO 8m
Brand: Steinel Australia
Availability: OutOfStock

Intelligent technology for installation. Infrared wall sensor IS 2360 DE ECO, for indoors and out, ideal for installing in projecting roofs and suspended ceilings, 360° angle of coverage, reach can be set up to 8 m in diameter, selectable time and twilight threshold, detection zone can be customised with shrouds.

Product variants

Pairs well with

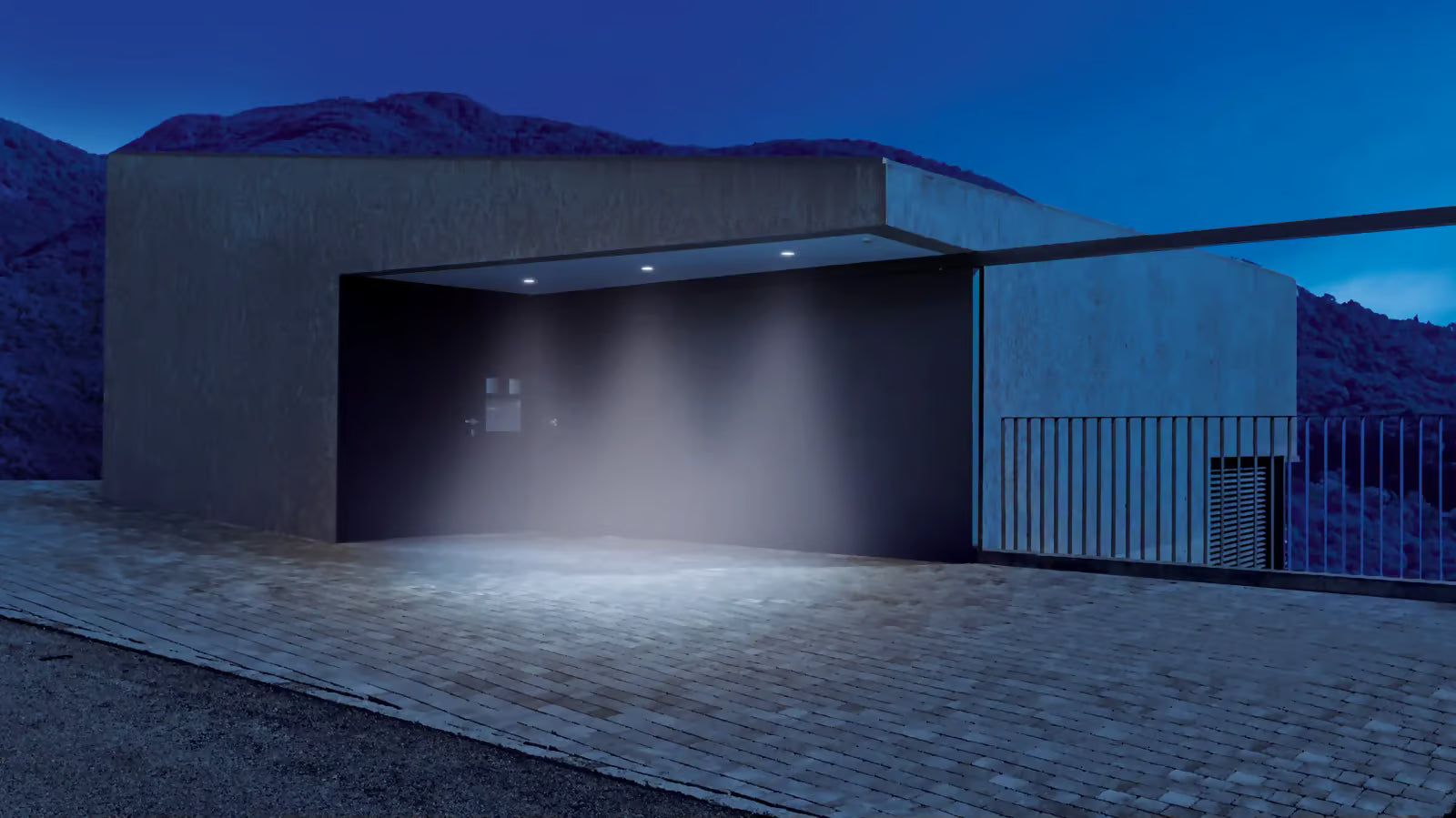

STEINEL inside. Intelligent technology for installation.

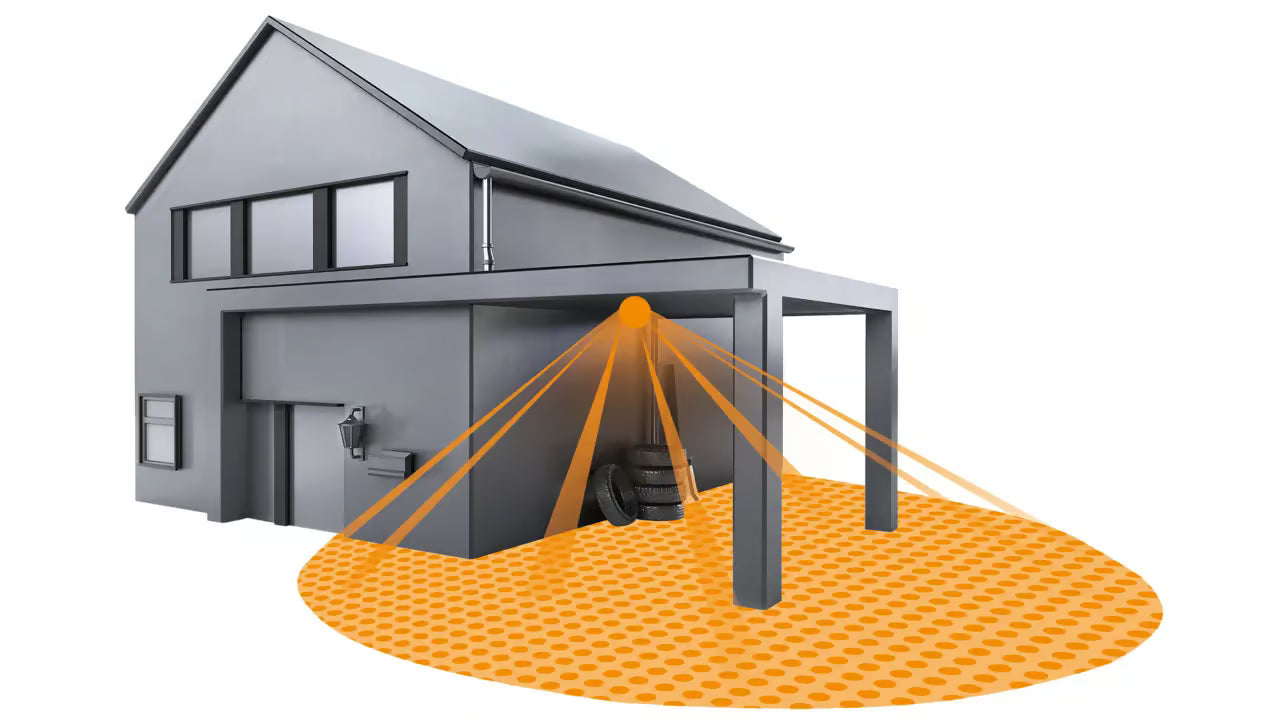

The perfect infrared sensor for installing in projecting roofs and suspended ceilings. The IS 2360 DE ECO has a reach of up to 8 m in diameter and an impressive 360° angle of coverage. The detection zone can be adjusted where necessary by using shrouds.

STEINEL inside. Intelligent technology for installation.

The perfect infrared sensor for installing in projecting roofs and suspended ceilings. The IS 2360 DE ECO has a reach of up to 8 m in diameter and an impressive 360° angle of coverage. The detection zone can be adjusted where necessary by using shrouds.

infrared sensor 360°

max. 4 m

1000 W max.

IP54

2 - 2000 lux

8 sec - 35 min

energy saving

manufacturer's warranty steinel.de/garantie

CE

Application, place: Outdoors, Indoors
Installation: In-ceiling installation
Detection angle: 360 °
Reach, tangential: Ø 8 m (50 m²)
Mounting height max.: 4,00 m
Version: white
PU1, net weight: 0,14 kg
Interconnection via: Cable

General

Dimensions (Ø x H)	78 x 89 mm
With motion detector	Yes
Manufacturer's Warranty	5 years
Settings via	Potentiometers
With remote control	No
Version	white
Type	Motion detectors
Application, place	Outdoors, Indoors
Application, room	corridor / aisle, changing room, function room / ancillary room, kitchenette, stairwell, WC / washroom, outdoors, front door, all round the building, terrace / balcony, Indoors
Colour	white
Colour, RAL	9010

Fixation/ mounting

Includes corner wall mount	No
Installation site	ceiling
Installation	In-ceiling installation, Ceiling

Housing

IP-rating	IP54
Protection class	II
Ambient temperature	from -20 up to 40 °C
Material	Plastic

Electrical equipement

Mains power supply	220 – 240 V / 50 – 60 Hz
Fluorescent lamps, electronic ballast	350 W
Fluorescent lamps, uncorrected	500 VA
Fluorescent lamps, series-corrected	500 VA
Fluorescent lamps, parallel-corrected	500 VA
Switching output 1, low-voltage halogen lamps	1000 VA
LED lamps < 2 W	100 W
LED lamps > 2 W < 8 W	175 W
LED lamps > 8 W	350 W
Capacitive load in μF	132 µF

General information

Detection angle	360 °
Angle of aperture	180 °

Sensor technology

Technology, sensors	passive infrared, Light sensor
Mounting height	2,2 – 4 m
Mounting height max.	4,00 m
Optimum mounting height	2,5 m
Sneak-by guard	Yes
Capability of masking out individual segments	Yes
Electronic scalability	No
Mechanical scalability	No
Reach, radial	Ø 4 m (13 m²)
Reach, tangential	Ø 8 m (50 m²)
Switching zones	304 switching zones
Cover material	shrouds

Functions

Twilight setting	2 – 2000 lx
Time setting	8 s – 35 Min.
Basic light level function	No
Main light adjustable	No
Twilight setting TEACH	No
Constant-lighting control	No

Connection

Interconnection	Yes
Type of interconnection	Master/master
Interconnection via	Cable

General information

Product category

Motion detector
