24V-Garden Accessory

Power Supply 24V 35 W

Product Code: 089252

Your garden. Your light. With the 24V garden lighting system, you can make your outdoor area shine. Simply connect the light, cable and power supply unit and set via the STEINEL Connect app.

  • Reliably powers all connected 24V luminaires up to max. 35W and a maximum system length of 30 m
  • Easy commissioning via standard 230 V socket
  • Plug & Play: simple connection without tools or technical knowledge
  • Compatible with all components of the 24V garden lighting system
  • Robust and reliable: suitable for year-round outdoor use thanks to IP67 (power supply IP44)
  • 2 outputs: for flexible system expansion (including cap for unused output)
  • On both sides of the power supply, there is a 0.75 m cable

Pairs well with
The central power source for your lighting system.

The central power source for your lighting system.

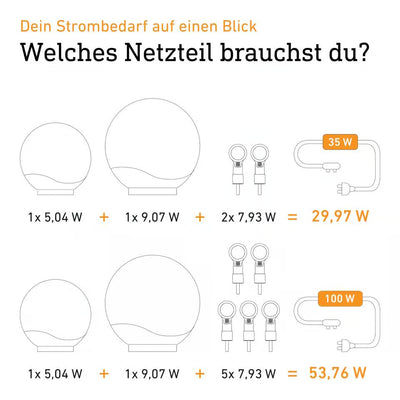

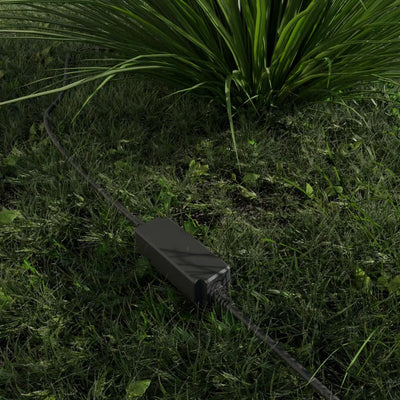

The power supply unit forms the centrepiece of your 24V garden lighting system. It is simply connected to a conventional 230V socket and reliably supplies all connected lights with power. Thanks to Plug & Play, the system can be expanded easily and as required - with matching cables in various lengths and different connectors. The power supply unit is available in two versions with 35W or 100W output - for small accents or large lighting scenarios.

The central power source for your lighting system.

The power supply unit forms the centrepiece of your 24V garden lighting system. It is simply connected to a conventional 230V socket and reliably supplies all connected lights with power. Thanks to Plug & Play, the system can be expanded easily and as required - with matching cables in various lengths and different connectors. The power supply unit is available in two versions with 35W or 100W output - for small accents or large lighting scenarios.

Icon

35 W Power

Icon

Plug & Play - easy to install

Icon

Low-voltage system

Icon

2 Way Out

Icon

Mains Plug IP44

Icon

Power Supply IP67

Icon

CE

Icon

CE

Icon

manufacture's warranty steinel.de/garantie

  • Application, place: Outdoors

  • Article number: 089252

  • PU1, net weight: 0,425 kg

  • Package content: 1

Product dimension

General

Dimensions (L x W x H)110 x 40 x 30 mm
Manufacturer's Warranty3 years
Version35 W
PU1, EAN4007841089252
Application, placeOutdoors
Application, roomoutdoors, garden, terrace / balcony
Colourblack
Package content1
Cord length1,5 m

Housing

IP-ratingIP44
Protection classII
Ambient temperaturefrom -20 up to 40 °C
Housing materialPlastic

Electrical equipement

Anzahl der Ausgänge2
Geeignet für KonstantspannungYes
Geeignet für KonstantstromNo
Ausgangsleistung35 W
Ausgangsstrom1,45 mA
Ausgangsspannung24 V

General information

Article number089252
European Article Number (EAN)4007841089252

General information

Product category24V-Garden Accessory

Data sheet (PDF, 913 KB)

Start Downloading
