Photoelectric lighting controller - Professional Line

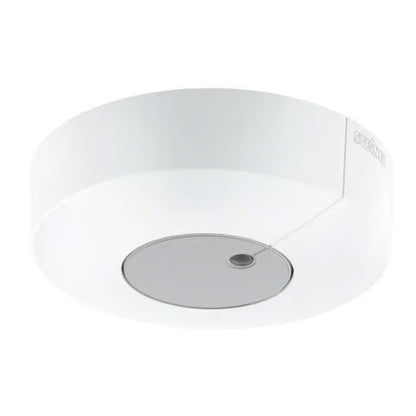

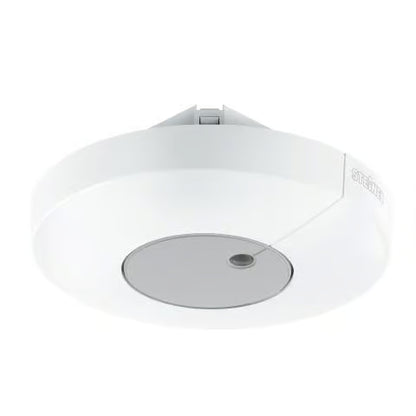

Light Sensor Dual round / KNX

Product Code: 058340

Light measurement in perfection. The Light Sensor Dual photo-cell controller with KNX interface measures directed and diffuse light, watches over areas below the sensor and measures the room brightness. Combining the measurement results reduces error influences. Available either in round or square surface-mounted and concealed version.

Pairs well with

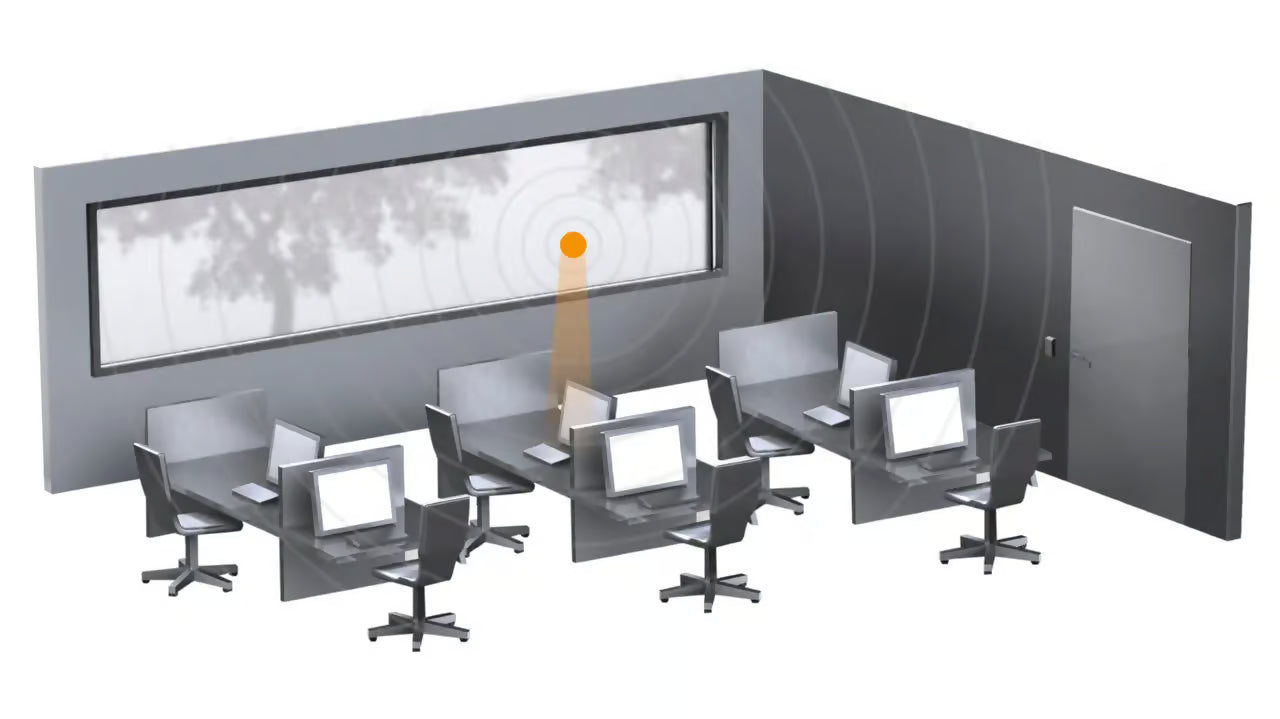

The duality of light measurement.
The duality of light measurement.

The duality of light measurement.

No matter whether directed or diffuse measurements are needed - both work with the Light Sensor Dual! The challenge must not be underestimated. To obtain usable information on the lighting situation in a room, it is not sufficient to simply determine the general brightness. It is important to use a combination of measuring the light level at the desk, for example, and determining diffuse room brightness. This way, errors can be ruled out for better lighting control. And the STEINEL Light Sensor Dual is simply perfect for this.



The duality of light measurement.

No matter whether directed or diffuse measurements are needed - both work with the Light Sensor Dual! The challenge must not be underestimated. To obtain usable information on the lighting situation in a room, it is not sufficient to simply determine the general brightness. It is important to use a combination of measuring the light level at the desk, for example, and determining diffuse room brightness. This way, errors can be ruled out for better lighting control. And the STEINEL Light Sensor Dual is simply perfect for this.



The duality of light measurement.

No matter whether directed or diffuse measurements are needed - both work with the Light Sensor Dual! The challenge must not be underestimated. To obtain usable information on the lighting situation in a room, it is not sufficient to simply determine the general brightness. It is important to use a combination of measuring the light level at the desk, for example, and determining diffuse room brightness. This way, errors can be ruled out for better lighting control. And the STEINEL Light Sensor Dual is simply perfect for this.



The duality of light measurement.

No matter whether directed or diffuse measurements are needed - both work with the Light Sensor Dual! The challenge must not be underestimated. To obtain usable information on the lighting situation in a room, it is not sufficient to simply determine the general brightness. It is important to use a combination of measuring the light level at the desk, for example, and determining diffuse room brightness. This way, errors can be ruled out for better lighting control. And the STEINEL Light Sensor Dual is simply perfect for this.



Icon

Twilight switch + eco-mode

Icon

KNX

Icon

IP20

Icon

2 - 1000 lux

Icon

ideal 4 m

Icon

CE

Icon

manufacturer's warranty steinel.de/garantie

  • Application, place: Outdoors, Indoors

  • Installation: Concealed wiring

  • Detection angle: 4,00 m

  • Version: KNX - concealed, rd.

  • Article number: 058340

  • PU1, net weight: 0,125 kg

  • Interconnection via: KNX bus

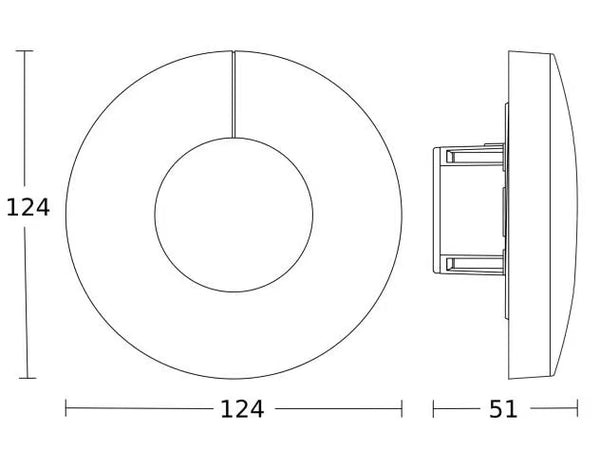

Product dimension

General

Dimensions (Ø x H)124 x 51 mm
Manufacturer's Warranty5 years
Settings viaETS software, Remote control, Bus, Smart Remote
VersionKNX - concealed, rd.
PU1, EAN4007841058340
TypeConstant-lighting controller
Application, placeOutdoors, Indoors
Application, roomclassroom, one-person office, open-plan office, high-bay warehouse, conference room / meeting room, Indoors
Colourwhite
Colour, RAL9003

Fixation / mounting

Includes corner wall mountNo
Installation sitewall, ceiling
InstallationConcealed wiring, Wall, Ceiling

Housing

IP-ratingIP20
Ambient temperaturefrom -20 up to 50 °C

Electrical equipment

Power supply, detailKNX bus
With bus couplingYes

General information

Article number058340
European Article Number (EAN)4007841058340
Rated current12,5 mA

Sensor technology

Mounting height2,00 – 4,00 m
Mounting height max.4,00 m

Functions

Twilight setting2 – 1000 lx
Basic light level functionYes
Main light adjustable0 - 100 %
Twilight setting TEACHYes
Constant-lighting controlYes
KNX functionsLight output 2x, Light level, Constant-lighting control, Photo-cell controller, Logic gate

Connection

InterconnectionYes
Type of interconnectionMaster/master, Master/slave
Interconnection viaKNX bus

General information

Product categoryPhotoelectric lighting controller
