Light sensor - Professional Line

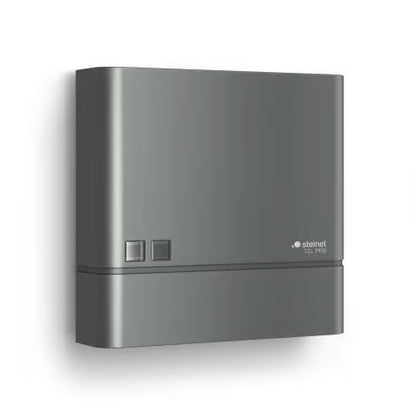

TCL PRO Anthracite

Product Code: 089153

  • Photo-cell controller for automatic night-time illumination of house fronts, gardens, shop windows and other areas
  • Straight, flat design made of UV-resistant material
  • Wireless networking via Bluetooth and easy setting via STEINEL Connect App
  • Thanks to the brightness sensor, the light comes on automatically at dusk - and goes off again at dawn
  • Functions: Individual time settings via timer, night-economy mode

Pairs well with
The safeguard for time-based automation.

Sensors integrated in the Bluetooth network.

STEINEL sensors show how to use energy intelligently. The technologically innovative and pioneering products maximise energy efficiency. Integrated into the Connected Lighting System, the maximum potential of building automation can be utilised.

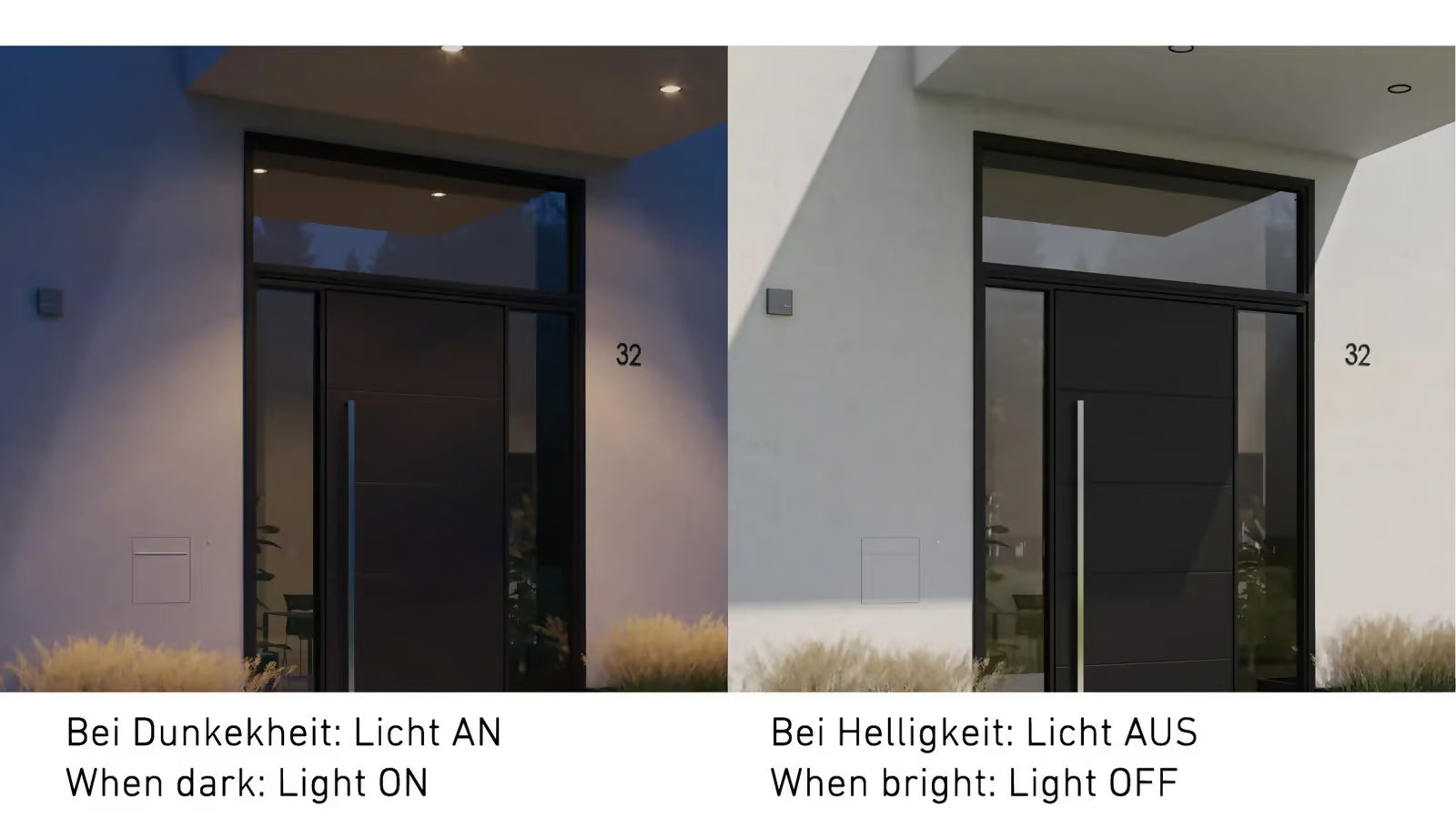

The safeguard for time-based automation.

This timer never runs out of time thanks to the Real Time Clock. One year always has 31,536,000 seconds. A 7-day battery buffer ensures that the system continues to run smoothly even in the event of a power failure. The TCL PRO has a light sensor and can transmit the lux values to the system via Bluetooth Mesh. A perfect network sensor for safeguarding time-based automation.

Sensors integrated in the Bluetooth network.

STEINEL sensors show how to use energy intelligently. The technologically innovative and pioneering products maximise energy efficiency. Integrated into the Connected Lighting System, the maximum potential of building automation can be utilised.

The safeguard for time-based automation.

This timer never runs out of time thanks to the Real Time Clock. One year always has 31,536,000 seconds. A 7-day battery buffer ensures that the system continues to run smoothly even in the event of a power failure. The TCL PRO has a light sensor and can transmit the lux values to the system via Bluetooth Mesh. A perfect network sensor for safeguarding time-based automation.

Icon

15 lux

Icon

IP54

Icon

connectable via bluetooth

Icon

CE

Icon

energy saving

Icon

CE

  • Application, place: Outdoors

  • Installation: Surface wiring

  • Mounting height max.: 4,00 m

  • Version: Anthracite

  • Article number: 089153

  • PU1, net weight: 0,125 kg

  • Interconnection via: Bluetooth Mesh

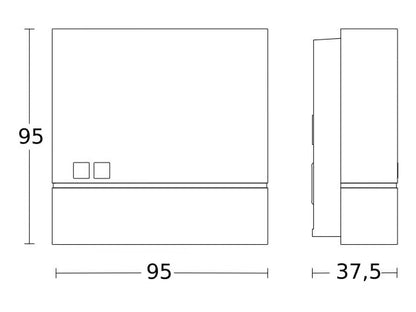

Product dimension

General

Dimensions (L x W x H)38 x 95 x 95 mm
With motion detectorNo
Manufacturer's Warranty5 years
Settings viaBluetooth Mesh, App, Smartphone
With remote controlNo
VersionAnthracite
PU1, EAN4007841089153
TypePhoto-cell controller
Application, placeOutdoors
Application, roomoutdoors, front door, courtyard & driveway, Indoors, all round the building, terrace / balcony
ColourAnthracite

Fixation/ mounting

Installation sitewall
InstallationSurface wiring, Wall

Housing

IP-ratingIP54
Ambient temperaturefrom -20 up to 40 °C
MaterialPlastic

Electrical equipement

Mains power supply220 – 240 V / 50 – 60 Hz
Switching output 1, resistive1000 W
Power consumption0,5 W

General information

Article number089153
European Article Number (EAN)4007841089153

Sensor technology

Technology, sensorsOther
Mounting height1,80 – 4,00 m
Mounting height max.4,00 m
Optimum mounting height2 m

Functions

Twilight setting1 – 1000 lx
Basic light level functionNo
Twilight setting TEACHYes
Constant-lighting controlNo

Connection

InterconnectionYes
Type of interconnectionMaster/master, Master/slave
Interconnection viaBluetooth Mesh

General information

Product categoryLight sensor
