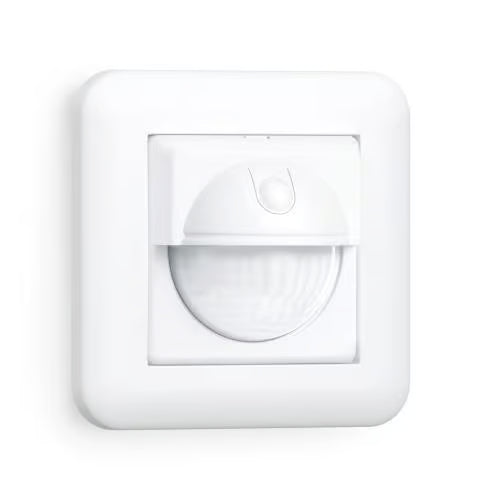

IR 180 UP easy

Product Code: 055790

Infrared motion detector with 180° detection angle and up to 8 m detection range
For flush-mounted wall installation indoors (IP 20), for easy retrofitting to automatic light in new and existing buildings (For 2- and 3-wire installation)
Made of UV-resistant plastic for a long service life
Stepless adjustment of time (5 sec. - 30 min.) and switch-on brightness (2-1000 lux), teach function, push-button for use as conventional light switch
Reliably switches any light source with a total of max. 200 W switching load (LED light sources max. 160 W/50 pcs.)
Incl. mounting accessories - plastic-free packaging

Product variants

The new universal wizard.

It is great when things simply work without great effort. As is the case with the IR 180 UP easy, which can be used to automate light in corridors, stairwells or WCs in next to no time. Simply exchange with the existing flush-mounted switch. Works every time - whether as a 2-wire or 3-wire installation. Switches all lamp types. The built-in 180° infrared sensor impresses with a reach of up to 8 m. And thanks to the integrated button, manual switching is possible at any time.

infrared sensor 180°

max. 8 m

long life LED 25.000 h

max. 2000 W

manual switch ON/OFF

IP20

2 - 1000 lux

5 sec - 30 min

energy saving

Application, place: Indoors
Installation: Concealed wiring
Detection angle: 180 °
Reach, tangential: r = 8 m (101 m²)
Mounting height max.: 2,20 m
Version: Concealed wiring
Article number: 055790
PU1, net weight: 0,124 kg

General

Dimensions (L x W x H)	57 x 81 x 81 mm
With motion detector	Yes
Manufacturer's Warranty	3 years
Settings via	Potentiometers
With remote control	No
Version	Concealed wiring
PU1, EAN	4007841055790
Type	Motion detectors
Application, place	Indoors
Application, room	corridor / aisle, function room / ancillary room, kitchenette, stairwell, WC / washroom, Indoors
Colour	white
Colour, RAL	9010

Fixation/ mounting

Includes corner wall mount	No
Installation site	wall
Installation	Concealed wiring, Wall

Housing

IP-rating	IP20
Ambient temperature	from 0 up to 40 °C
Material	Plastic

Electrical equipement

Mains power supply	220 – 240 V / 50 – 60 Hz
Switching output 1, resistive	200 W
Switching output 1, number of LEDs / fluorescent lamps	4 pcs.
Fluorescent lamps, electronic ballast	150 W
Fluorescent lamps, uncorrected	150 VA
Fluorescent lamps, series-corrected	150 VA
Fluorescent lamps, parallel-corrected	150 VA
Switching output 1, low-voltage halogen lamps	200 VA
LED lamps < 2 W	40 W
LED lamps > 2 W < 8 W	100 W
LED lamps > 8 W	160 W
Capacitive load in μF	132 µF

General information

Article number	055790
European Article Number (EAN)	4007841055790
Detection angle	180 °
Angle of aperture	90 °

Sensor technology

Technology, sensors	passive infrared, Light sensor
Mounting height	1,10 – 2,20 m
Mounting height max.	2,20 m
Optimum mounting height	1,1 m
Sneak-by guard	Yes
Capability of masking out individual segments	No
Electronic scalability	No
Mechanical scalability	No
Reach, radial	r = 2 m (6 m²)
Reach, tangential	r = 8 m (101 m²)
Switching zones	96 switching zones

Functions

Twilight setting	2 – 1000 lx
Time setting	5 s – 30 Min.
Basic light level function	No
Main light adjustable	No
Twilight setting TEACH	No
Constant-lighting control	No

Connection

Interconnection

No

General information

Product category

Motion detector
