Presence detector - Professional Line

IR Quattro HD 24m White / COM1 (on/off) / Concealed wiring

Product Code: 002794

Detection no finer! Infrared presence detector Presence Control PRO IR Quattro HD COM1 for indoors, ideal for medium to large-size offices, conference and meeting rooms, classrooms and lecture theatres, sports halls and warehouses, installation height up to 10 m, for switching light 'ON' and 'OFF', 4800 switching zones for the ultimate in detection quality, presence detection over a true 64 m2, square detection zone, mechanically scalable.

Color: White

White
Black

Product variants

Fits on the ceiling. And sees what others dream of.

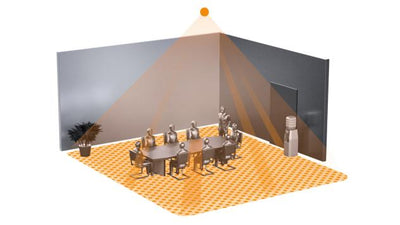

HD isn't just restricted to televisions but from now on also used in presence detectors. Because IR Quattro HD provides extremely high-definition detection. 4,800 switching zones and a square detection footprint with a presence zone covering a true 64 m² leave no margin whatsoever for inadvertent triggering and blind spots. Unique: The presence zone can be mechanically scaled without the slightest loss of quality. This means IR Quattro HD applications in medium to large-size offices, conference and meeting rooms, class rooms and lecture theatres as well as sports halls and warehouses can be planned and configured with absolute precision. Something others can only dream of.

infrared sensor

max. 8m x 8m presence

4800 zones

max. 2000 W

ideal 2,5 - 10 m

indoor sensor

IQ-mode

energy saving

manufacturer's warranty steinel.de/garantie

Application, place: Indoors
Installation: Concealed wiring
Detection angle: 360 °
Reach, tangential: 20 x 20 m (400 m²)
Mounting height max.: 10,00 m
Version: COM1 - concealed white
Article number: 002794
PU1, net weight: 0,184 kg
Interconnection via: Cable
Package content: 1

General

Dimensions (L x W x H)	70 x 120 x 120 mm
Manufacturer's Warranty	5 years

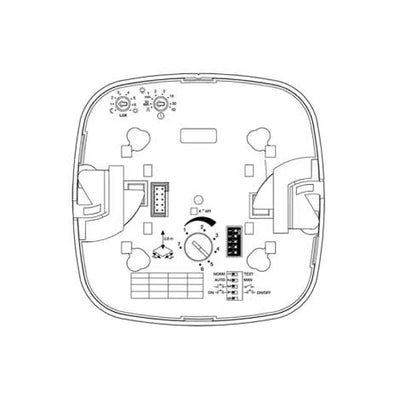

Settings via	Remote control, DIP switches, Potentiometers, Smart Remote
With remote control	No
Version	COM1 - concealed white
PU1, EAN	4007841002794
Type	Presence detector
Application, place	Indoors
Application, room	classroom, lecture hall, open-plan office, high-bay warehouse, production facilities, conference room / meeting room, duty room, recreation room, changing room, sports hall, reception / lobby, multi-storey / underground car park
Colour	white
Colour, RAL	9010
Package content	1

Fixation / mounting

Includes corner wall mount	No
Installation site	ceiling
Installation	Concealed wiring, Ceiling

Housing

IP-rating	IP20
Ambient temperature	from -25 up to 55 °C
Material	Plastic

Electrical equipment

Mains power supply	230 V / 50 – 60 Hz
Fluorescent lamps, electronic ballast	1500 W
Fluorescent lamps, uncorrected	1000 VA
Fluorescent lamps, series-corrected	1000 VA
Fluorescent lamps, parallel-corrected	1000 VA
Switching output 1, low-voltage halogen lamps	2000 VA
LED lamps < 2 W	100 W
LED lamps > 2 W < 8 W	300 W
LED lamps > 8 W	600 W
Capacitive load in μF	176 µF

General information

Article number	002794
European Article Number (EAN)	4007841002794
Detection angle	360 °
Angle of aperture	160 °

Sensor technology

Technology, sensors	passive infrared, Light sensor
Mounting height	2,50 – 10,00 m
Mounting height max.	10,00 m
Optimum mounting height	2,8 m
Sneak-by guard	Yes
Capability of masking out individual segments	No
Electronic scalability	No
Mechanical scalability	Yes
Reach, radial	8 x 8 m (64 m²)
Reach, tangential	20 x 20 m (400 m²)
Reach, presence	8 x 8 m (64 m²)
Switching zones	4800 switching zones

Functions

Functions	Normal / test mode, Semi-/fully automatic, Pushbutton / switch mode, Manual ON / ON-OFF, Constant-lighting control ON-OFF
Twilight setting	10 – 1000 lx
Time setting	30 s – 30 Min.
Basic light level function	No
Main light adjustable	No
Twilight setting TEACH	Yes
Constant-lighting control	No

Connection

Interconnection	Yes
Type of interconnection	Master/master, Master/slave
Interconnection via	Cable
Interconnection, number	max. 10 sensors
