Presence detector - Professional Line

US 360 COM1 / Concealed wiring

Product Code: 007935

Detects without obstructions. 360° ultrasonic presence detector US 360, ideal for offices, conference rooms, store rooms and class rooms. 28 sq.m. presence detection zone, immune to obstacles, envelops objects as opposed to penetrating them, detection regardless of temperature, electronically adjustable reach, COM1 for switching light ON and OFF.

Detects without obstructions. Space-filling and sensitive.

Oddly shaped architecture, partition walls or other obstacles present insurmountable difficulties to some sensors. Yet the US 360's dynamic all-round precision detection capability works with absolute reliability behind objects too. Across a radius of 6 metres all round. Even in extreme temperatures. The space-filling ultrasonic waves make it possible.

Icon

ultrasonic sensor 360°

Icon

max. Ø 6 m presence

Icon

max. 2000 W

Icon

IP20

Icon

ideal 2,5 - 3,5 m

Icon

indoor sensor

Icon

IQ-mode

Icon

Teach mode

Icon

energy saving

  • Application, place: Indoors

  • Installation: Concealed wiring

  • Detection angle: 360 °

  • Reach, tangential: Ø 6 m (28 m²)

  • Mounting height max.: 3,50 m

  • Version: COM1 - Concealed wiring

  • Article number: 007935

  • PU1, net weight: 0,203 kg

  • Interconnection via: Cable

  • Package content: 1

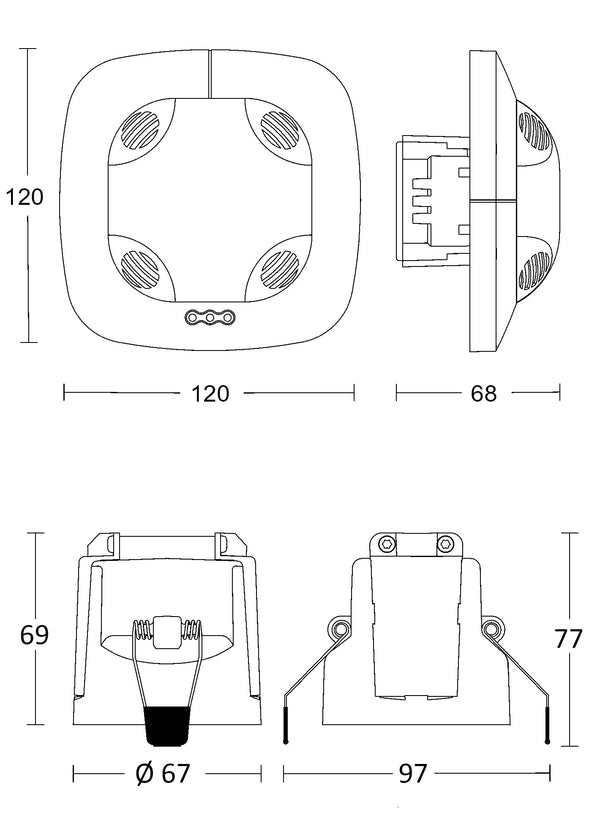

Product dimension

General

Dimensions (L x W x H)67 x 120 x 120 mm
Manufacturer's Warranty5 years
Settings viaRemote control, DIP switches, Potentiometers, Smart Remote
With remote controlNo
VersionCOM1 - Concealed wiring
PU1, EAN4007841007935
TypePresence detector
Application, placeIndoors
Application, roomclassroom, one-person office, open-plan office, conference room / meeting room, duty room, recreation room, function room / ancillary room, stairwell, WC / washroom, Indoors
Colourwhite
Colour, RAL9010
Package content1

Fixation/ mounting

Includes corner wall mountNo
Installation siteceiling
InstallationConcealed wiring, Ceiling

Housing

IP-ratingIP20
Ambient temperaturefrom -25 up to 55 °C
MaterialPlastic

Electrical equipement

Mains power supply230 V / 50 – 60 Hz
Fluorescent lamps, electronic ballast1500 W
Fluorescent lamps, uncorrected1000 VA
Fluorescent lamps, series-corrected1000 VA
Fluorescent lamps, parallel-corrected1000 VA
Switching output 1, low-voltage halogen lamps2000 VA
LED lamps < 2 W100 W
LED lamps > 2 W < 8 W300 W
LED lamps > 8 W600 W
Capacitive load in μF176 µF

General information

Article number007935
European Article Number (EAN)4007841007935
Detection angle360 °
Angle of aperture180 °

Sensor technology

Technology, sensorsUltrasonic, Light sensor
Mounting height2,50 – 3,50 m
Mounting height max.3,50 m
Optimum mounting height2,8 m
Ultrasonic technology40 kHz
Sneak-by guardYes
Capability of masking out individual segmentsNo
Electronic scalabilityYes
Mechanical scalabilityNo
Reach, radialØ 10 m (79 m²)
Reach, tangentialØ 6 m (28 m²)
Reach, presenceØ 6 m (28 m²)

Functions

FunctionsNormal / test mode, Semi-/fully automatic, Pushbutton / switch mode, Manual ON / ON-OFF
Twilight setting10 – 1000 lx
Time setting30 s – 30 Min.
Basic light level functionNo
Main light adjustableNo
Twilight setting TEACHYes
Constant-lighting controlNo

Connection

InterconnectionYes
Type of interconnectionMaster/master, Master/slave
Interconnection viaCable
Interconnection, numbermax. 10 sensors

General information

Product categoryPresence detector
