Sensor-switched LED indoor light - Professional Line

RS PRO S10 SC Singlepack / warm white (3000 K)

Product Code: 081096

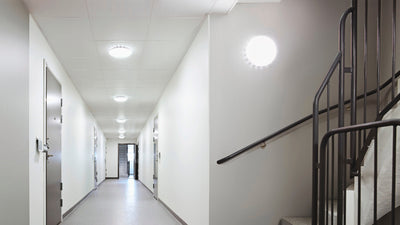

Intelligence is not a question of size. It's a question of inner values. The smartest luminaire in the world, now even better! High-frequency sensor luminaire RS PRO S-series, ideal for office corridors, hallways, toilet facilities, stairwells, including radio networking with other RS PRO S-series, 9,1 W LED, 979 lm, PC cover, 3000 K, 360° detection, range Ø 1 - 8 m continuously adjustable, basic light function, and neighbourhood group function. The S-series can also be operated with direct current, which enables connection to central battery systems. The smaller packaging volume of the multipacks saves material and protects the environment.

Product variants

Pairs well with

RS PRO S10 SC

Singlepack / warm white (3000 K)

Intelligence is not a question of size. It's a question of inner values.

Connected Lighting in the application.

The combination of sensor technology, efficient LED light, networking and intelligent control ensures needs-based switching and creates greater convenience and safety for users. The system is also unbeatably easy to install thanks to tool-free commissioning via the Steinel Connect app. A 5-year manufacturer's guarantee, BEG eligibility and savings of up to 95% on electricity and maintenance costs round off the benefits for everyone involved.

This is how you save.

The savings apply in comparison to using a conventional LED light without motion detector with the same power for an average of 10 hours of continuous light a day. In comparison, the STEINEL LED light with motion detector only lights up for an average of 2 hours at night because the light is only switched on when motion is detected.

Intelligence is not a question of size. It's a question of inner values.

It is flat, puristic and perfectly shaped all round. It is intelligent, energy-efficient, a shining example and equipped with everything that is technically feasible today: 26 W STEINEL LED light system for instantaneous and power-saving light generation, no unintentional switching off ,light running ahead thanks to neighbouring group function, aluminium cooling fins and long service life. The high-frequency sensor detects 360°. With the Bluetooth Mesh radio connection, luminaire groups can be formed wirelessly and effortlessly. Conclusion: the RS PRO S series is more than just a lighting evolution, it is a revolution.

36 years (Ø 4,5h / day)

indoor

3000K warm-white

high frequency sensor 360°

max. 8 m

2 - 2000 lux

connectable via bluetooth

Light source not exchangeable

Control gear not exchangeable

Application, place: Indoors
Installation: Surface wiring
Article number: 081096
PU1, net weight: 1,28 kg
Luminous flux total product: 979 lm
Colour temperature: 3000 K
With motion detector: Yes
Interconnection via: Bluetooth Mesh
Output: 9,1 W
Package content: 1

General

Dimensions (Ø x H)	300 x 71 mm
With lamp	Yes, STEINEL LED system
With motion detector	Yes
Manufacturer's Warranty	5 years
Settings via	App, Bluetooth Mesh
Version	PC warm white
PU1, EAN	4007841081096
Application, place	Indoors
Application, room	corridor / aisle, function room / ancillary room, Indoors, multi-storey / underground car park, reception / lobby
Colour	Silver
Package content	1
Fuse protection B10	46
Fuse protection B16	74
Fuse protection C10	77
Fuse protection C16	122

Fixation/ mounting

Installation site	wall, ceiling
Installation	Surface wiring, Ceiling, Wall

Housing

Impact resistance	IK07
IP-rating	IP20
Protection class	II
Ambient temperature	from -20 up to 40 °C
Housing material	Aluminium
Cover material	PC, opal

Electrical equipement

Mains power supply	220 – 240 V / 50 – 60 Hz
Power consumption	0,38 W
Output	9,1 W
Starting current, maximum	13 A

Sensor technology

Mounting height max.	4,00 m
HF-system	5,8 GHz
Slave modeselectable	Yes
Detection	also through glass, wood and stud walls
Electronic scalability	Yes
Reach, radial	Ø 8 m (50 m²)
Reach, tangential	Ø 8 m (50 m²)
Detection angle	360 °

Luminaire

Photo-cell controller	Yes
Luminous flux total product	979 lm
Total product efficiency	108 lm/W
Colour temperature	3000 K
Colour variation LED	SDCM3
Lamp	LED cannot be replaced
LED cooling system	Passive Thermo Control
Soft light start	Yes
Continuous light	selectable
Lifetime LED according to IEC-62717 (L70)	100.000 h
Lifetime LED according to IEC-62717 (L80)	69.000 h
LED service life according to IES TM-21 (L70)	>60.000 h
Lifetime LED according to IES TM-21 (L80)	>60.000 h
Colour Rendering Index CRI	= 82

General information

Article number	081096
European Article Number (EAN)	4007841081096
Transmitter power	< 1 mW
Basic light level function in per cent	7 – 100 %
Angle of aperture	160 °

Functions

Functions	Motions sensor, Adjustable fade time when switching on and off, DIM function, Free selection of the light value in a luminaire group, Group parameterisation, Semi-/fully automatic, Light sensor, Neighbouring group function, Normal / test mode, Orientation light, Presence detector logic, Encrypted communication
Twilight setting	2 – 2000 lx
Time setting	5 s – 60 Min.
Basic light level function	Yes
Basic light level function, detail	LED effect light
Basic light level function time	1-60 min, all night
Main light adjustable	Yes
Twilight setting TEACH	Yes

Connection

Interconnection	Yes
Interconnection via	Bluetooth Mesh

General information

Product category

Sensor-switched LED indoor light
