Sensor-switched LED floodlight

Spot Garden with motion detector & Bluetooth

Product Code: 058685

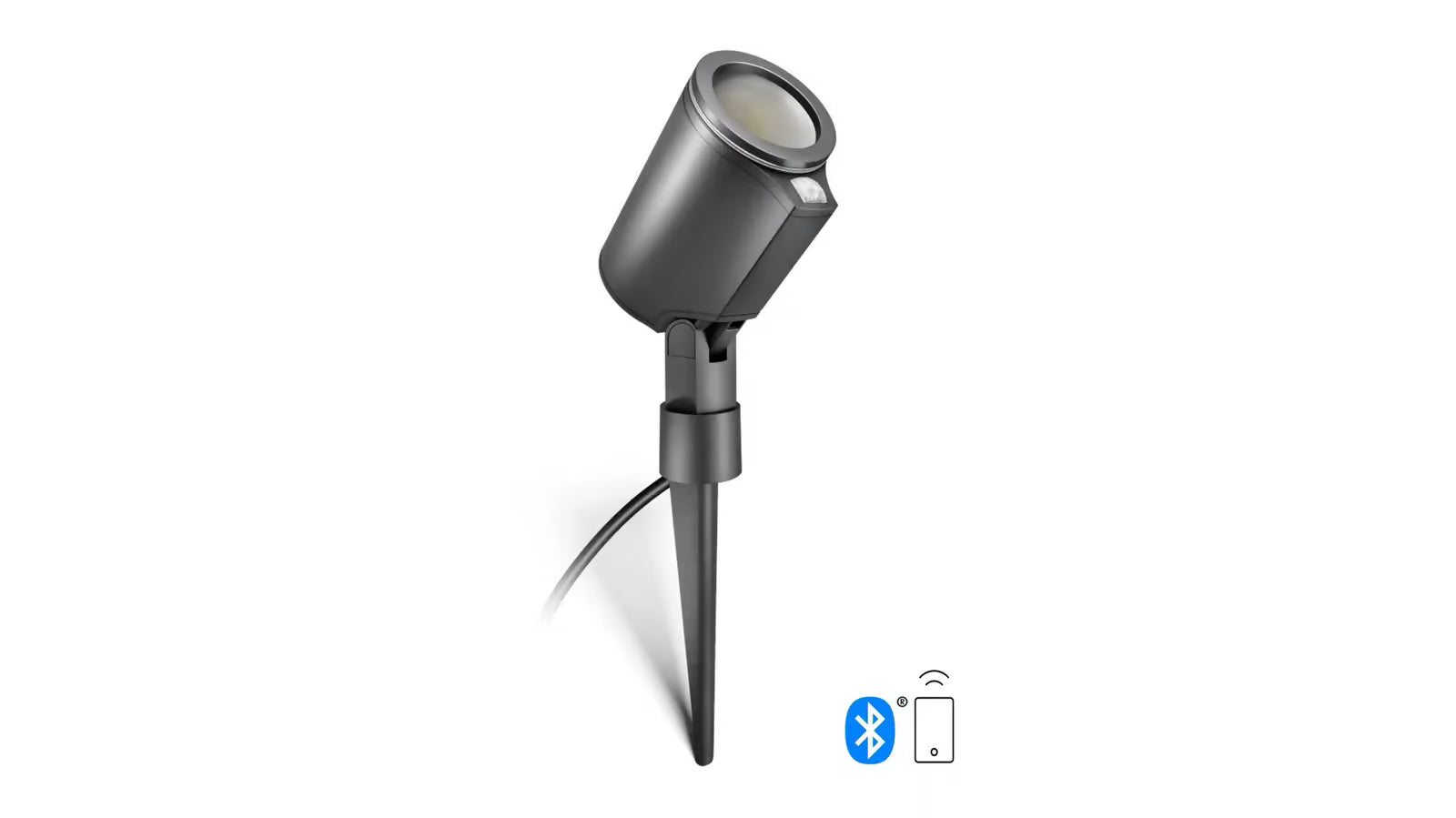

Ground spotlight with motion detector for stylish lighting accents in the garden

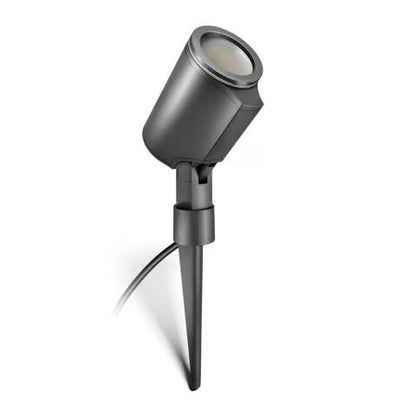

Elegant and puristic design made of high-quality aluminium, spotlight head can be swivelled vertically by 90°
Wireless networking via Bluetooth and easy setting via STEINEL Connect App

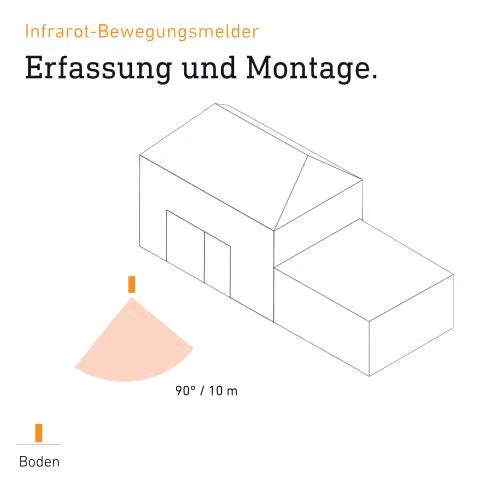

Automatic light thanks to 90° Infrared sensor with up to 10 m detection of movement
Functions: Twilight-controlled light, integrated timer, night economy mode, 4 hours continuous light
Incl. GU-10 LED bulb with warm white light (3000 K) with 512 lm at 7,9 W

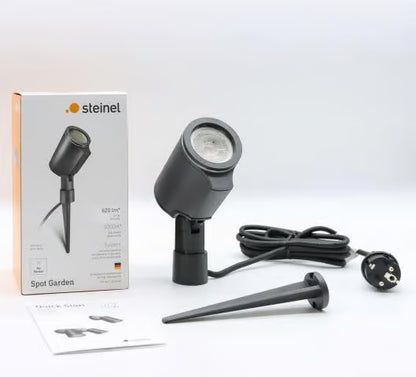

Incl. 2.5 m mains cable and mounting accessories - plastic-free packaging

This product contains a light source ofenergy efficiency class F

Product variants

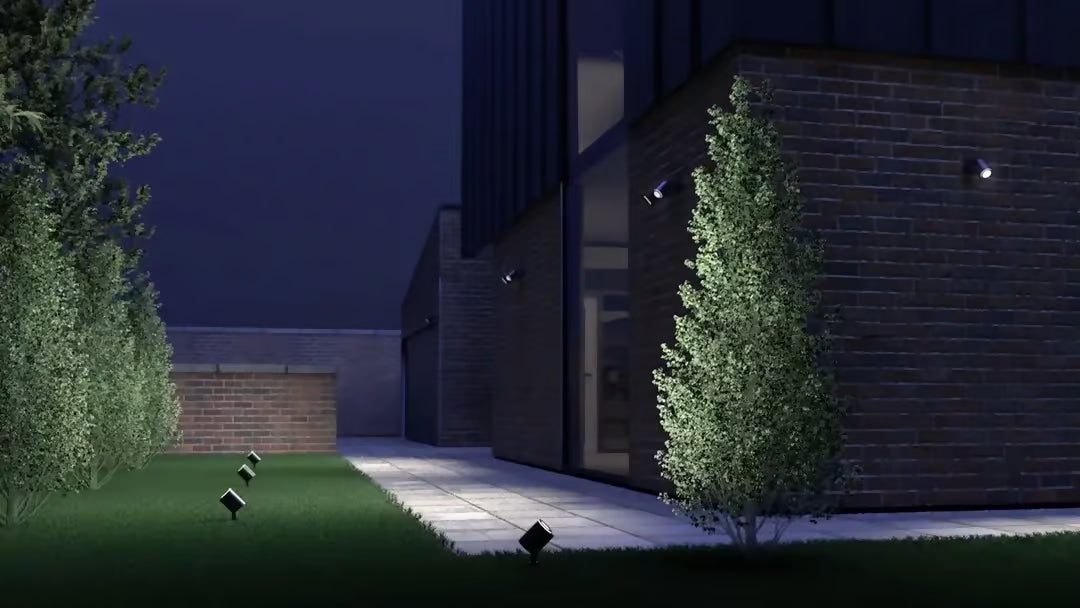

Maximum flexibility. Throughout the garden.

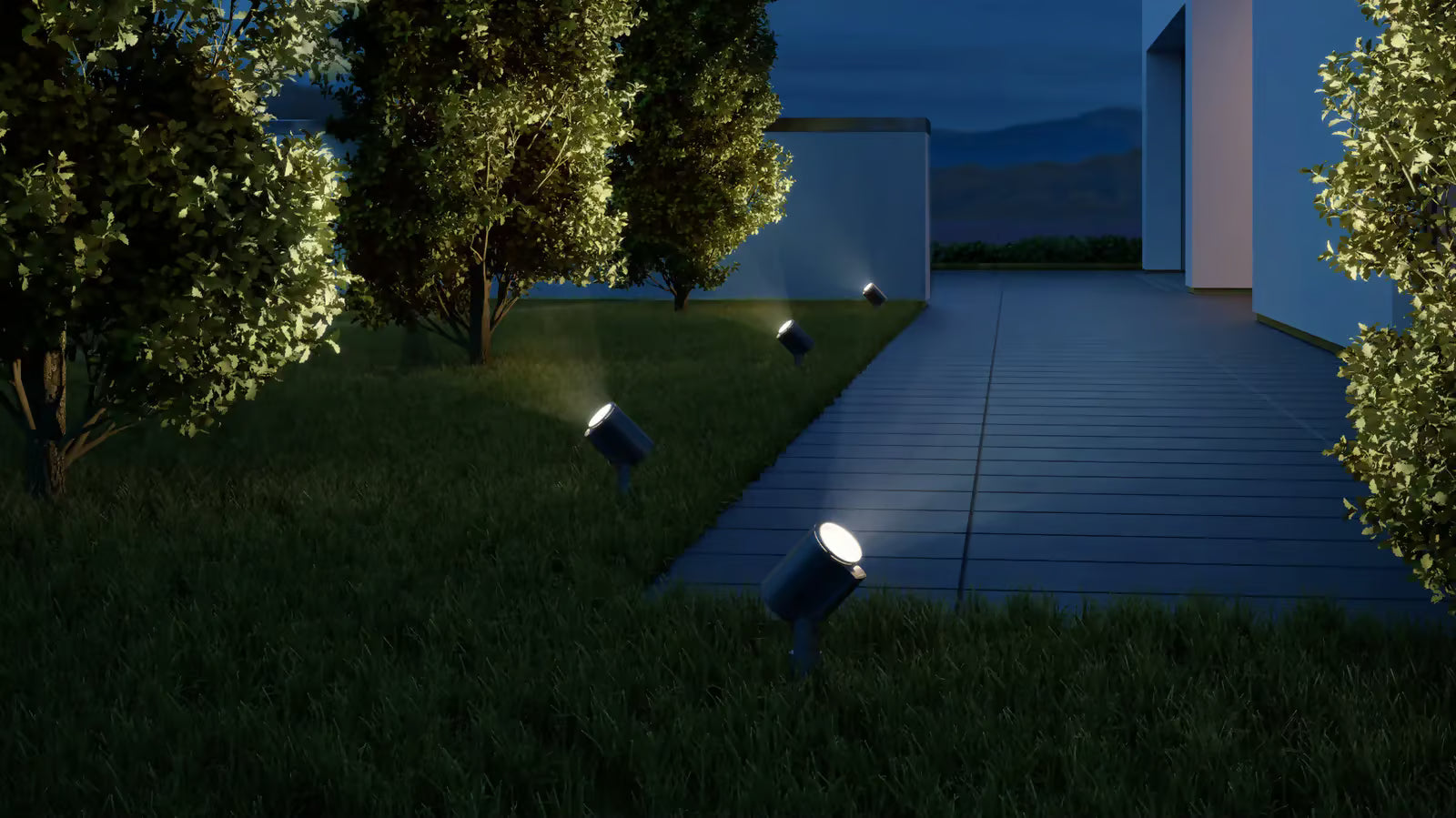

The ideal lighting solution for green spaces all around the building. The "Spot Garden" series of ground spots in clean-cut, modern design is simply pushed into the ground – that's all there is to it. This quickly creates selective lighting statements and illuminates dark areas elegantly and effectively. Available as "Spot Garden N" with light-level sensor, as the "Spot Garden" model without sensor and also in the form of "Spot Garden SC" with innovative infrared sensor (90° detection) with a reach of 10 m. The Connect version also makes it easy to interconnect several spots via Bluetooth without the need for cables. Here, an app also provides convenience in selecting settings and control functions. This means time and twilight settings, ON and OFF times as well as lighting groups can be programmed in a matter of seconds. With mains plug (2.5 m cable length). Lamp (GU-10 LED) included.

20.000 h

3000K warm-white

38°

Infrared sensor 90°

max. 10 m

IP44

2 - 2000 lux (via App)

Light source replaceable by end user

Control gear not exchangeable

Application, place: Outdoors
Installation: Other
Article number: 058685
PU1, net weight: 0,703 kg
Luminous flux total product: 512 lm
Colour temperature: 3000 K
With motion detector: Yes
Interconnection via: Bluetooth
Output: 7,9 W

General

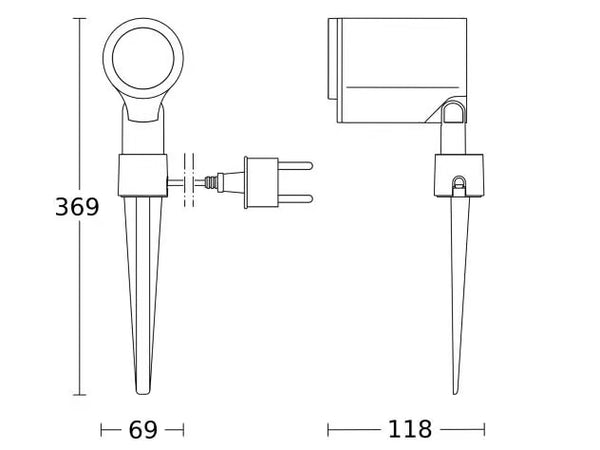

Dimensions (L x W x H)	140 x 69 x 369 mm
With lamp	Yes, LED lamp
With motion detector	Yes
Manufacturer's Warranty	3 years
Settings via	Bluetooth
Version	Sensor Connect
PU1, EAN	4007841058685
Application, place	Outdoors
Application, room	outdoors, garden
Colour	Anthracite

Fixation / mounting

Includes corner wall mount	No
Installation site	Ground spike
Installation	Ground spike

Housing

Impact resistance	IK03
IP-rating	IP44
Protection class	I
Ambient temperature	from -20 up to 40 °C
Housing material	Aluminium
Cover material	Plastic, transparent

Electrical equipment

Mains power supply	220 – 240 V / 50 – 60 Hz
Output	7,9 W

Sensor technology

Slave mode selectable	Yes
Sneak-by guard	No
Capability of masking out individual segments	No
Electronic scalability	No
Mechanical scalability	No
Reach, radial	r = 2 m (3 m²)
Reach, tangential	r = 10 m (79 m²)
Detection angle	90 °

Luminaire

Photo-cell controller	Yes
Luminous flux total product	512 lm
Measured luminous flux (360°)	512 lm
Total product efficiency	64,8 lm/W
Colour temperature	3000 K
Colour variation LED	SDCM5
Lamp	LED can be replaced
Service life LED L70B50 (25°)	> 20000 h
Soft light start	No
Continuous light	selectable, 4h
Colour Rendering Index CRI	= 81

Functions

Functions	Manual ON / ON-OFF, Timer, Master/slave override
Twilight setting	2 – 2000 lx
Time setting	5 s – 60 Min.
Basic light level function	No
Main light adjustable	No
Twilight setting TEACH	Yes

Connection

Interconnection	Yes
Interconnection via	Bluetooth

General information

Article number	058685
European Article Number (EAN)	4007841058685
Product category	Sensor-switched LED floodlight
