LED floodlight without sensor

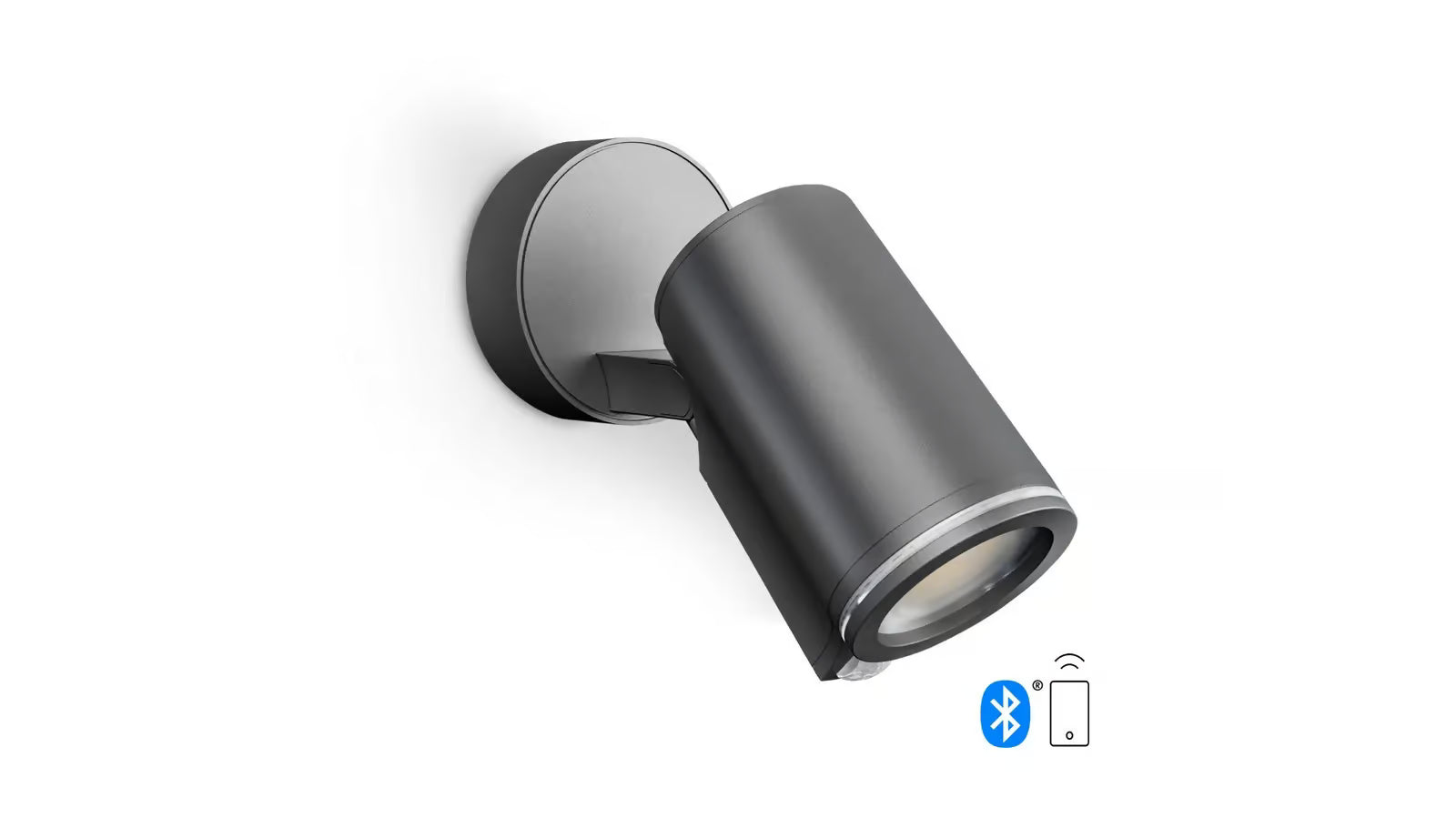

Spot ONE SC with motion detector & Bluetooth

Product Code: 058630

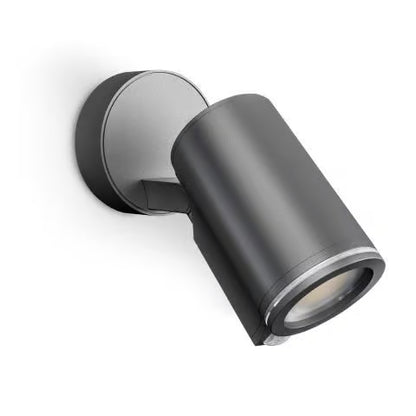

  • Swivel-mounted wall spotlight with motion detector for stylish lighting accents around the house
  • Elegant and puristic design made of high-quality aluminium, spotlight head can be swivelled 180° horizontally and 90° vertically
  • Wireless networking via Bluetooth and easy setting via STEINEL Connect App

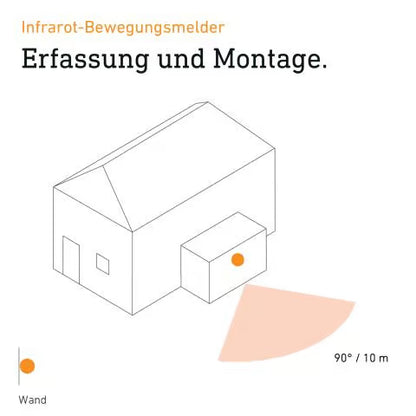

  • Automatic light thanks to 90° Infrared sensor with up to 10 m detection of movement
  • Functions: Twilight-controlled light, integrated timer, night economy mode, 4 hours continuous light
  • Incl. GU-10 LED bulb with warm white light (3000 K) with 512 lm at 7,9 W

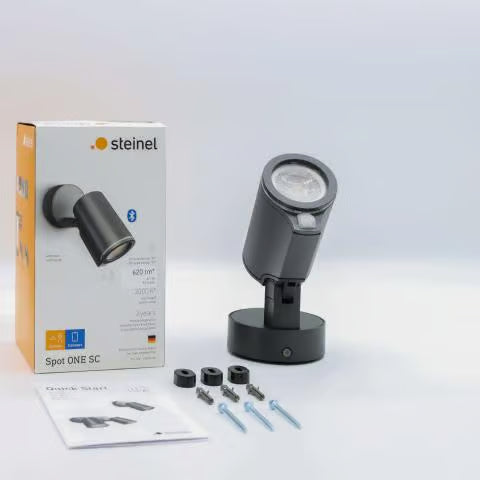

  • Incl. mounting accessories - plastic-free packaging

This product contains a light source ofenergy efficiency class F

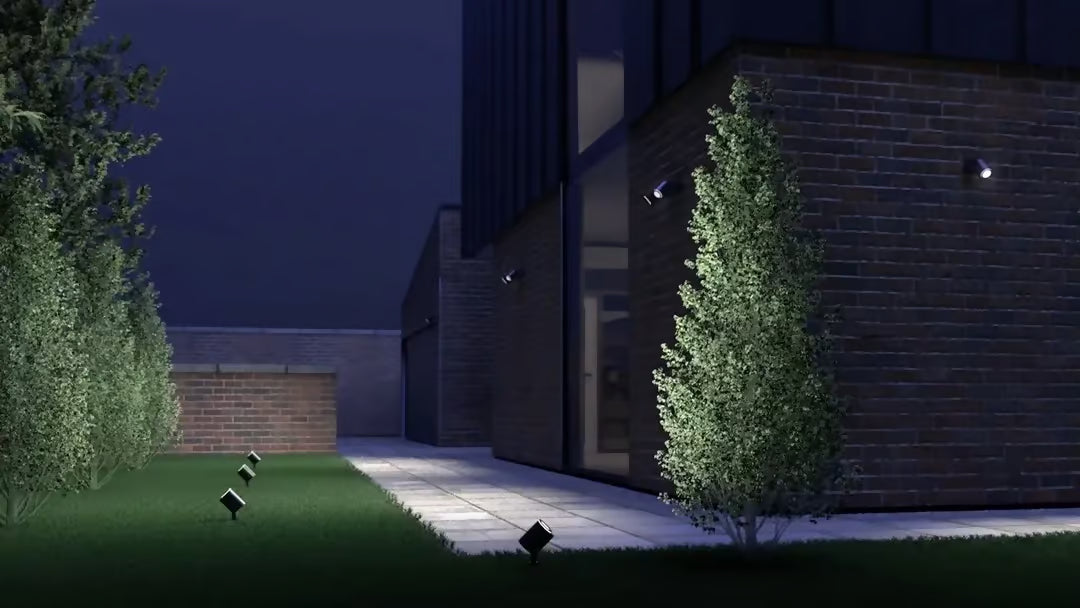

Perfect detection. Targeted illumination.

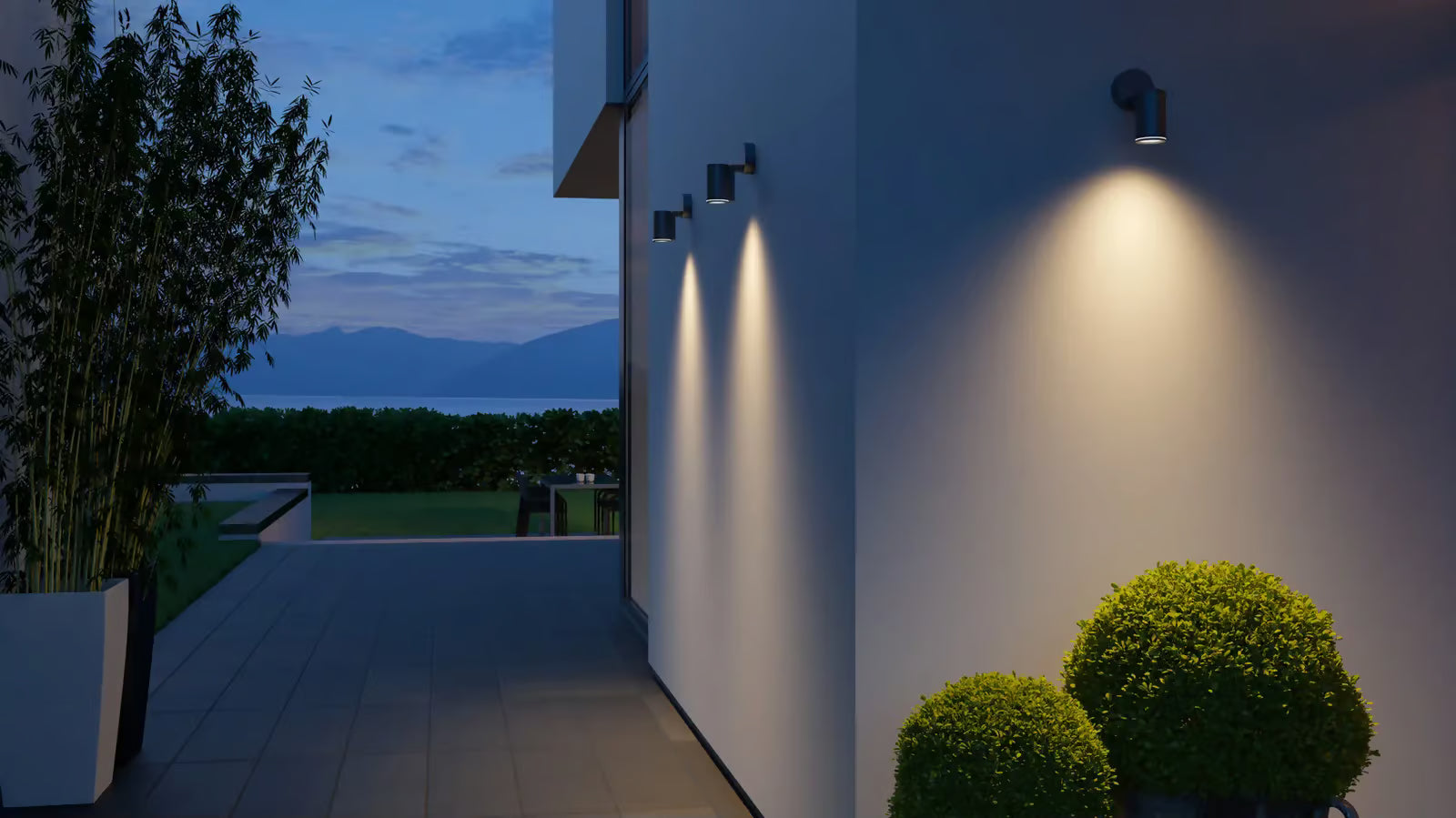

The "Spot ONE" spotlight series scores with purist design and makes stylist statements. The sturdy spot heads turn (180°) and tilt (90°), can be aimed with effortless ease to suit any situation and, with a light output of 512 lm and warm-white 3000 K, provide perfect illumination all around the building. The attractive spotlight series is available in three versions: in the classic "Spot ONE S" sensor-switched version with infrared motion detector with a 90° angle of coverage and 10 m reach. In the "Spot ONE SC" version, which is fitted with identical sensor, but also permits convenient wireless adjustment, interconnection and function control via Bluetooth and app. And as the "Spot ONE" model without sensor. In each case complete with the replaceable GU-10 LED lamp.



Icon

20.000 h

Icon

3000K warm-white

Icon

38°

Icon

Infrared sensor 90°

Icon

max. 10 m

Icon

IP44

Icon

2 - 2000 lux (via App)

Icon

Light source replaceable by end user

Icon

Control gear not exchangeable

  • Application, place: Outdoors

  • Installation: Surface wiring

  • Article number: 058630

  • PU1, net weight: 0,496 kg

  • Luminous flux total product: 512 lm

  • Colour temperature: 3000 K

  • With motion detector: Yes

  • Interconnection via: Bluetooth

  • Output: 7,9 W

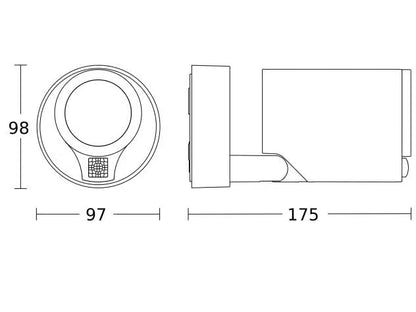

Product dimension

General

Dimensions (L x W x H)175 x 97 x 98 mm
With lampYes, LED lamp
With motion detectorYes
Manufacturer's Warranty3 years
Settings viaBluetooth
Versionwith motion detector & Bluetooth
PU1, EAN4007841058630
Application, placeOutdoors
Application, roomoutdoors, all round the building, terrace / balcony, courtyard & driveway
ColourAnthracite

Fixation / mounting

Includes corner wall mountNo
Installation sitewall
InstallationWall, Surface wiring

Housing

Impact resistanceIK03
IP-ratingIP44
Protection classI
Ambient temperaturefrom -20 up to 40 °C
Housing materialAluminium
Cover materialPlastic, transparent

Electrical equipment

Mains power supply220 – 240 V / 50 – 60 Hz
Output7,9 W

Sensor technology

Mounting height max.2,50 m
Slave mode selectableYes
Sneak-by guardNo
Capability of masking out individual segmentsNo
Electronic scalabilityNo
Mechanical scalabilityNo
Reach, radialr = 2 m (3 m²)
Reach, tangentialr = 10 m (79 m²)
Optimum mounting height2 m
Detection angle90 °

Luminaire

Photo-cell controllerYes
Luminous flux total product512 lm
Measured luminous flux (360°)512 lm
Total product efficiency64,8 lm/W
Colour temperature3000 K
Colour variation LEDSDCM5
LampLED can be replaced
Service life LED L70B50 (25°)> 20000 h
Soft light startNo
Continuous lightselectable
Colour Rendering Index CRI= 81

General information

Article number058630
European Article Number (EAN)4007841058630

Functions

FunctionsManual ON / ON-OFF, Master/slave override, Timer
Twilight setting2 – 2000 lx
Time setting5 s – 60 Min.
Basic light level functionNo
Main light adjustableNo
Twilight setting TEACHYes

Connection

InterconnectionYes
Interconnection viaBluetooth
AppSTEINEL Connect App

General information

Product categorySensor-switched LED floodlight
