Sensor-switched LED floodlight

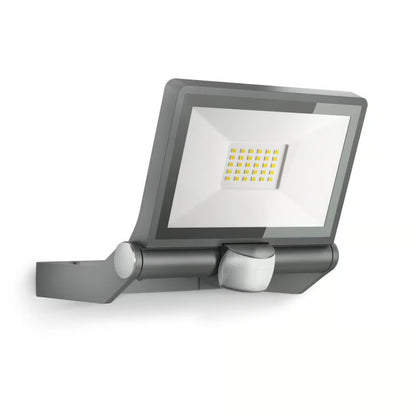

XLED ONE S Anthracite / with motion detector

Product Code: 065249

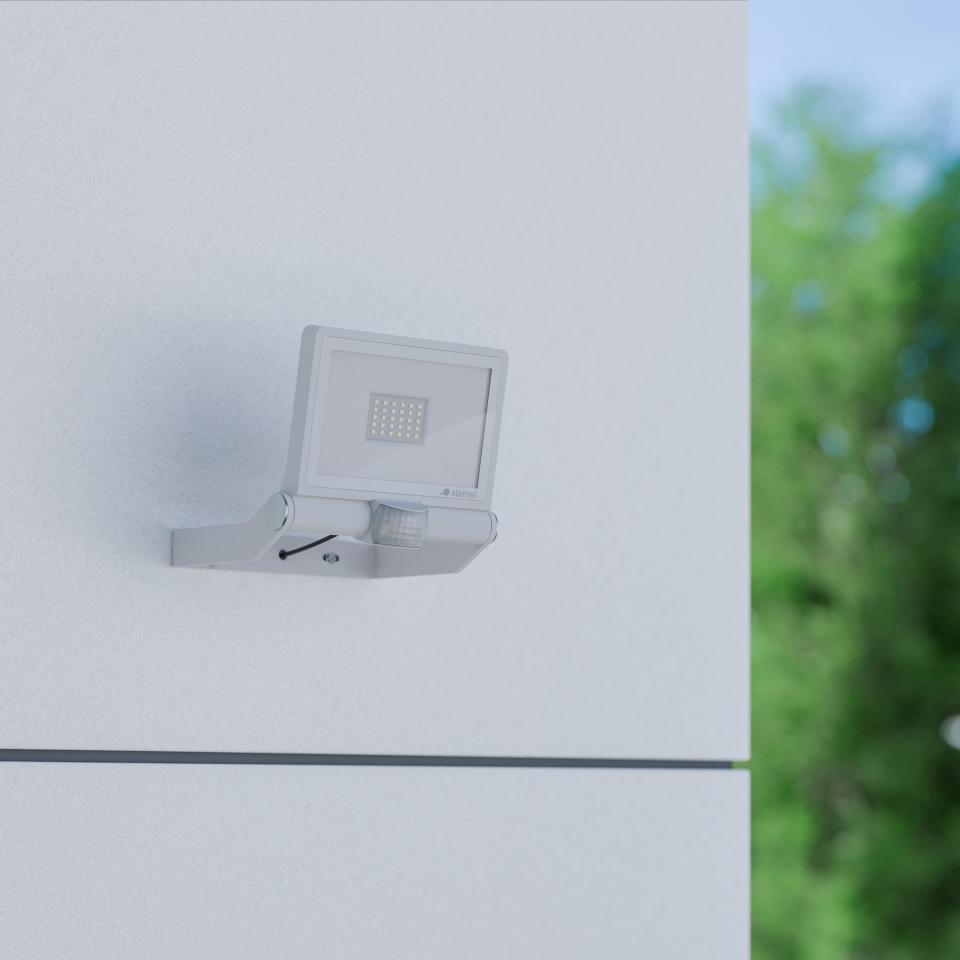

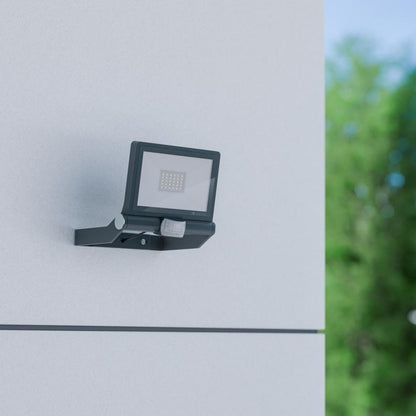

  • Spotlight with motion detector for wall and ceiling mounting
  • Never change bulbs again thanks to 50,000 hours LED life (approx. 30 years at 4.5 hours/day)

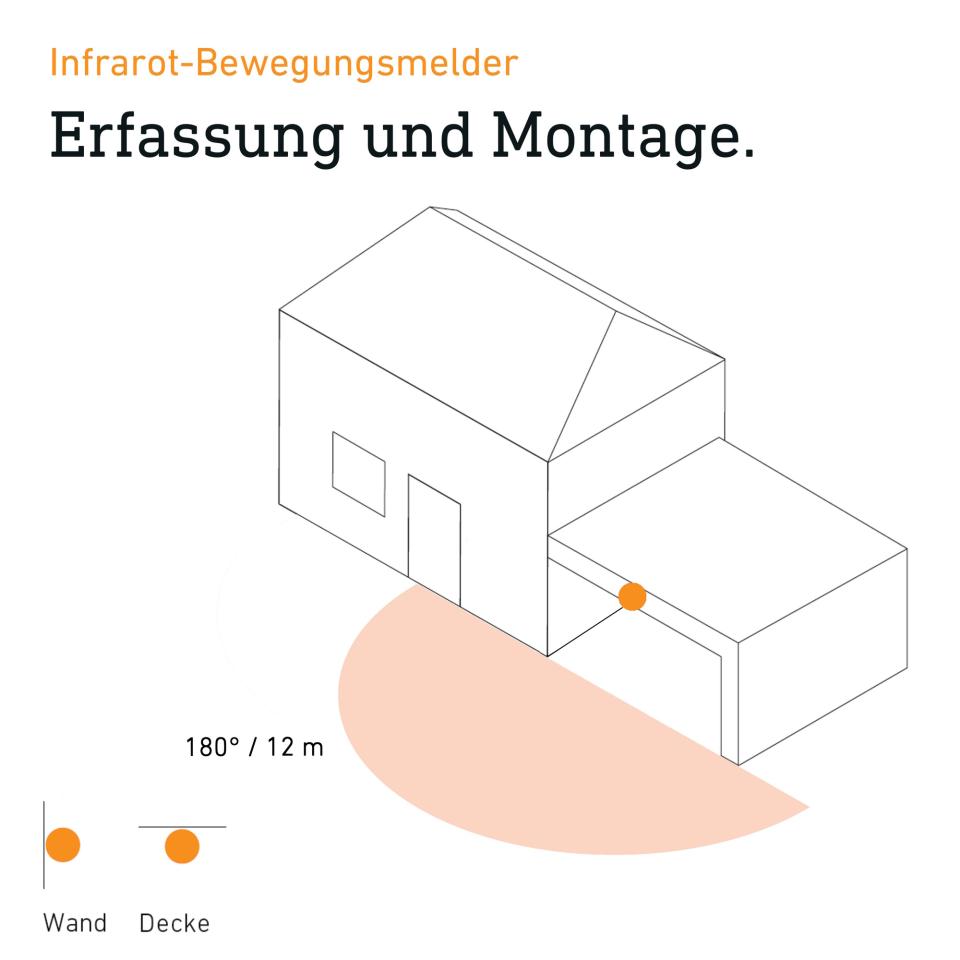

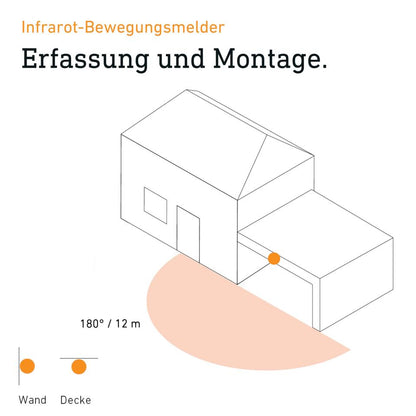

  • Automatic light thanks to 180 ° Infrared sensor with up to 12 m detection of movement
  • LED panel as well as sensor can be swivelled vertically by 180°, incl. cover sticker for exact adjustment of the detection area
  • Warm white light (3000 K) and long-life 18,6 W LEDs with 2050 lm, with an illumination of max. 300 sqm, max. 3m mounting height

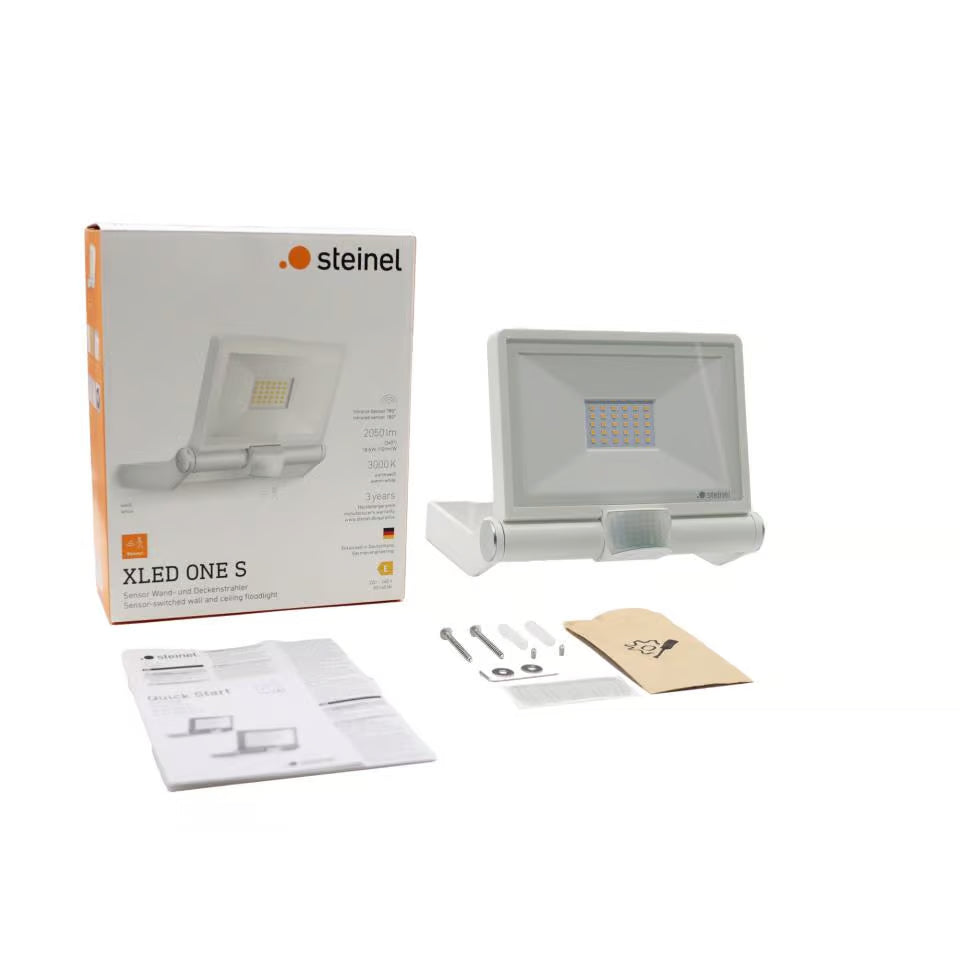

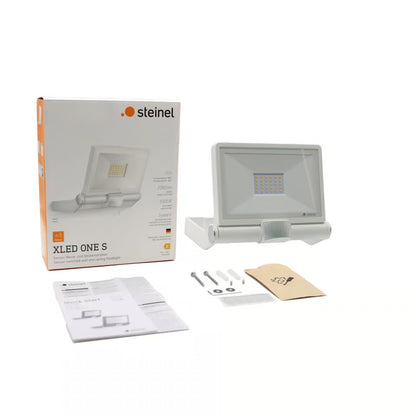

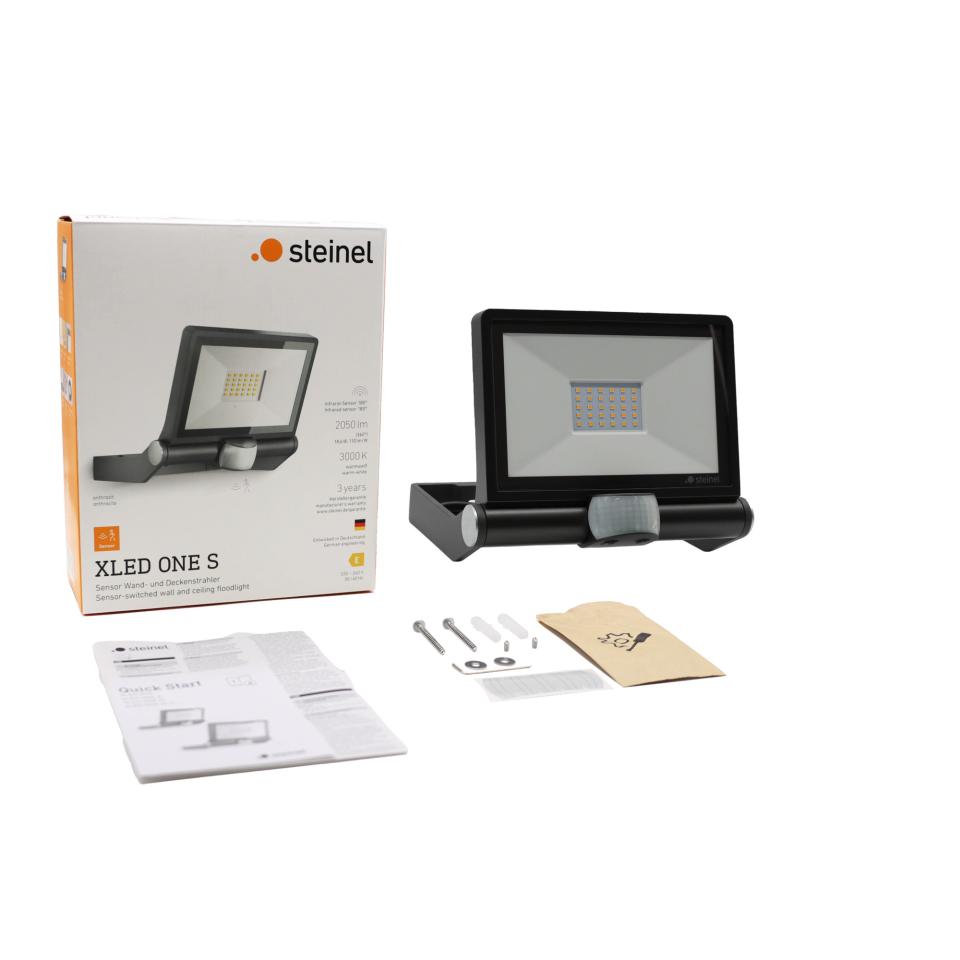

  • Incl. mounting accessories - plastic-free packaging
Color
Color: Anthracite
How much energy do you want to save?

How much energy do you want to save?

With STEINEL, you have the choice when it comes to energy saving. Our lights without motion sensors use energy-efficient LEDs and provide you with full manual control – a solid foundation for energy efficiency. Want to save more? Then our lights with twilight switches are a good choice, automatically turning on in darkness and saving up to 50% energy. For the highest savings of up to 95%, we recommend our lights with motion sensors, which only activate when needed. Choose your preference and enjoy the combination of efficiency and convenience with STEINEL.

Icon

long life LED 50.000 h

Icon

3000K warm-white

Icon

infrared sensor 180°

Icon

max. Ø 12 m

Icon

IP44

Icon

180° vertical

Icon

180° vertical

Icon

Light source not exchangeable

Icon

Control gear not exchangeable

  • Application, place: Outdoors

  • Installation: Surface wiring

  • Article number: 065249

  • PU1, net weight: 1,185 kg

  • Luminous flux total product: 2050 lm

  • Colour temperature: 3000 K

  • With motion detector: Yes

  • Output: 18,6 W

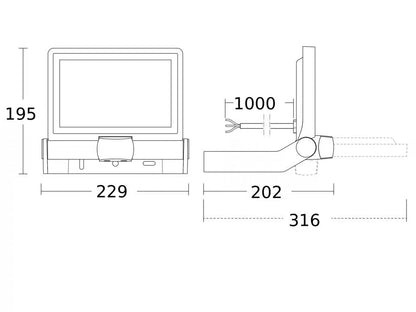

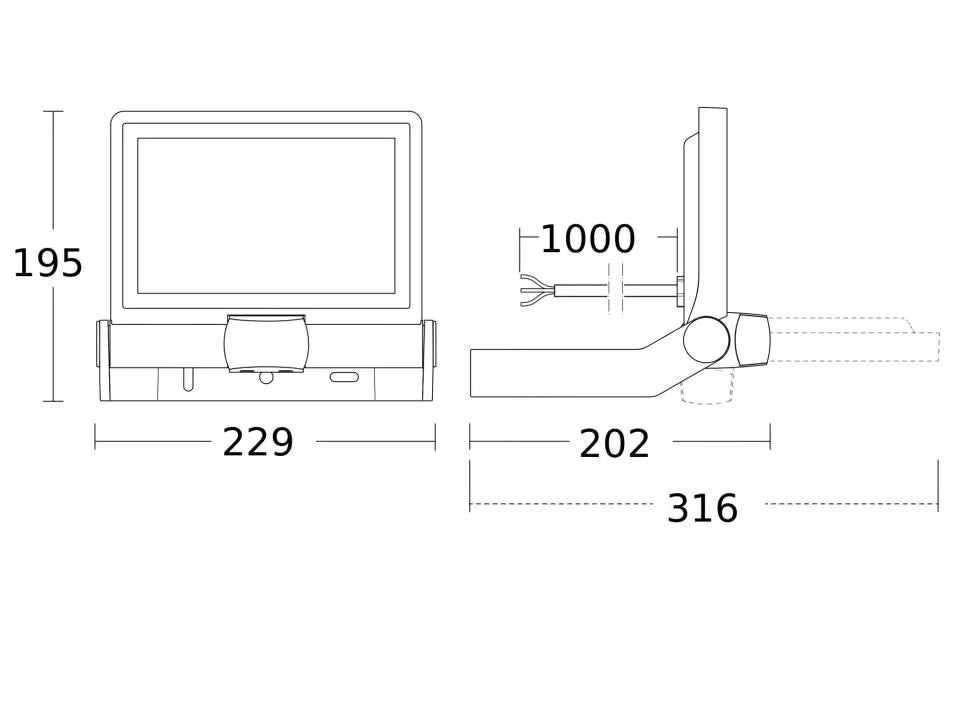

Product dimension

General

Dimensions (L x W x H)202 x 229 x 195 mm
With lampYes, STEINEL LED system
With motion detectorYes
Manufacturer's Warranty3 years
Settings viaPotentiometers
VersionAnthracite
PU1, EAN4007841065249
Application, placeOutdoors
Application, roomoutdoors, all round the building, courtyard & driveway
ColourAnthracite

Fixation/ mounting

Installation sitewall, ceiling
InstallationWall, Ceiling, Surface wiring

Housing

Impact resistanceIK03
IP-ratingIP44
Protection classI
Ambient temperaturefrom -20 up to 40 °C
Housing materialAluminium
Cover materialGlass transparent

Electrical equipement

Mains power supply220 – 240 V / 50 – 60 Hz
Output18,6 W

Sensor technology

Mounting height max.3,00 m
Sneak-by guardNo
Capability of masking out individual segmentsYes
Electronic scalabilityNo
Mechanical scalabilityNo
Reach, radialr = 3 m (14 m²)
Reach, tangentialr = 12 m (226 m²)
Optimum mounting height2 m
Detection angle180 °

Luminaire

Photo-cell controllerYes
Luminous flux total product2050 lm
Measured luminos flux (360°)2050 lm
Total product efficiency110 lm/W
Colour temperature3000 K
Colour variation LEDSDCM6
LampLED cannot be replaced
LED life expectancy (max. °C)50000 h
Service life LED L70B50 (25°)> 36000 h
Drop in luminous flux in accordance with LM80L70B10
LED cooling systemPassive Thermo Control
Colour Rendering Index CRI= 80
Energy efficiency class of light sourceE

Functions

Twilight setting2 – 2000 lx
Time setting8 s – 35 Min.
Basic light level functionNo
Main light adjustableNo

Connection

InterconnectionNo

General information

Article number065249
European Article Number (EAN)4007841065249
Product categorySensor-switched LED floodlight
