Sensor-switched indoor light - Professional Line

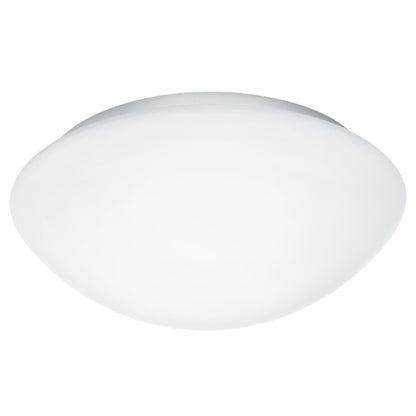

RS 10 S

Product Code: 730512

Classy and powerful. High-frequency SensorLight RS 10 S, ideal for stairwells and corridors, for E 27 lamps, matt opal glass shade, 360° detection, reach setting 1 – 8 m, selectable time and twilight threshold.

Pairs well with
This is how you save.
The classic light. With technology in a class of its own.

This is how you save.

The savings apply in comparison to using a conventional LED light without motion detector with the same power for an average of 10 hours of continuous light a day. In comparison, the STEINEL LED light with motion detector only lights up for an average of 2 hours at night because the light is only switched on when movement is detected.



The classic light. With technology in a class of its own.

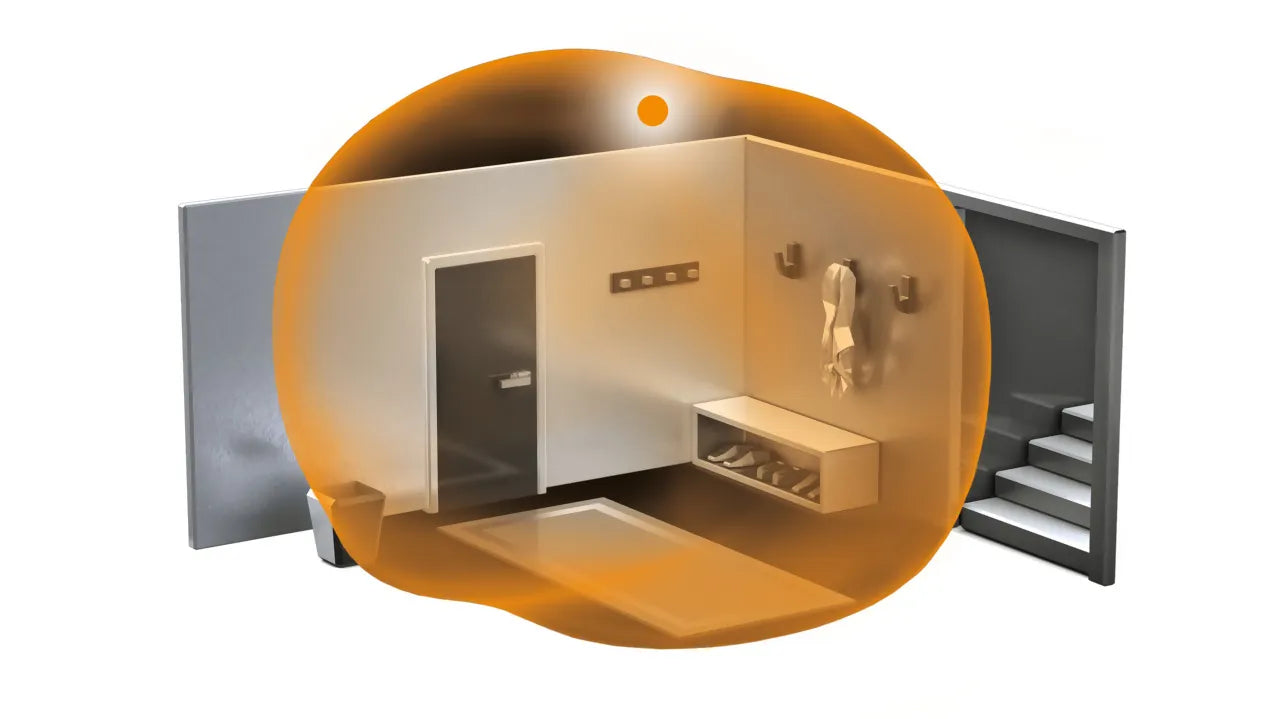

Classic half-globe design in plain opal glass. Behind it technology in a class of its own: high-frequency sensor with infinitely variable reach. These lights can be interconnected and also combined with a bathroom or WC extractor fan. There's hardly any way round it.

This is how you save.

The savings apply in comparison to using a conventional LED light without motion detector with the same power for an average of 10 hours of continuous light a day. In comparison, the STEINEL LED light with motion detector only lights up for an average of 2 hours at night because the light is only switched on when movement is detected.



The classic light. With technology in a class of its own.

Classic half-globe design in plain opal glass. Behind it technology in a class of its own: high-frequency sensor with infinitely variable reach. These lights can be interconnected and also combined with a bathroom or WC extractor fan. There's hardly any way round it.

Icon

max. 60 W E27

Icon

high frequency sensor 360°

Icon

Ø 1 - 8 m

Icon

IP44

Icon

2 - 2000 lux

Icon

10 sec - 15 min

Icon

energy saving

Icon

manufacturer's warranty steinel.de/garantie

Icon

CE

  • Application, place: Indoors

  • Installation: Surface wiring

  • Article number: 730512

  • PU1, net weight: 1,585 kg

  • With motion detector: Yes

  • Interconnection via: Cable

  • Output: 60 W

  • Package content: 1

Product dimension

General

Dimensions (Ø x H)280 x 110 mm
With lampNo
With motion detectorYes
Manufacturer's Warranty5 years
Settings viaPotentiometers
With remote controlNo
PU1, EAN4007841730512
Application, placeIndoors
Application, roomcorridor / aisle, function room / ancillary room, stairwell, WC / washroom, outdoors, Indoors
Colourwhite
Package content1

Fixation/ mounting

Installation sitewall, ceiling
InstallationWall, Ceiling, Surface wiring

Housing

Impact resistanceIK03
IP-ratingIP44
Protection classII
Ambient temperaturefrom -20 up to 40 °C
Housing materialAluminium
Cover materialGlass opal
IP-rating, ceilingIP44

Electrical equipement

Mains power supply230 – 240 V / 50 Hz
Switching output 1, resistive800 W
Power consumption1,1 W
Output60 W

Sensor technology

Mounting height max.4,00 m
HF-system5,8 GHz
Detectionalso through glass, wood and stud walls
Capability of masking out individual segmentsNo
Electronic scalabilityYes
Mechanical scalabilityNo
Reach, radialØ 8 m (50 m²)
Reach, tangentialØ 8 m (50 m²)
Detection angle360 °

Luminaire

Photo-cell controllerYes
LampAll-purpose lamp
BaseE27
Soft light startNo
Continuous lightselectable

General information

Article number730512
European Article Number (EAN)4007841730512
Transmitter power< 1 mW
Angle of aperture160 °

Functions

Twilight setting2 – 2000 lx
Time setting5 s – 15 Min.
Basic light level functionNo
Twilight setting TEACHNo

Connection

InterconnectionYes
Type of interconnectionMaster/master
Interconnection viaCable

General information

Product categorySensor-switched indoor light
