Sensor-switched LED indoor light - Professional Line

RS PRO P2 With motion detector / Warm white (3000 K)

Product Code: 056100

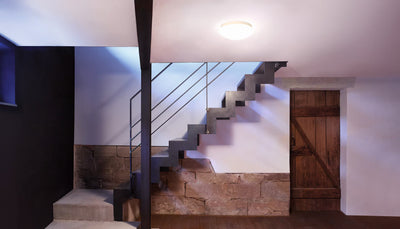

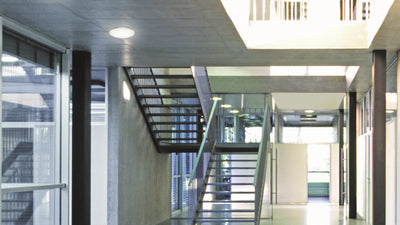

Circular classic. Perfect shape. Perfect efficiency. The perfect switched indoor light . The RS PRO P2 S integrates harmoniously into corridors, hallways and stairwells. It combines timeless design and extremely easy installation with pioneering technology and unbeatable efficiency. In addition, two metal discs are always included to further limit the sensor in certain directions. As many as ten lights can be interconnected by cable. Output: 15,1 W with 1674 lm, 3000 K.

Product variants

Pairs well with

RS PRO P2

With motion detector / Warm white (3000 K)

A perfect solution for the right light in the right place.

Today, indoor lighting solutions are in demand that not only provide the last word in convenience and intelligent technology but also integrate harmoniously into the particular interior design. We have found the perfect answer in the RS PRO P series. Timeless design and very easy installation combined with pioneering technology and maximum efficiency. In addition, two metal discs are always included to further limit the sensor in certain directions. Because with the virtually invisible 360-degree high-frequency sensor always switching the 18,4 W LED lighting system ON reliably, the indoor light is a real bonus for any building, both from the aspect of aesthetic appeal as well as cost-efficiency. The versions without sensor are quickly and easily interconnected via cable.

This is how you save.

The savings apply in comparison to using a conventional LED light without motion detector with the same power for an average of 10 hours of continuous light a day. In comparison, the STEINEL LED light with motion detector only lights up for an average of 2 hours at night because the light is only switched on when movement is detected.

A perfect solution for the right light in the right place.

Today, indoor lighting solutions are in demand that not only provide the last word in convenience and intelligent technology but also integrate harmoniously into the particular interior design. We have found the perfect answer in the RS PRO P series. Timeless design and very easy installation combined with pioneering technology and maximum efficiency. In addition, two metal discs are always included to further limit the sensor in certain directions. Because with the virtually invisible 360-degree high-frequency sensor always switching the 18,4 W LED lighting system ON reliably, the indoor light is a real bonus for any building, both from the aspect of aesthetic appeal as well as cost-efficiency. The versions without sensor are quickly and easily interconnected via cable.

A perfect solution for the right light in the right place.

Today, indoor lighting solutions are in demand that not only provide the last word in convenience and intelligent technology but also integrate harmoniously into the particular interior design. We have found the perfect answer in the RS PRO P series. Timeless design and very easy installation combined with pioneering technology and maximum efficiency. In addition, two metal discs are always included to further limit the sensor in certain directions. Because with the virtually invisible 360-degree high-frequency sensor always switching the 18,4 W LED lighting system ON reliably, the indoor light is a real bonus for any building, both from the aspect of aesthetic appeal as well as cost-efficiency. The versions without sensor are quickly and easily interconnected via cable.

30 years (Ø 4,5h / day)

high frequency sensor 360°

Ø 1 - 8 m

3000K warm-white

IP54

2 - 2000 lux

5 sec - 15 min

Light source not exchangeable

Control gear not exchangeable

Article number: 056100
Luminous flux total product: 1674 lm
Colour temperature: 3000 K
With motion detector: Yes
Interconnection via: Cable
Output: 15,1 W
Package content: 0,602 kg

General

Dimensions (Ø x H)	320 x 110 mm
With lamp	Yes, STEINEL LED system
With motion detector	Yes
Manufacturer's Warranty	5 years
Version	warm white
PU1, EAN	4007841056100
Colour	white
Fuse protection B10	54
Fuse protection B16	87
Fuse protection C10	90
Fuse protection C16	145

Fixation/ mounting

Installation site	wall, ceiling
Installation	Ceiling

Housing

Impact resistance	IK03
IP-rating	IP54
Protection class	II
Ambient temperature	from -10 up to 40 °C
Housing material	Plastic
Cover material	Plastic, opal
IP-rating, ceiling	IP54

Electrical equipement

Mains power supply	220 – 240 V / 50 – 60 Hz
LED lamps > 8 W	250 W
Capacitive load in μF	88 µF
Output	15,1 W
Starting current, maximum	13 A

Sensor technology

Mounting height max.	4,00 m
Electronic scalability	Yes
Mechanical scalability	No
Reach, radial	Ø 8 m (50 m²)
Reach, tangential	Ø 8 m (50 m²)
Detection angle	360 °

Luminaire

Luminous flux total product	1674 lm
Total product efficiency	111 lm/W
Colour temperature	3000 K
Lamp	LED cannot be replaced
Base	without
LED cooling system	Passive Thermo Control
Soft light start	Yes
Lifetime LED according to IEC-62717 (L70)	100.000 h
Lifetime LED according to IEC-62717 (L80)	73.000 h
LED service life according to IES TM-21 (L70)	60.000 h
Lifetime LED according to IES TM-21 (L80)	60.000 h
Colour Rendering Index CRI	= 82
Photobiological safety in accordance with EN 62471	RG1

General information

Article number	056100
European Article Number (EAN)	4007841056100
Basic light level function in per cent	10 %
Product category	Sensor-switched LED indoor light

Functions

Twilight setting	2 – 2000 lx
Time setting	5 s – 15 Min.
Basic light level function	Yes
Basic light level function time	10/30 min, all night
Main light adjustable	No

Connection

Interconnection	Yes
Interconnection via	Cable
