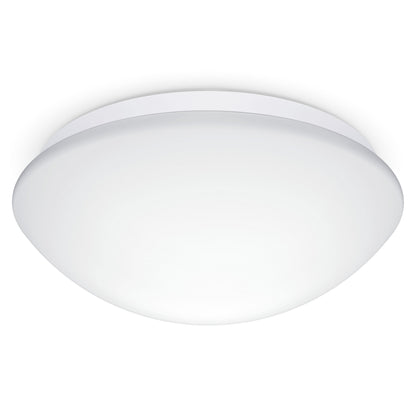

Sensor-switched LED indoor light - Professional Line

RS PRO P3 With motion detector / Warm white (3000 K)

Product Code: 056148

Circular classic. Perfect shape. Perfect efficiency. The perfect switched indoor light . The RS PRO P3 S integrates harmoniously into corridors, hallways and stairwells. It combines timeless design and extremely easy installation with pioneering technology and unbeatable efficiency. In addition, two metal discs are always included to further limit the sensor in certain directions. As many as ten lights can be interconnected by cable. Output: 18,4 W with 2072 lm, 3000 K.

A perfect solution for the right light in the right place.

Today, indoor lighting solutions are in demand that not only provide the last word in convenience and intelligent technology but also integrate harmoniously into the particular interior design. We have found the perfect answer in the RS PRO P series. Timeless design and very easy installation combined with pioneering technology and maximum efficiency. In addition, two metal discs are always included to further limit the sensor in certain directions. Because with the virtually invisible 360-degree high-frequency sensor always switching the 18,4 W LED lighting system ON reliably, the indoor light is a real bonus for any building, both from the aspect of aesthetic appeal as well as cost-efficiency. The versions without sensor are quickly and easily interconnected via cable.

Icon

30 years (Ø 4,5h / day)

Icon

high frequency sensor 360°

Icon

Ø 1 - 8 m

Icon

3000K warm-white

Icon

IP54

Icon

2 - 2000 lux

Icon

5 sec - 15 min

Icon

10 - 50% basic brightness

Icon

soft light start

  • Article number: 056148

  • PU1, net weight: 0,929 kg

  • Luminous flux total product: 2072 lm

  • Colour temperature: 3000 K

  • With motion detector: Yes

  • Interconnection via: Cable

  • Output: 18,4 W

Product dimension

General

Dimensions (Ø x H)400 x 142 mm
With lampYes, STEINEL LED system
With motion detectorYes
Manufacturer's Warranty5 years
Versionwarm white
PU1, EAN4007841056148
Colourwhite
Fuse protection B1054
Fuse protection B1687
Fuse protection C1090
Fuse protection C16145

Fixation/ mounting

Installation sitewall, ceiling
InstallationCeiling

Housing

Impact resistanceIK03
IP-ratingIP54
Protection classII
Ambient temperaturefrom -10 up to 40 °C
Housing materialPlastic
Cover materialPlastic, opal
IP-rating, ceilingIP54

Electrical equipement

Mains power supply220 – 240 V / 50 – 60 Hz
Switching output 1, low-voltage halogen lamps800 VA
LED lamps > 8 W250 W
Capacitive load in μF88 µF
Output18,4 W
Starting current, maximum13 A

Sensor technology

Mounting height max.4,00 m
Electronic scalabilityYes
Mechanical scalabilityNo
Reach, radialØ 8 m (50 m²)
Reach, tangentialØ 8 m (50 m²)
Detection angle360 °

Luminaire

Luminous flux total product2072 lm
Total product efficiency113 lm/W
Colour temperature3000 K
LampLED cannot be replaced
Basewithout
LED cooling systemPassive Thermo Control
Soft light startYes
Lifetime LED according to IEC-62717 (L70)100.000 h
Lifetime LED according to IEC-62717 (L80)74.000 h
LED service life according to IES TM-21 (L70)>60.000 h
Lifetime LED according to IES TM-21 (L80)>60.000 h
Colour Rendering Index CRI= 82
Photobiological safety in accordance with EN 62471RG1

General information

Article number056148
European Article Number (EAN)4007841056148
Basic light level function in per cent10 %

Functions

Twilight setting2 – 2000 lx
Time setting5 s – 15 Min.
Basic light level functionYes
Basic light level function time10/30 min, all night
Main light adjustableNo

Connection

InterconnectionYes
Interconnection viaCable

General information

Product categorySensor-switched LED indoor light
