Sensor-switched outdoor light

DL Vario Quattro PRO S White / Neutral white (4000 K)

Product Code: 068196

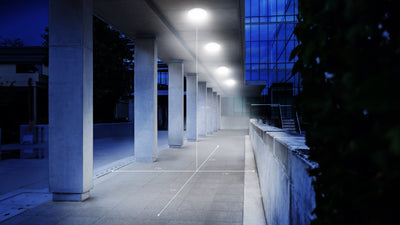

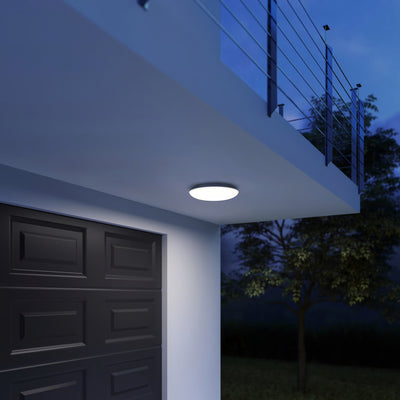

Detects precisely where you want it to. No more irritating inadvertent triggering. Four precision infrared sensors guarantee 360° all-round detection and can be adjusted in four directions to accommodate any situation. This makes it possible to define the detection zone with absolute precision. Reach: 2 to 8 m. Clean look without sensor elements to spoil the design because the sensor lenses are integrated into the luminaire diffuser where they are virtually hidden from view – a patented world first! 1430 lm at 14 W. In neutral white or warm white. Due to the reliability and sensitivity of the sensor, we advise against stacked, multi-storey installations.

Color: White

White

Product variants

This is how you save.

The savings apply in comparison to using a conventional LED light without motion detector with the same power for an average of 10 hours of continuous light a day. In comparison, the STEINEL LED light with motion detector only lights up for an average of 2 hours at night because the light is only switched on when movement is detected.

30 years (Ø 4,5h / day)

4000K neutral white

Infrared sensor ideal 12 x 12 m

Scalable in every direction

IP54

2 - 1000 lux

5 sec - 30 min

Light source not exchangeable

Control gear not exchangeable

Application, place: Outdoors
Installation: Surface wiring
Article number: 068196
PU1, net weight: 0,89 kg
Luminous flux total product: 1430 lm
Colour temperature: 4000 K
With motion detector: Yes
Interconnection via: Cable
Output: 14 W

General

Dimensions (Ø x H)	310 x 69 mm
With lamp	Yes, STEINEL LED system
Manufacturer's Warranty	5 years
Settings via	Potentiometers
With remote control	No
Version	Neutral white white
PU1, EAN	4007841068196
Application, place	Outdoors
Application, room	corridor / aisle, function room / ancillary room, stairwell, outdoors, front door, courtyard & driveway, Indoors
Colour	white

Fixation/ mounting

Installation site

ceiling

Housing

Impact resistance	IK07
IP-rating	IP54
Protection class	II
Ambient temperature	from -20 up to 35 °C
Housing material	Plastic
Cover material	Plastic, structured

Electrical equipement

Mains power supply	220 – 240 V / 50 – 60 Hz
Output	14 W
Switching output 1, resistive	500 W
Fluorescent lamps, electronic ballast	500 W
Fluorescent lamps, uncorrected	500 VA
Fluorescent lamps, series-corrected	500 VA
Fluorescent lamps, parallel-corrected	500 VA
Switching output 1, low-voltage halogen lamps	500 VA
LED lamps < 2 W	16 W
LED lamps > 2 W < 8 W	64 W
LED lamps > 8 W	64 W
Capacitive load in μF	88 µF
Power consumption	0,5 W

Sensor technology

Mounting height max.	6,00 m
Sneak-by guard	Yes
Capability of masking out individual segments	No
Electronic scalability	No
Mechanical scalability	Yes
Reach, detail	Reach adjustable from 2 - 8 m in 4 directions (90° in each)
Reach, radial	4 x 4 m (16 m²)
Reach, tangential	16 x 16 m (256 m²)
Optimum mounting height	2,8 m
Detection angle	360 °

Luminaire

Photo-cell controller	Yes
Luminous flux total product	1430 lm
Measured luminos flux (360°)	1430 lm
Total product efficiency	102 lm/W
Colour temperature	4000 K
Colour variation LED	SDCM3
Lamp	LED cannot be replaced
LED life expectancy (max. °C)	50000 h
Service life LED L70B50 (25°)	> 60000 h
Base	without
LED cooling system	Passive Thermo Control
Soft light start	Yes
Continuous light	selectable, 4h
Colour Rendering Index CRI	= 82

General information

Article number	068196
European Article Number (EAN)	4007841068196
Basic light level function in per cent	10 %
Basic light level function percentage, from	10 %

Functions

Twilight setting	2 – 1000 lx
Time setting	5 s – 30 Min.
Basic light level function	Yes
Basic light level function time	10/30 min, all night
Twilight setting TEACH	No

Connection

Interconnection	Yes
Interconnection via	Cable

General information

Product category

Sensor-switched outdoor light
