How much energy do you want to save?
Modern and flexible.

How much energy do you want to save?

With STEINEL, you have the choice when it comes to energy saving. Our lights without motion sensors use energy-efficient LEDs and provide you with full manual control – a solid foundation for energy efficiency. Want to save more? Then our lights with twilight switches are a good choice, automatically turning on in darkness and saving up to 50% energy. For the highest savings of up to 95%, we recommend our lights with motion sensors, which only activate when needed. Choose your preference and enjoy the combination of efficiency and convenience with STEINEL.

Modern and flexible.

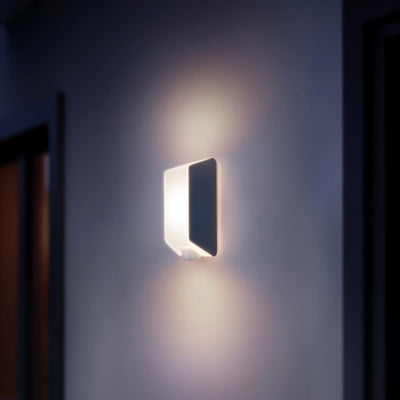

The L 30 S is a compact outdoor luminaire in a modern design and creates an inviting atmosphere around the house with its discreet ambient light. Ideally, the anthracite-coloured luminaire made of UV-resistant plastic is mounted at a height of 2 m on the outside wall. The L 30 S has an E27 socket. This means that the light source can be replaced as required and can be individually adapted to personal preferences at any time with regard to the lighting mood. Equipped with a swivelling 180° sensor, the luminaire allows for adjustment according to need. The follow-up time can be freely defined between 8 seconds and 35 minutes. The outdoor light is also available without a sensor.

How much energy do you want to save?

With STEINEL, you have the choice when it comes to energy saving. Our lights without motion sensors use energy-efficient LEDs and provide you with full manual control – a solid foundation for energy efficiency. Want to save more? Then our lights with twilight switches are a good choice, automatically turning on in darkness and saving up to 50% energy. For the highest savings of up to 95%, we recommend our lights with motion sensors, which only activate when needed. Choose your preference and enjoy the combination of efficiency and convenience with STEINEL.

Modern and flexible.

The L 30 S is a compact outdoor luminaire in a modern design and creates an inviting atmosphere around the house with its discreet ambient light. Ideally, the anthracite-coloured luminaire made of UV-resistant plastic is mounted at a height of 2 m on the outside wall. The L 30 S has an E27 socket. This means that the light source can be replaced as required and can be individually adapted to personal preferences at any time with regard to the lighting mood. Equipped with a swivelling 180° sensor, the luminaire allows for adjustment according to need. The follow-up time can be freely defined between 8 seconds and 35 minutes. The outdoor light is also available without a sensor.

Icon

outdoor light

Icon

max. 60 W E27

Icon

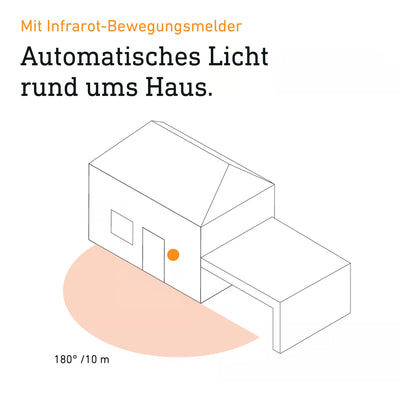

infrared sensor 180°

Icon

max. radius 10 m

Icon

IP44

Icon

2 - 2000 lux

Icon

8 sec - 35 min

Icon

shock proof IK07

Icon

ideal 2 m

  • Application, place: Outdoors

  • Installation: Surface wiring

  • Article number: 068899

  • PU1, net weight: 0,619 kg

  • With motion detector: Yes

  • Output: 15 W

  • Package content: 1

Product dimension

General

Dimensions (L x W x H)108 x 122 x 261 mm
With lampNo
Manufacturer's Warranty3 years
Settings viaPotentiometers
With remote controlNo
Versionwith motion detector
PU1, EAN4007841068899
Application, placeOutdoors
Application, roomgarden, front door, courtyard & driveway, all round the building, terrace / balcony
ColourAnthracite
Package content1

Fixation/ mounting

includes sheet of self-adhesive numbersNo
Installation sitewall

Housing

Impact resistanceIK07
IP-ratingIP44
Protection classII
Ambient temperaturefrom -20 up to 40 °C
Housing materialPlastic
Cover materialPlastic, opal

Electrical equipement

Mains power supply220 – 240 V / 50 – 60 Hz
Output15 W

Sensor technology

Mounting height max.3,00 m
Sneak-by guardNo
Capability of masking out individual segmentsNo
Electronic scalabilityNo
Mechanical scalabilityNo
Reach, radialr = 3 m (14 m²)
Reach, tangentialr = 10 m (157 m²)
Cover materialsticker
Optimum mounting height2 m
Detection angle180 °

Luminaire

Photo-cell controllerYes
BaseE27
Soft light startNo

General information

Article number068899
European Article Number (EAN)4007841068899

Functions

Twilight setting2 – 2000 lx
Time setting8 s – 35 Min.
Basic light level functionNo
Main light adjustableNo
Twilight setting TEACHNo

Connection

InterconnectionNo

General information

Product categorySensor-switched outdoor light
