L 690 S PMMA anthracite
L 690 S PMMA anthracite
L 690 S PMMA anthracite

Sensor-switched LED outdoor light - Professional Line

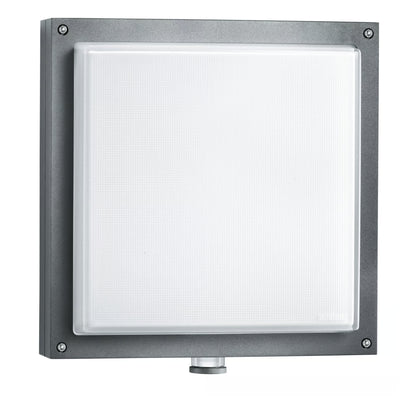

L 690 S PMMA anthracite

Product Code: 053000

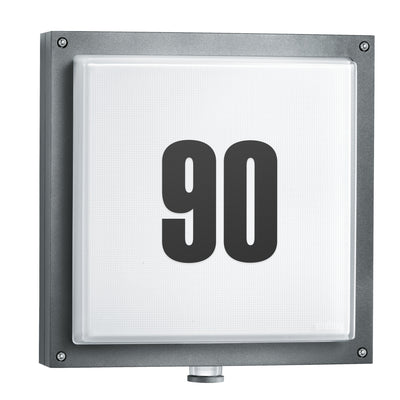

Popular style. Full range of functions. The square sensor-switched L 690 S outdoor light perfectly illuminates front doors (700 lm from a mere 8,5 W). Including sheet of self-adhesive house numbers for illuminating the house number. 360° infrared mini sensor with 4 programmes. Max. reach 7 m. Range of functions too: basic light level function, soft light start, adjustable time and twilight threshold. Aluminium base with impact proof diffuser (IK07). Interconnectable via cable.

Pairs well with
This is how you save.
Timelessly beautiful. And extremely tough.

This is how you save.

The savings apply in comparison to using a conventional LED light without motion detector with the same power for an average of 10 hours of continuous light a day. In comparison, the STEINEL LED light with motion detector only lights up for an average of 2 hours at night because the light is only switched on when movement is detected.

Timelessly beautiful. And extremely tough.

The square is one of the most popular shapes anywhere in and around the home. This is why it's only logical for STEINEL to believe in this familiar design that people like. And combine it with innovative LED and sensor technology. Just like all of STEINEL's LED sensor-switched outdoor lights, the L 690 S comes with the full range of functions too: basic light level function, soft light start as well as adjustable time and twilight threshold. Due to the high demand, we took a good look at the L 690 and the 691 LED and equipped this system with even better illumination characteristics and even better efficiency. The lamps can also be connected to the network via cable. This makes this robust and solid outdoor light a pleasure to work with in the professional environment.

This is how you save.

The savings apply in comparison to using a conventional LED light without motion detector with the same power for an average of 10 hours of continuous light a day. In comparison, the STEINEL LED light with motion detector only lights up for an average of 2 hours at night because the light is only switched on when movement is detected.

Timelessly beautiful. And extremely tough.

The square is one of the most popular shapes anywhere in and around the home. This is why it's only logical for STEINEL to believe in this familiar design that people like. And combine it with innovative LED and sensor technology. Just like all of STEINEL's LED sensor-switched outdoor lights, the L 690 S comes with the full range of functions too: basic light level function, soft light start as well as adjustable time and twilight threshold. Due to the high demand, we took a good look at the L 690 and the 691 LED and equipped this system with even better illumination characteristics and even better efficiency. The lamps can also be connected to the network via cable. This makes this robust and solid outdoor light a pleasure to work with in the professional environment.

Icon

30 years (Ø 4,5h / day)

Icon

3000K warm-white

Icon

infrared sensor 360°

Icon

IP44

Icon

2 - 1000 lux

Icon

5 sec - 15 min

Icon

soft light start

Icon

Light source not exchangeable

Icon

Control gear not exchangeable

  • Application, place: Outdoors

  • Installation: Surface wiring

  • Article number: 053000

  • PU1, net weight: 2,784 kg

  • Luminous flux total product: 700 lm

  • Colour temperature: 3000 K

  • With motion detector: Yes

  • Output: 8,5 W

  • Package content: 1

Product dimension

General

Dimensions (L x W x H)104 x 291 x 303 mm
With lampYes, STEINEL LED system
Manufacturer's Warranty5 years
Settings viaPotentiometers
With remote controlNo
VersionPMMA anthracite
PU1, EAN4007841053000
Application, placeOutdoors
Application, roomoutdoors, front door, all round the building, courtyard & driveway
ColourAnthracite
Package content1

Fixation/ mounting

includes sheet of self-adhesive numbersYes
Installation sitewall

Housing

Impact resistanceIK07
IP-ratingIP44
Protection classII
Ambient temperaturefrom -20 up to 50 °C
Housing materialAluminium
Cover materialPlastic, opal

Electrical equipement

Mains power supply220 – 240 V / 50 – 60 Hz
Output8,5 W

Sensor technology

Mounting height max.2,50 m
Slave mode selectableNo
Sneak-by guardYes
Capability of masking out individual segmentsYes
Electronic scalabilityNo
Mechanical scalabilityNo
Reach, radialr = 1.5 m (7 m²)
Reach, tangentialr = 7 m (154 m²)
Cover materialshrouds
Optimum mounting height2 m
Detection angle360 °

Luminaire

Photo-cell controllerYes
Luminous flux total product700 lm
Measured luminous flux (360°)700 lm
Total product efficiency82 lm/W
Colour temperature3000 K
Colour variation LEDSDCM3
LampLED cannot be replaced
LED life expectancy (max. °C)50000 h
Service life LED L70B50 (25°)> 60000 h
Basewithout
LED cooling systemPassive Thermo Control
Soft light startYes
Continuous lightselectable, 4h
Colour Rendering Index CRI= 82

General information

Article number053000
European Article Number (EAN)4007841053000
Basic light level function in per cent10 %
Basic light level function percentage, from10 %
Basic light level function percentage, up to10 %

Functions

Functions4 programme settings geared to practical needs, can be selected on removable sensor module
Twilight setting2 – 1000 lx
Time setting5 s – 15 Min.
Basic light level functionYes
Basic light level function time10/30 min, all night

Connection

InterconnectionYes
Interconnection viaCable

General information

Product categorySensor-switched LED outdoor light
