Sensor-switched indoor light - Professional Line

RS PRO P1 S with motion detector / warm white (3000 K)

Product Code: 056063

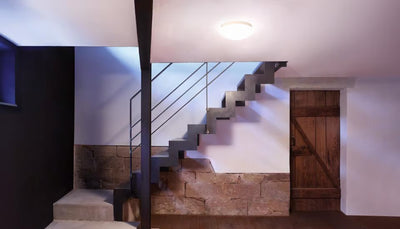

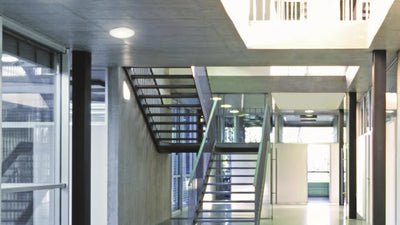

Circular classic. Perfect shape. Perfect efficiency. The perfect switched indoor light . The RS PRO P1 S integrates harmoniously into corridors, hallways and stairwells. It combines timeless design and extremely easy installation with pioneering technology and unbeatable efficiency. In addition, two metal plates are always included to further limit the sensor to certain directions. As many as ten lights can be interconnected by cable. Output: 9,4 W with 968 lm, 3000 K.
This is how you save

This is how you save

The savings apply in comparison to using a conventional LED light without motion detector with the same power for an average of 10 hours of continuous light a day. In comparison, the STEINEL LED light with motion detector only lights up for an average of 2 hours at night because the light is only switched on when motion is detected.

Icon

30 years (Ø 4,5h / day)

Icon

high frequency sensor 360°

Icon

1 - 8 m

Icon

IP54

Icon

2 - 2000 lux

Icon

5 sec - 15 min

Icon

networkable via cable

Icon

Light source not exchangeable

Icon

Control gear not exchangeable

  • Article number: 056063

  • PU1, net weight: 0,386 kg

  • Luminous flux total product: 968 lm

  • Colour temperature: 3000 K

  • With motion detector: Yes

  • Interconnection via: Cable

  • Output: 9,4 W

Product dimension

General

Dimensions (Ø x H)280 x 110 mm
With lampYes, STEINEL LED system
With motion detectorYes
Manufacturer's Warranty5 years
Versionwarm white
PU1, EAN4007841056063
Colourwhite
Fuse protection B1054
Fuse protection B1687
Fuse protection C1090
Fuse protection C16145

Fixation/ mounting

Installation sitewall, ceiling
InstallationWall, Ceiling, Surface wiring

Housing

Impact resistanceIK03
IP-ratingIP54
Protection classII
Ambient temperaturefrom -10 up to 40 °C
Housing materialPlastic
Cover materialPlastic, opal
IP-rating, ceilingIP54

Electrical equipement

Mains power supply220 – 240 V / 50 – 60 Hz
Switching output 1, low-voltage halogen lamps800 VA
LED lamps > 8 W250 W
Capacitive load in μF88 µF
Output9,4 W
Starting current, maximum13 A

Sensor technology

Mounting height max.4,00 m
Electronic scalabilityYes
Mechanical scalabilityNo

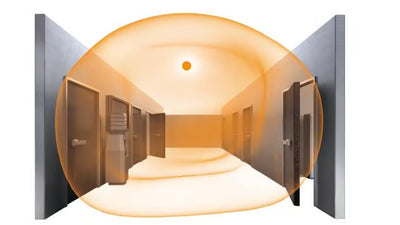

Reach, radialØ 8 m (50 m²)
Reach, tangentialØ 8 m (50 m²)
Detection angle360 °

Luminaire

Luminous flux total product968 lm
Total product efficiency103 lm/W
Colour temperature3000 K
LampLED cannot be replaced
Basewithout
LED cooling systemPassive Thermo Control
Soft light startYes
Continuous lightselectable, 4h
Lifetime LED according to IEC-62717 (L70)100.000 h
Lifetime LED according to IEC-62717 (L80)73.000 h
LED service life according to IES TM-21 (L70)>60.000 h
Lifetime LED according to IES TM-21 (L80)>60.000 h
Colour Rendering Index CRI= 82
Photobiological safety in accordance with EN 62471RG1

General information

Article number056063
European Article Number (EAN)4007841056063
Basic light level function in per cent10 %

Functions

Twilight setting2 – 2000 lx
Time setting5 s – 15 Min.
Basic light level functionYes
Basic light level function time10/30 min, all night

Connection

InterconnectionYes
Interconnection viaCable

General information

Product categorySensor-switched indoor light
