Motion detector

IS 360-1 DE White

Product Code: 032845

  • Infrared motion detector with 360° detection angle and up to Ø 8 m detection range
  • For flush-mounted ceiling installation in canopies and suspended ceilings indoors and outdoors (IP 54)
  • Made of UV-resistant plastic for a long service life
  • Incl. cover panels for exact adjustment of the detection range
  • Stepless adjustment of time (8 sec. - 35 min.) and switch-on brightness (2-2000 lux)
  • Reliably switches any light source with a total of max. 1000 W switching load (LED light sources max. 350 W/50 pcs.)
  • Incl. mounting accessories - plastic-free packaging
Color
Color: White

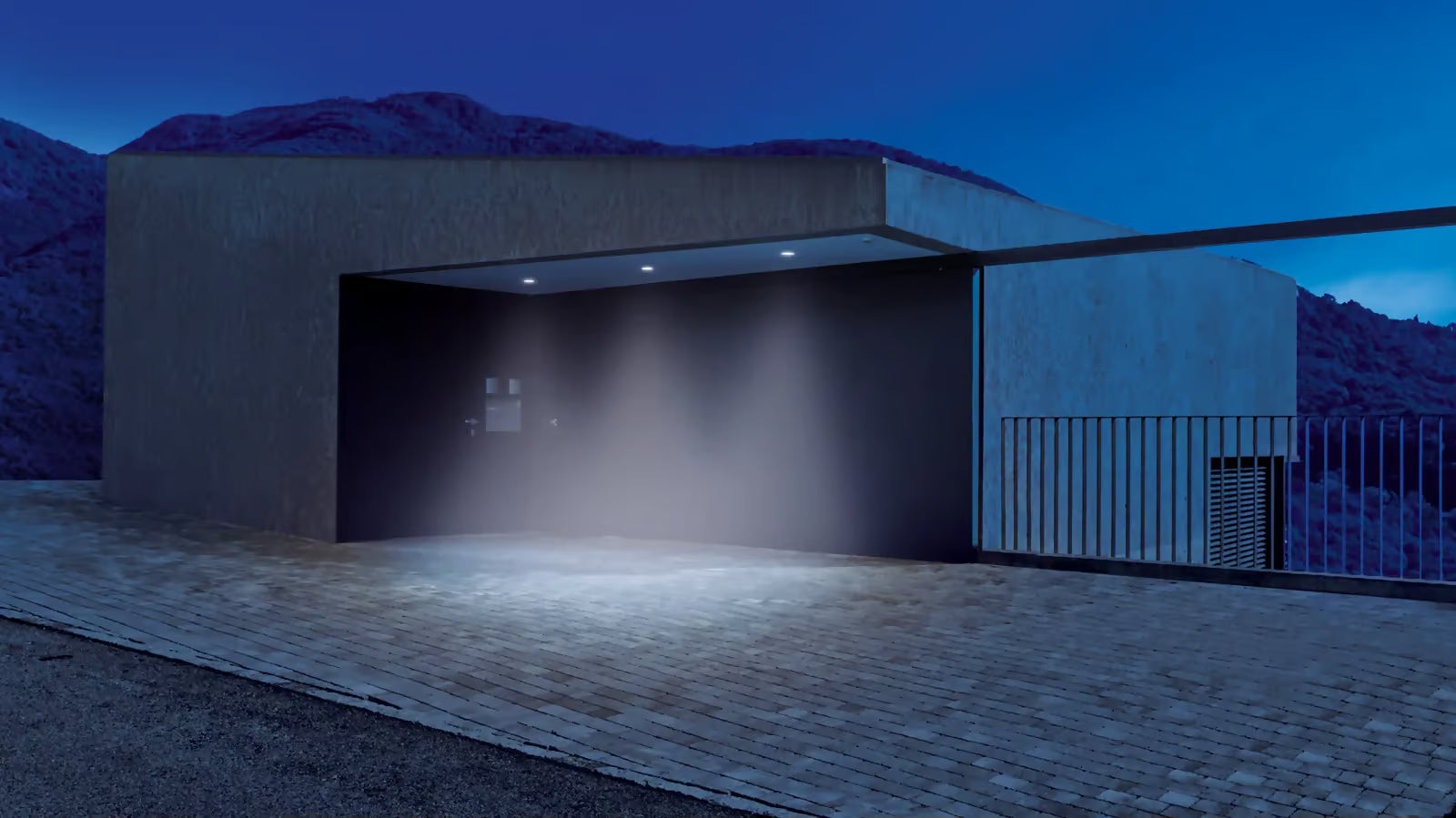

STEINEL inside. Intelligent technology for installation.

STEINEL inside. Intelligent technology for installation.

The perfect infrared sensor for installing in projecting roofs and suspended ceilings. The IS 360-1 DE has a reach of up to 4 metres and an impressive 360° angle of coverage. The detection zone can be adjusted where necessary by using shrouds. The IS 360-1 DE is available in black and white.

Icon

infrared sensor 360°

Icon

max. Ø 8 m

Icon

1000 W max.

Icon

IP54

Icon

2 - 2000 lux

Icon

8 sec - 35 min

Icon

ideal 2,2 m

Icon

energy saving

Icon

manufacture's warranty steinel.de/garantie

  • Application, place: Outdoors, Indoors

  • Installation: In-ceiling installation

  • Detection angle: 360 °

  • Reach, tangential: Ø 8 m (50 m²)

  • Mounting height max.: 4,00 m

  • Version: white

  • Article number: 032845

  • PU1, net weight: 0,116 kg

  • Interconnection via: Cable

  • Package content: 1

Product dimension
General
Dimensions (Ø x H)78 x 89 mm
Manufacturer's Warranty3 years
Settings viaPotentiometers
With remote controlNo
Versionwhite
PU1, EAN4007841032845
TypeMotion detectors
Application, placeOutdoors, Indoors
Application, roomoutdoors, front door, all round the building, terrace / balcony, Indoors
Colourwhite
Colour, RAL9010
Package content1
Fixation/ mounting
Includes corner wall mountNo
Installation siteceiling
InstallationIn-ceiling installation, Ceiling
Housing
IP-ratingIP54
Protection classII
Ambient temperaturefrom -20 up to 40 °C
MaterialPlastic
Electrical equipement
Mains power supply230 – 240 V / 50 – 60 Hz
Switching output 1, resistive1000 W
Fluorescent lamps, electronic ballast350 W
Fluorescent lamps, uncorrected500 VA
Fluorescent lamps, series-corrected500 VA
Fluorescent lamps, parallel-corrected500 VA
Switching output 1, low-voltage halogen lamps1000 VA
LED lamps < 2 W100 W
LED lamps > 2 W < 8 W175 W
LED lamps > 8 W350 W
Capacitive load in μF132 µF
General information
Article number032845
European Article Number (EAN)4007841032845
Detection angle360 °
Angle of aperture90 °
Sensor technology
Technology, sensorspassive infrared, Light sensor
Mounting height2,50 – 4,00 m
Mounting height max.4,00 m
Optimum mounting height2,5 m
Sneak-by guardYes
Capability of masking out individual segmentsYes
Electronic scalabilityNo
Mechanical scalabilityNo
Reach, radialØ 4 m (13 m²)
Reach, tangentialØ 8 m (50 m²)
Switching zones304 switching zones
Functions
Twilight setting2 – 2000 lx
Time setting8 s – 35 Min.
Basic light level functionNo
Main light adjustableNo
Twilight setting TEACHNo
Constant-lighting controlNo
Connection
InterconnectionYes
Type of interconnectionMaster/master
Interconnection viaCable
General information
Product categoryMotion detector
