Spot ONE SC with motion detector & Bluetooth

Product Code: 058630

Swivel-mounted wall spotlight with motion detector for stylish lighting accents around the house
Elegant and puristic design made of high-quality aluminium, spotlight head can be swivelled 180° horizontally and 90° vertically
Wireless networking via Bluetooth and easy setting via STEINEL Connect App

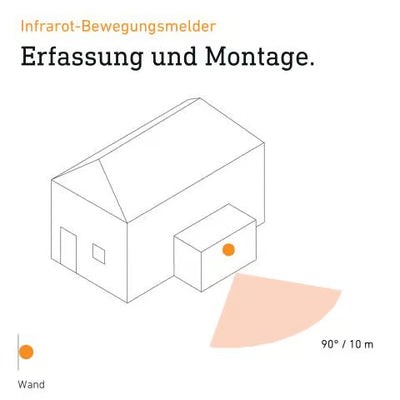

Automatic light thanks to 90° Infrared sensor with up to 10 m detection of movement
Functions: Twilight-controlled light, integrated timer, night economy mode, 4 hours continuous light
Incl. GU-10 LED bulb with warm white light (3000 K) with 512 lm at 7,9 W

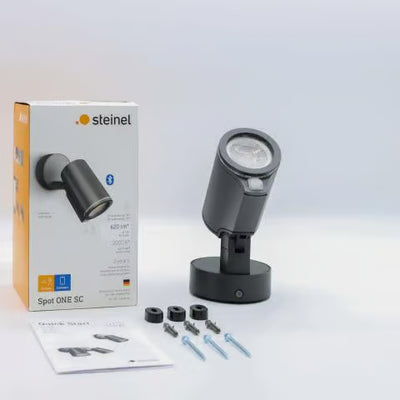

Incl. mounting accessories - plastic-free packaging

This product contains a light source ofenergy efficiency class F

Product variants

Pairs well with

Spot ONE SC

with motion detector & Bluetooth

Perfect detection. Targeted illumination.

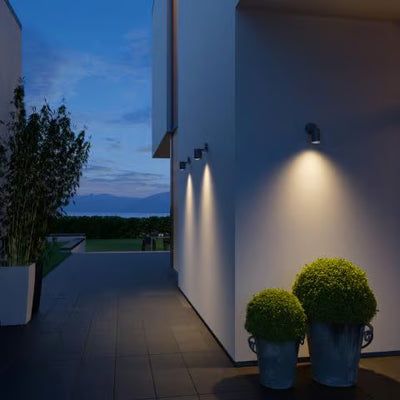

The "Spot ONE" spotlight series scores with purist design and makes stylist statements. The sturdy spot heads turn (180°) and tilt (90°), can be aimed with effortless ease to suit any situation and, with a light output of 512 lm and warm-white 3000 K, provide perfect illumination all around the building. The attractive spotlight series is available in three versions: in the classic "Spot ONE S" sensor-switched version with infrared motion detector with a 90° angle of coverage and 10 m reach. In the "Spot ONE SC" version, which is fitted with identical sensor, but also permits convenient wireless adjustment, interconnection and function control via Bluetooth and app. And as the "Spot ONE" model without sensor. In each case complete with the replaceable GU-10 LED lamp.

How much energy do you want to save?

With STEINEL, you have the choice when it comes to energy saving. Our lights without motion sensors use energy-efficient LEDs and provide you with full manual control – a solid foundation for energy efficiency. Want to save more? Then our lights with twilight switches are a good choice, automatically turning on in darkness and saving up to 50% energy. For the highest savings of up to 95%, we recommend our lights with motion sensors, which only activate when needed. Choose your preference and enjoy the combination of efficiency and convenience with STEINEL.

Application and installation Video

In this video, you can see how the spotlight is mounted using the example of the "Spot ONE SC" and which application options and functions this Bluetooth variant offers you.

Functions at a glance

The "Spot ONE SC" with motion detector and Bluetooth offers convenient controls and simple networking via the free STEINEL app. This version offers the following setting options:

Twilight setting: select the lighting conditions in which the light switches on when motion is detected
Timer: define the earliest time at which the light should switch on after twilight
Time setting: decide how long (5 secs – 1 hour) the light stays switched on after motion is detected
Continuous light: switches the light on for max. 4 hours, without detecting motion
NightAutomatic: Light automatically switches on at dusk and automatically switches off at dawn
Night economy mode: define a period of time at night, during which the “NightAutomatic” function is switched off

The Spot ONE in three versions

1. Spot ONE S: with motion detector
2. Spot ONE SC: with motion detector and Bluetooth Connect
3. Spot ONE: without motion detector

The Connect version offers easy networking and setting conveniently via app.

20.000 h

3000K warm-white

38°

Infrared sensor 90°

max. 10 m

IP44

2 - 2000 lux (via App)

Light source replaceable by end user

Control gear not exchangeable

Application, place: Outdoors
Installation: Surface wiring
Article number: 058630
PU1, net weight: 0,496 kg
Luminous flux total product: 512 lm
Colour temperature: 3000 K
With motion detector: Yes
Interconnection via: Bluetooth
Output: 7,9 W

General

Dimensions (L x W x H)	175 x 97 x 98 mm
With lamp	Yes, LED lamp
With motion detector	Yes
Manufacturer's Warranty	3 years
Settings via	Bluetooth
Version	with motion detector & Bluetooth
PU1, EAN	4007841058630
Application, place	Outdoors
Application, room	outdoors, all round the building, terrace / balcony, courtyard & driveway
Colour	Anthracite

Fixation / mounting

Includes corner wall mount	No
Installation site	wall
Installation	Wall, Surface wiring

Housing

Impact resistance	IK03
IP-rating	IP44
Protection class	I
Ambient temperature	from -20 up to 40 °C
Housing material	Aluminium
Cover material	Plastic, transparent

Electrical equipment

Mains power supply	220 – 240 V / 50 – 60 Hz
Output	7,9 W

Sensor technology

Mounting height max.	2,50 m
Slave mode selectable	Yes
Sneak-by guard	No
Capability of masking out individual segments	No
Electronic scalability	No
Mechanical scalability	No
Reach, radial	r = 2 m (3 m²)
Reach, tangential	r = 10 m (79 m²)
Optimum mounting height	2 m
Detection angle	90 °

Luminaire

Photo-cell controller	Yes
Luminous flux total product	512 lm
Measured luminous flux (360°)	512 lm
Total product efficiency	64,8 lm/W
Colour temperature	3000 K
Colour variation LED	SDCM5
Lamp	LED can be replaced
Service life LED L70B50 (25°)	> 20000 h
Soft light start	No
Continuous light	selectable
Colour Rendering Index CRI	= 81

General information

Article number	058630
European Article Number (EAN)	4007841058630

Functions

Functions	Manual ON / ON-OFF, Master/slave override, Timer
Twilight setting	2 – 2000 lx
Time setting	5 s – 60 Min.
Basic light level function	No
Main light adjustable	No
Twilight setting TEACH	Yes

Connection

Interconnection	Yes
Interconnection via	Bluetooth
App	STEINEL Connect App

General information

Product category

Sensor-switched LED floodlight
