Sensor-switched LED floodlight

XLED curved S Anthracite

Product Code: 012076

  • Spotlight with motion detector for optimal illumination of small areas
  • Compact and unobtrusive design with sensor in housing colour
  • Never change bulbs again thanks to 50,000 hours LED life (approx. 30 years at 4.5 hours/day)

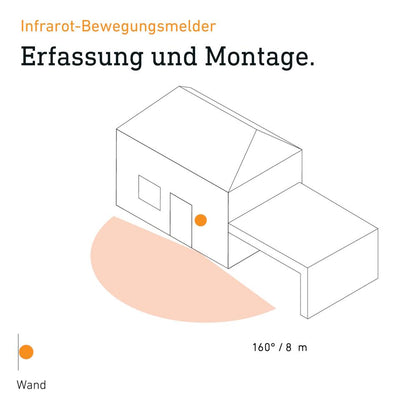

  • Automatic light thanks to 160 ° Infrared sensor with up to 8 m detection of movement
  • Spotlight head can be swivelled horizontally by 60°, incl. cover sticker for exact adjustment of the detection area
  • Warm white light (3000 K) and long-life 9,3 W LEDs with 862 lm, with an illumination of max. 100 sqm, max. 4m mounting height
  • Incl. mounting accessories - plastic-free packaging

Pairs well with
How much energy do you want to save?
For beautiful houses, you need more beautiful spotlights.

How much energy do you want to save?

With STEINEL, you have the choice when it comes to energy saving. Our lights without motion sensors use energy-efficient LEDs and provide you with full manual control – a solid foundation for energy efficiency. Want to save more? Then our lights with twilight switches are a good choice, automatically turning on in darkness and saving up to 50% energy. For the highest savings of up to 95%, we recommend our lights with motion sensors, which only activate when needed. Choose your preference and enjoy the combination of efficiency and convenience with STEINEL.

For beautiful houses, you need more beautiful spotlights.

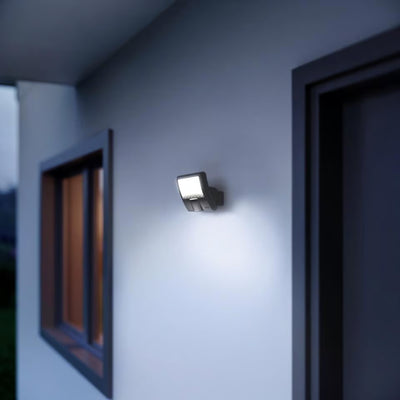

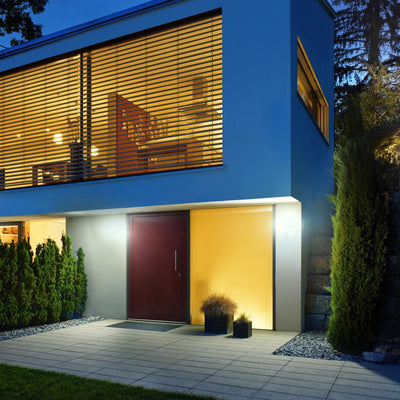

The compact XLED curved S outdoor spotlight is ideal for illuminating entrances and access paths. The functional spotlight not only fulfils safety requirements, but also creates a pleasantly charming lighting effect in combination with the house façade. Both the sensor and the entire outdoor spotlight present themselves in a pleasantly restrained, unobtrusive look, leaving the light to play the clear leading role in the skilful staging around the house and courtyard.

How much energy do you want to save?

With STEINEL, you have the choice when it comes to energy saving. Our lights without motion sensors use energy-efficient LEDs and provide you with full manual control – a solid foundation for energy efficiency. Want to save more? Then our lights with twilight switches are a good choice, automatically turning on in darkness and saving up to 50% energy. For the highest savings of up to 95%, we recommend our lights with motion sensors, which only activate when needed. Choose your preference and enjoy the combination of efficiency and convenience with STEINEL.

For beautiful houses, you need more beautiful spotlights.

The compact XLED curved S outdoor spotlight is ideal for illuminating entrances and access paths. The functional spotlight not only fulfils safety requirements, but also creates a pleasantly charming lighting effect in combination with the house façade. Both the sensor and the entire outdoor spotlight present themselves in a pleasantly restrained, unobtrusive look, leaving the light to play the clear leading role in the skilful staging around the house and courtyard.

Icon

36 years (Ø 4,5h / day)

Icon

3000K warm-white

Icon

infrared sensor 160°

Icon

max. 8 m

Icon

IP44

Icon

2 - 1000 lux

Icon

2 sec - 70 min

Icon

Light source not exchangeable

Icon

Control gear not exchangeable

  • Application, place: Outdoors

  • Installation: Surface wiring

  • Article number: 012076

  • PU1, net weight: 0,39 kg

  • Luminous flux total product: 862 lm

  • Colour temperature: 3000 K

  • With motion detector: Yes

  • Output: 9,3 W

Product dimension

General

Dimensions (L x W x H)120 x 160 x 107 mm
With lampYes, STEINEL LED system
With motion detectorYes
Manufacturer's Warranty3 years
Settings viaPotentiometers
VersionAnthracite
PU1, EAN4007841012076
Application, placeOutdoors
Application, roomoutdoors, all round the building, terrace / balcony
ColourAnthracite

Fixation/ mounting

Installation sitewall
InstallationWall, Surface wiring

Housing

Impact resistanceIK03
IP-ratingIP44
Protection classII
Ambient temperaturefrom -20 up to 40 °C
Housing materialPlastic
Cover materialPlastic, opal

Electrical equipement

Mains power supply220 – 240 V / 50 – 60 Hz
Power consumption0,5 W
Output9,3 W

Sensor technology

Mounting height max.4,00 m
Sneak-by guardYes
Capability of masking out individual segmentsNo
Electronic scalabilityNo
Mechanical scalabilityNo
Reach, radialr = 4 m (22 m²)
Reach, tangentialr = 8 m (89 m²)
Optimum mounting height2 m
Detection angle160 °

Luminaire

Photo-cell controllerYes
Luminous flux total product862 lm
Measured luminos flux (360°)862 lm
Total product efficiency93 lm/W
Colour temperature3000 K
LampLED cannot be replaced
Service life LED L70B50 (25°)> 60000 h
Drop in luminous flux in accordance with LM80L70B10
LED cooling systemPassive Thermo Control
Soft light startNo
Colour Rendering Index CRI= 82
Energy efficiency class of light sourceF

General information

Article number012076
European Article Number (EAN)4007841012076
Product categorySensor-switched LED floodlight

Functions

Twilight setting2 – 1000 lx
Time setting2 s – 70 Min.
Basic light level functionNo
Main light adjustableNo
Twilight setting TEACHNo

Connection

InterconnectionNo
