How much energy do you want to save?
Advantages of Bluetooth Connect

How much energy do you want to save?

With STEINEL, you have the choice when it comes to energy saving. Our lights without motion sensors use energy-efficient LEDs and provide you with full manual control – a solid foundation for energy efficiency. Want to save more? Then our lights with twilight switches are a good choice, automatically turning on in darkness and saving up to 50% energy. For the highest savings of up to 95%, we recommend our lights with motion sensors, which only activate when needed. Choose your preference and enjoy the combination of efficiency and convenience with STEINEL.

The evolution of a success story.

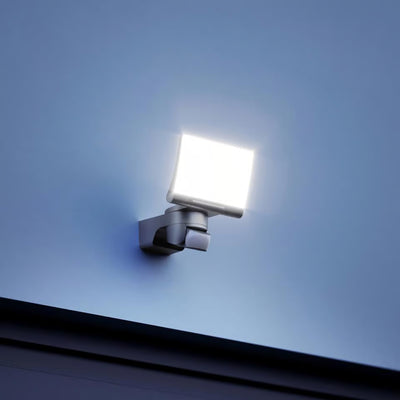

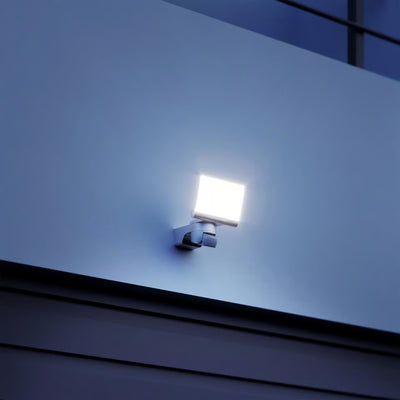

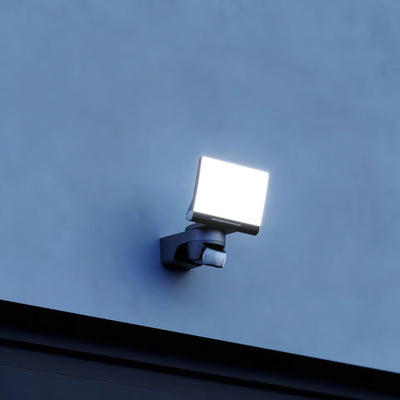

The moveable sensor-switched outdoor floodlight with fully swivelling LED panel in a classy opal look. The XLED home 2 SC sensor-switched floodlight comes in a sophisticated design. It is not just an eye-catcher, but also a truly talented mover. Thanks to the fully swivelling LED panel, every corner of the entrance area can be illuminated with flexibility and in exactly the way required. The highly efficient LED technology coupled with the opal cover provides maximum lighting comfort. As an individual floodlight including Bluetooth function or interconnected with the slave version, the innovative new generation of the successful XLED home series is available in white and black.

Advantages of Bluetooth Connect

  • Remotely controllable at the touch of a finger. Via app, you can conveniently make all settings on your smartphone.
  • Intelligent luminaire groups. If one luminaire in the group detects movement, all the others come on synchronously. New settings are always synchronised directly.
  • Network all luminaires around the house wirelessly. Connect lights from STEINEL are simply networked together via Bluetooth without the need for cables.
  • Many of our products already speak Bluetooth - and the trend is rising. And they can all be networked with one another - whether light or spotlight.

How much energy do you want to save?

With STEINEL, you have the choice when it comes to energy saving. Our lights without motion sensors use energy-efficient LEDs and provide you with full manual control – a solid foundation for energy efficiency. Want to save more? Then our lights with twilight switches are a good choice, automatically turning on in darkness and saving up to 50% energy. For the highest savings of up to 95%, we recommend our lights with motion sensors, which only activate when needed. Choose your preference and enjoy the combination of efficiency and convenience with STEINEL.

The evolution of a success story.

The moveable sensor-switched outdoor floodlight with fully swivelling LED panel in a classy opal look. The XLED home 2 SC sensor-switched floodlight comes in a sophisticated design. It is not just an eye-catcher, but also a truly talented mover. Thanks to the fully swivelling LED panel, every corner of the entrance area can be illuminated with flexibility and in exactly the way required. The highly efficient LED technology coupled with the opal cover provides maximum lighting comfort. As an individual floodlight including Bluetooth function or interconnected with the slave version, the innovative new generation of the successful XLED home series is available in white and black.

Advantages of Bluetooth Connect

  • Remotely controllable at the touch of a finger. Via app, you can conveniently make all settings on your smartphone.
  • Intelligent luminaire groups. If one luminaire in the group detects movement, all the others come on synchronously. New settings are always synchronised directly.
  • Network all luminaires around the house wirelessly. Connect lights from STEINEL are simply networked together via Bluetooth without the need for cables.
  • Many of our products already speak Bluetooth - and the trend is rising. And they can all be networked with one another - whether light or spotlight.
Icon

long life LED 25.000 h

Icon

3000K warm-white

Icon

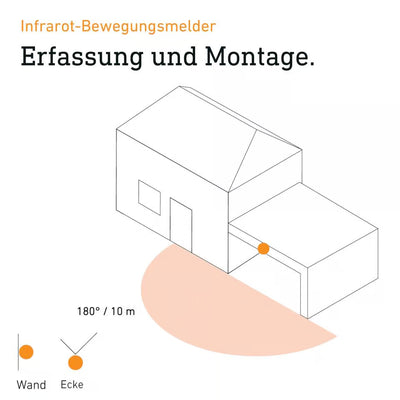

infrared sensor 180°

Icon

max. 10 m

Icon

IP44

Icon

180° horizontal, 180° vertikal

Icon

180° horizontal, 90° vertical

Icon

2 - 2000 lux

Icon

5 sec - 60 min

  • Application, place: Outdoors

  • Installation: Surface wiring

  • Article number: 065447

  • PU1, net weight: 0,576 kg

  • Luminous flux total product: 1550 lm

  • Colour temperature: 3000 K

  • With motion detector: Yes

  • Interconnection via: Bluetooth

  • Output: 13,8 W

Product dimension

General

Dimensions (L x W x H)161 x 180 x 218 mm
With lampYes, STEINEL LED system
With motion detectorYes
Manufacturer's Warranty5 years
Settings viaBluetooth
Versionblack
PU1, EAN4007841065447
Application, placeOutdoors
Application, roomoutdoors, all round the building, terrace / balcony, courtyard & driveway
Colourblack

Fixation/ mounting

Includes corner wall mountNo
Installation sitewall, corner
InstallationSurface wiring, corner, Wall

Housing

Impact resistanceIK03
IP-ratingIP44
Protection classII
Ambient temperaturefrom -20 up to 40 °C
Housing materialHCMC
Cover materialPlastic, opal

Electrical equipement

Mains power supply220 – 240 V / 50 – 60 Hz
Output13,8 W

Sensor technology

Mounting height max.4,00 m
Capability of masking out individual segmentsYes
Reach, radialr = 5 m (39 m²)
Reach, tangentialr = 10 m (157 m²)
Optimum mounting height2 m
Detection angle180 °

Luminaire

Photo-cell controllerYes
Luminous flux total product1550 lm
Measured luminos flux (360°)1550 lm
Colour temperature3000 K
Colour variation LEDSDCM3
LampLED cannot be replaced
LED cooling systemHCMC (High Conductive Magnesium Composite)
Soft light startNo
Continuous lightselectable
Colour Rendering Index CRI= 82
Energy efficiency class of light sourceE

General information

Article number065447
European Article Number (EAN)4007841065447

Functions

FunctionsGroup parameterisation, Manual ON / ON-OFF, Neighbouring group function, Master/slave override, Night economy mode, Timer
Twilight setting2 – 2000 lx
Time setting5 s – 60 Min.
Basic light level functionNo
Twilight setting TEACHYes

Connection

InterconnectionYes
Type of interconnectionMaster/master, Master/slave
Interconnection viaBluetooth

General information

Product categorySensor-switched LED floodlight
