Solar light

XSolar L-S White

Product Code: 671016

  • Solar light with motion detector, ideal for garden walls and outdoor walls without power connection
  • Fast and flexible installation even in places without cable connection, 0€ electricity costs for 365 days of light a year
  • Thanks to the monocrystalline solar panel, the powerful lithium-ferrum battery charges optimally even in cloudy weather and with few hours of sunlight, 2500 mAh capacity for up to 60 days of light reserve
  • Automatic light thanks to 140 ° Infrared sensor with up to 8 m detection of movement
  • Functions: adjustable basic light in the morning and evening hours, pleasant soft light start, swivelling solar and LED panel, separate mounting of solar panel and LED panel possible
  • Warm white light (3000 K) with long-life 150 lm LED light system (50. 000 h LED life), with an illumination of 30 sqm.
  • Incl. 6m extension cable and mounting accessories - plastic-free packaging
Color
Color: White

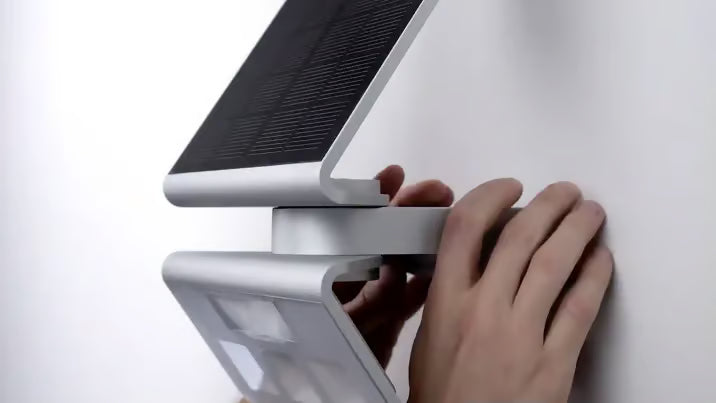

No energy costs. No power connection. No compromising.

Never again become agitated over solar lights that let you down: developing the XSolar, STEINEL now has the first solar light that always works. In technical terms, it combines the best components – from the highly efficient monocrystalline solar panel, the high-performance infrared sensor and the temperature-resistant rechargeable battery providing lighting availability for 60 days to the intelligent microprocessor control system – reliably illuminating up to 30 sq.m. of your outdoor space with bright LED light. 365 days a year. In any weather. And zero energy costs. This makes it the smartest solution for mounting on garden walls, external walls and wherever there's no power connection available.

Icon

Light 365 days of the year

Icon

30 qm

Icon

3000K warm-white

Icon

infrared sensor 140°

Icon

max. 8 m

Icon

IP44

Icon

2 lux

Icon

ideal 1,8 m

Icon

long life LED 25.000 h

  • Application, place: Outdoors

  • Installation: Surface wiring

  • Article number: 671006

  • PU1, net weight: 1,1 kg

  • Colour temperature: 3000 K

  • With motion detector: Yes

  • Output: 1,2 W

Product dimension

General

Dimensions (L x W x H)187 x 189 x 298 mm
With lampYes, STEINEL LED system
With motion detectorYes
Manufacturer's Warranty3 years
Settings viaPotentiometers
Versionwhite
PU1, EAN4007841671006
Application, placeOutdoors
Application, roomoutdoors, front door, all round the building, terrace / balcony, courtyard & driveway
Colourwhite

Fixation/ mounting

Installation sitewall
Included extension cable6 m

Housing

Impact resistanceIK03
IP-ratingIP44
Protection classIII
Ambient temperaturefrom -20 up to 40 °C
Housing materialPlastic
Cover materialPlastic, transparent

Electrical equipement

Power supply, detailSolar supply, no mains power required, Lithium-iron-phosphate rechargeable battery 2500 mAh
Output1,2 W
Battery chargeab - 20°
Akku-Funktionab - 20

Sensor technology

Mounting height max.2,00 m
Sneak-by guardYes
Capability of masking out individual segmentsNo
Reach, radialr = 2 m (5 m²)
Reach, tangentialr = 8 m (78 m²)
Detection angle140 °

General information

Article number671006
European Article Number (EAN)4007841671006
Basic light level function in per cent3 %
Basic light level function percentage, from3 %
Basic light level function percentage, up to3 %

Luminaire

Photo-cell controllerYes
Measured luminos flux (360°)150 lm
Colour temperature3000 K
Colour variation LEDSDCM5
Colour Rendering Index80-89
LampLED cannot be replaced
LED life expectancy (max. °C)50000 h
Drop in luminous flux in accordance with LM80L70B10
LED cooling systemPassive Thermo Control
Soft light startNo

Functions

FunctionsMotions sensor
Twilight setting2 lx
Time setting10 s – 0,5 Min.
Basic light level functionYes
Basic light level function timeall night

General information

Product categorySolar light
