Solar light

XSolar L-S Anthracite

Product Code: 671019

No energy costs. No electricity connection. No compromises. XSolar L-S sensor LED light. Ideal for gardens, terraces and outside walls. No power connection required, 140° angle of coverage, 3000 K, provides bright light 365 days a year. Powerful IR sensor. Intelligent microprocessor. Temperature-resistant lithium-ferrum battery with 60-day light reserve. Illumination up to 30 sqm.

Color: Anthracite

Silver
White
Anthracite

Product variants

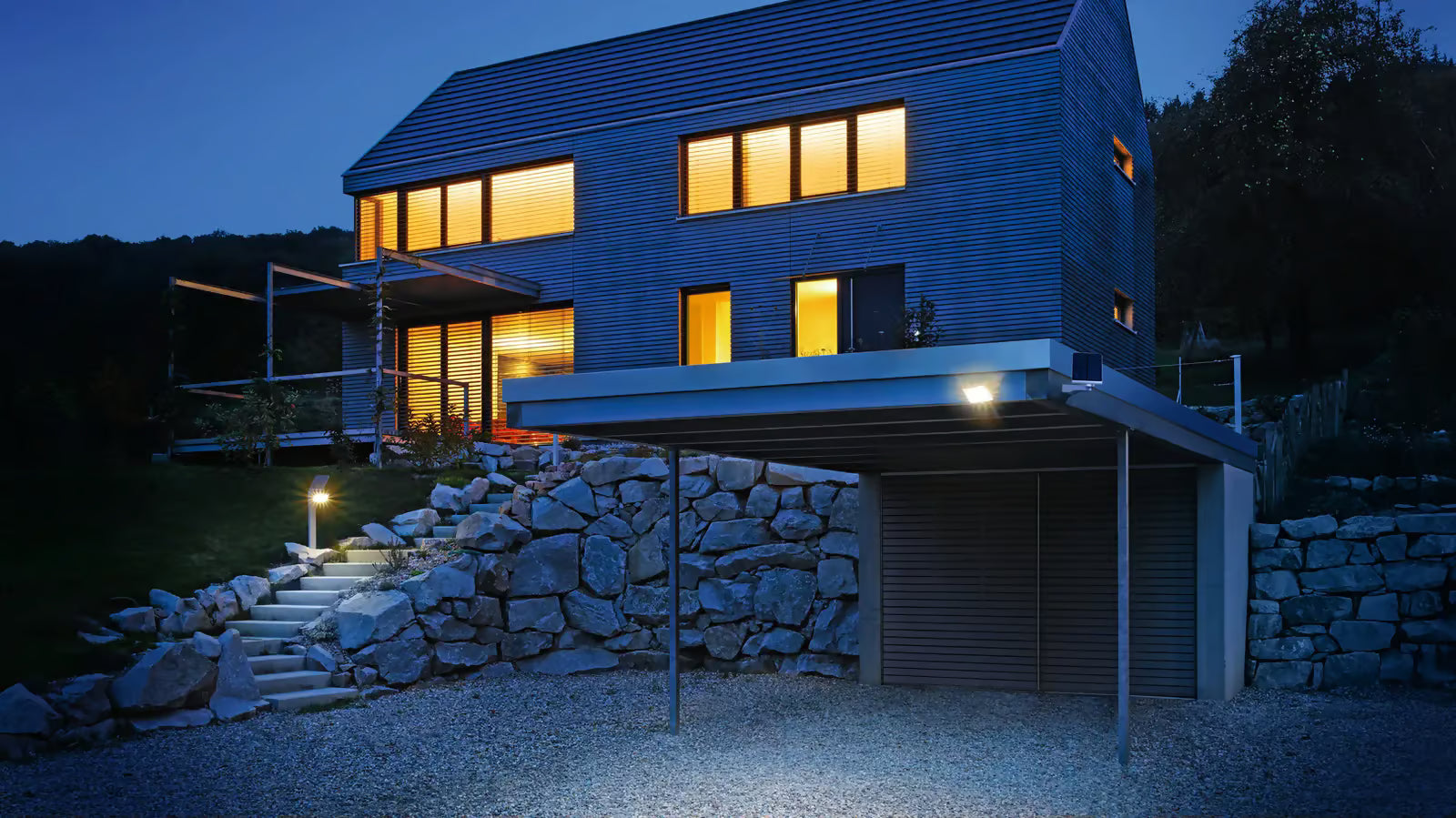

No energy costs. No electricity connection. No compromises.

No more hassle about unusable solar lights: With the XSolar, STEINEL has developed the first solar light that always works. It combines the best technical components - from the highly efficient monocrystalline solar panel, the powerful infrared sensor and the temperature-resistant rechargeable battery with 60-day light reserve to the intelligent microprocessor control system - to reliably supply your outdoor area with bright LED light over an area of up to 30 square metres. 365 days a year. In all weathers. And 0,- Euro electricity costs. This makes it the most elegant solution for mounting on garden walls, outside walls and wherever there is no electricity connection available.

Light 365 days of the year

30 qm

3000K warm-white

infrared sensor 140°

max. 8 m

IP44

2 lux

ideal 1,8 m

long life LED 25.000 h

Application, place: Outdoors
Installation: Surface wiring
Article number: 085698
PU1, net weight: 1,5 kg
Colour temperature: 3000 K
With motion detector: Yes
Output: 1,2 W

General

Dimensions (L x W x H)	187 x 189 x 298 mm
With lamp	Yes, STEINEL LED system
With motion detector	Yes
Manufacturer's Warranty	5 years
Settings via	Potentiometers
Version	Anthracite
PU1, EAN	4007841085698
Application, place	Outdoors
Application, room	outdoors, front door, all round the building, terrace / balcony, courtyard & driveway
Colour	Anthracite

Fixation/ mounting

Installation site	wall
Included extension cable	6 m

Housing

Impact resistance	IK03
IP-rating	IP44
Protection class	III
Ambient temperature	from -20 up to 40 °C
Housing material	Plastic
Cover material	Plastic, transparent

Electrical equipment

Power supply, detail	Lithium-iron-phosphate rechargeable battery 2500 mAh, Solar supply, no mains power required
Output	1,2 W
Battery charge	ab - 20°
Akku-Funktion	ab - 20

Sensor technology

Mounting height max.	2,00 m
Sneak-by guard	Yes
Capability of masking out individual segments	No
Reach, radial	r = 2 m (5 m²)
Reach, tangential	r = 8 m (78 m²)
Detection angle	140 °

General information

Article number	085698
European Article Number (EAN)	4007841085698
Basic light level function in per cent	3 %
Basic light level function percentage, from	3 %
Basic light level function percentage, up to	3 %

Luminaire

Photo-cell controller	Yes
Measured luminos flux (360°)	150 lm
Colour temperature	3000 K
Colour Rendering Index	80-89
Lamp	LED cannot be replaced
LED life expectancy (max. °C)	50000 h
Drop in luminous flux in accordance with LM80	L70B10
LED cooling system	Passive Thermo Control
Soft light start	No

Functions

Functions	Motions sensor
Twilight setting	2 lx
Time setting	10 s – 1 Min.
Basic light level function	Yes
Basic light level function time	all night

General information

Product category

Solar light
