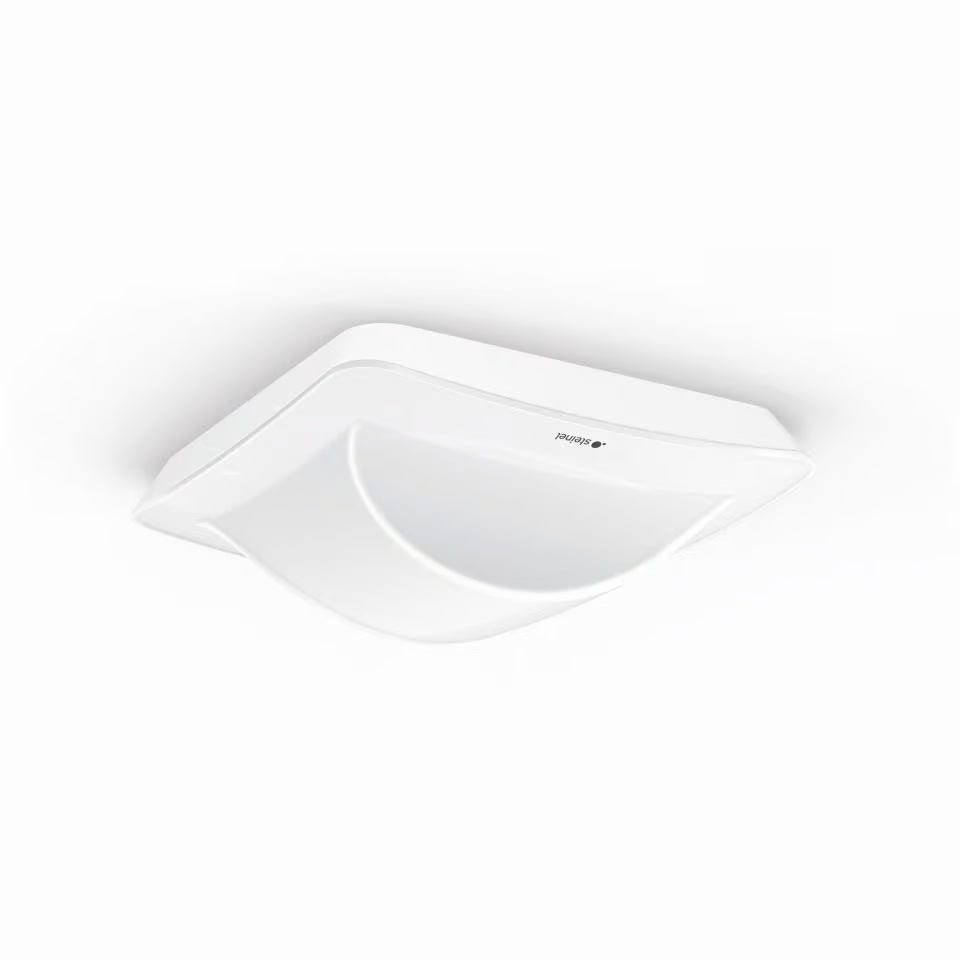

Presence detector - Professional Line

Hallway White / COM1 (on/off) / In-ceiling installation

Product Code: 086497

  • Perfect radial detection with a range of up to 25 m, ideal for long corridors and hallways
  • Customisable range that can be set individually in both direc
  • Control PRO II design for a modern and functional look that enables versatile applications
  • Bluetooth technology for simple connection and control via Bluetooth
  • Multiple interfaces, compatible with COM1, COM2, DALI-2 APC, DALI-2 IPD, KNX, IP and BT IPD
  • External light measurement required for black sensors that can be integrated via Bluetooth or KNX
Color
Color: White

Pairs well with
The specialist for long hallways and aisles.

The specialist for long hallways and aisles.

With the modern design of the Control PRO II family, the LuxMaster Hallway leaves a lasting impression in modern buildings. With a detection range of 25 x 3 m, it ensures fast switching. Ideal for use in long corridors and hallways. Setting, commissioning and networking are simple and wireless via Bluetooth. The LuxMaster can control up to 64 participants in a maximum of 4 groups. Selectable operating modes include broadcast, full and semi-automatic, light sensor operation or night-time economy mode. Time-based control with time- and day-dependent light profiles is also possible. Plug & play factory settings, scenes in Bluetooth with selection of operating mode, temporary scenes via DALI push button, constant light control, basic and main light as well as range limitation adjustable. An additional push button interface and DALI-2 IPD or BT IPD sensors are available for range extension.



The specialist for long hallways and aisles.

With the modern design of the Control PRO II family, the LuxMaster Hallway leaves a lasting impression in modern buildings. With a detection range of 25 x 3 m, it ensures fast switching. Ideal for use in long corridors and hallways. Setting, commissioning and networking are simple and wireless via Bluetooth. The LuxMaster can control up to 64 participants in a maximum of 4 groups. Selectable operating modes include broadcast, full and semi-automatic, light sensor operation or night-time economy mode. Time-based control with time- and day-dependent light profiles is also possible. Plug & play factory settings, scenes in Bluetooth with selection of operating mode, temporary scenes via DALI push button, constant light control, basic and main light as well as range limitation adjustable. An additional push button interface and DALI-2 IPD or BT IPD sensors are available for range extension.

The specialist for long hallways and aisles.

With the modern design of the Control PRO II family, the LuxMaster Hallway leaves a lasting impression in modern buildings. With a detection range of 25 x 3 m, it ensures fast switching. Ideal for use in long corridors and hallways. Setting, commissioning and networking are simple and wireless via Bluetooth. The LuxMaster can control up to 64 participants in a maximum of 4 groups. Selectable operating modes include broadcast, full and semi-automatic, light sensor operation or night-time economy mode. Time-based control with time- and day-dependent light profiles is also possible. Plug & play factory settings, scenes in Bluetooth with selection of operating mode, temporary scenes via DALI push button, constant light control, basic and main light as well as range limitation adjustable. An additional push button interface and DALI-2 IPD or BT IPD sensors are available for range extension.



The specialist for long hallways and aisles.

With the modern design of the Control PRO II family, the LuxMaster Hallway leaves a lasting impression in modern buildings. With a detection range of 25 x 3 m, it ensures fast switching. Ideal for use in long corridors and hallways. Setting, commissioning and networking are simple and wireless via Bluetooth. The LuxMaster can control up to 64 participants in a maximum of 4 groups. Selectable operating modes include broadcast, full and semi-automatic, light sensor operation or night-time economy mode. Time-based control with time- and day-dependent light profiles is also possible. Plug & play factory settings, scenes in Bluetooth with selection of operating mode, temporary scenes via DALI push button, constant light control, basic and main light as well as range limitation adjustable. An additional push button interface and DALI-2 IPD or BT IPD sensors are available for range extension.

Icon

max. 25 x 3 m

Icon

max. 2000 W

Icon

IP20

Icon

2 - 2000 lux

Icon

5 sec - 60 min

Icon

2 - 12 m

Icon

IQ-mode

Icon

Teach mode

Icon

connectable via bluetooth

  • Application, place: Indoors

  • Installation: In-ceiling installation

  • Detection angle: 360 °

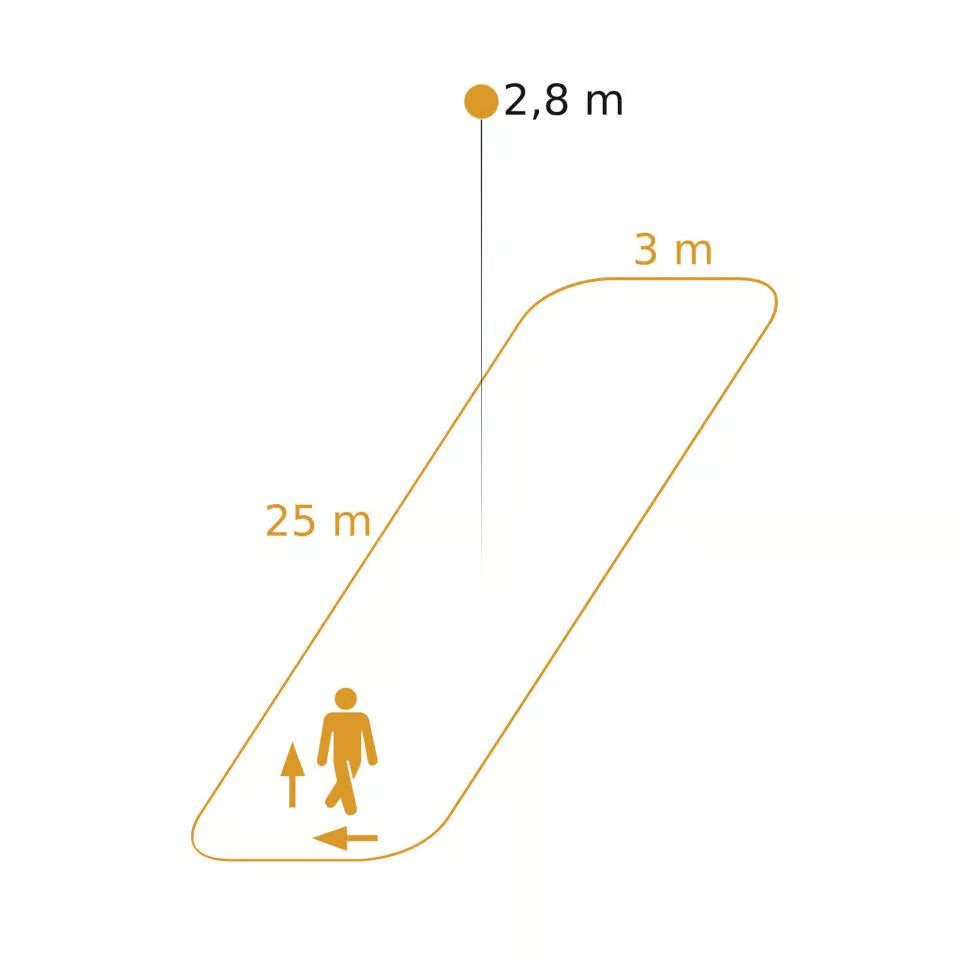

  • Reach, tangential: 25 x 3 m (75 m²)

  • Mounting height max.: 4,00 m

  • Version: COM1 - in-ceiling installation

  • Article number: 086497

  • PU1, net weight: 0,207 kg

  • Interconnection via: Bluetooth Mesh

Product dimension

General

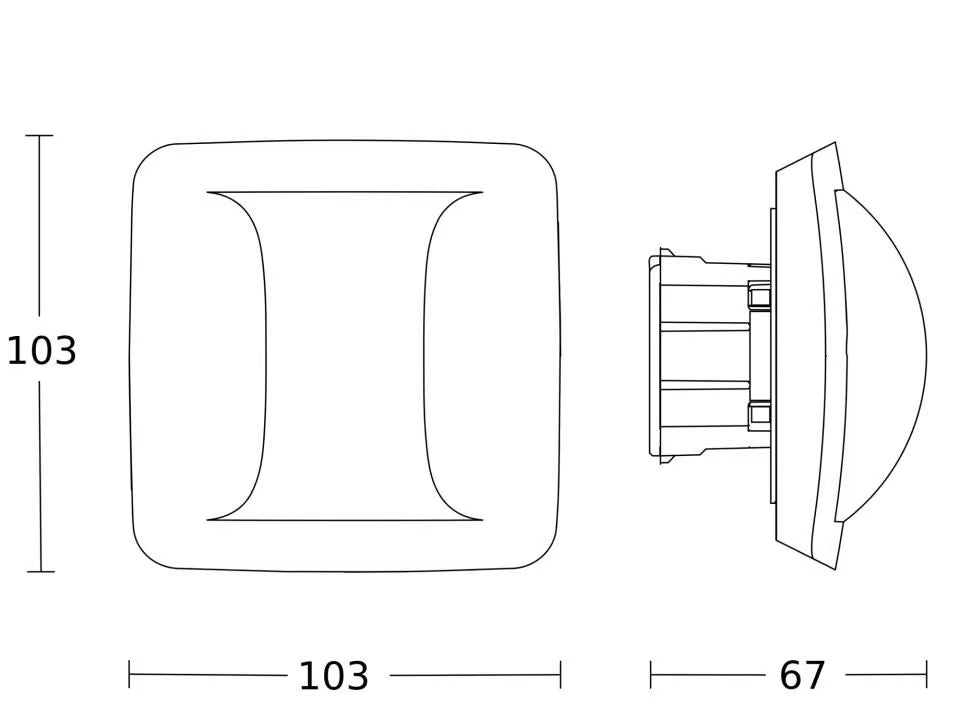

Dimensions (L x W x H)105 x 103 x 103 mm
With motion detectorYes
Manufacturer's Warranty5 years
Settings viaBluetooth Mesh
With remote controlNo
VersionCOM1 - in-ceiling installation
PU1, EAN4007841086497
TypePresence detector
Application, placeIndoors
Application, roomIndoors, corridor / aisle
Colourwhite
Colour, RAL9003

Fixation / mounting

Includes corner wall mountNo
Installation siteceiling
InstallationIn-ceiling installation, Ceiling

Housing

IP-ratingIP20
Ambient temperaturefrom -20 up to 50 °C
MaterialPlastic

Electrical equipment

Mains power supply220 – 240 V / 50 – 60 Hz
Switching output 1, resistive2000 W
Switching output 1, number of LEDs / fluorescent lamps8 pcs.
Switching output 1, floatingNo
Switching output 1, low-voltage halogen lamps2000 VA
Power consumption1 W

General information

Article number086497
European Article Number (EAN)4007841086497
Detection angleAisle, 360 °
Angle of aperture160 °
Transmitter power< 1 mW

Sensor technology

Technology, sensorsHigh frequency, Light sensor
Mounting height2 – 4 m
Mounting height max.4,00 m
Optimum mounting height2,8 m
HF-system5,8 GHz
Detectionalso through glass, wood and stud walls
Sneak-by guardYes
Capability of masking out individual segmentsNo
Electronic scalabilityYes
Mechanical scalabilityNo
Reach, radial25 x 3 m (75 m²)
Reach, tangential25 x 3 m (75 m²)

Functions

FunctionsGroup parameterisation, Semi-/fully automatic, Lighting scenario, Manual ON / ON-OFF, Neighbouring group function, Normal / test mode
Twilight setting2 – 2000 lx
Time setting10 s – 60 Min.
Basic light level functionNo
Main light adjustableYes
Twilight setting TEACHYes
Constant-lighting controlNo

Connection

InterconnectionYes
Interconnection viaBluetooth Mesh

General information

Product categoryPresence detector
