Presence detector - Professional Line

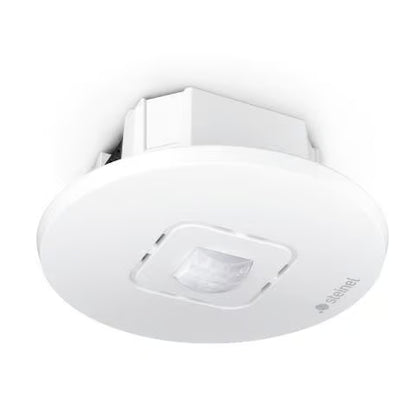

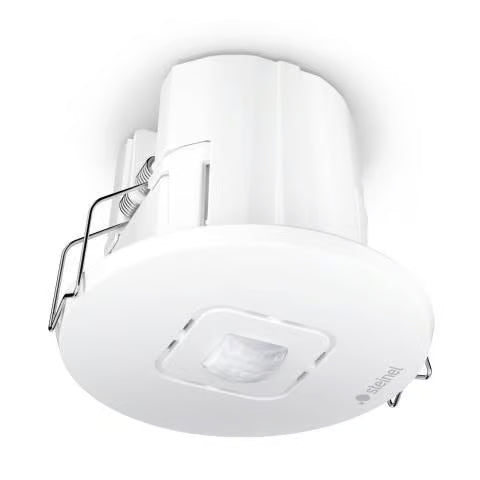

IR Micro Office 6m DALI-2 APC In-ceiling installation

Product Code: 067144

  • Perfectly suited for small rooms such as individual offices
  • Light management, e.g. constant light control, light scenes, semi-/full automatic control
  • Broadcast control of up to 20 dimmable DALI luminaires
  • Cover caps for detection limitation simply snap into place included
  • Commissioning and setting via STEINEL Connect app

Pairs well with
Focus on the essentials.

Sensors integrated in the Bluetooth network

STEINEL sensors show how to use energy intelligently. The technologically innovative and pioneering products maximise energy efficiency. Integrated into the Connected Lighting System, the maximum potential of building automation can be utilised.

Focus on the essentials.

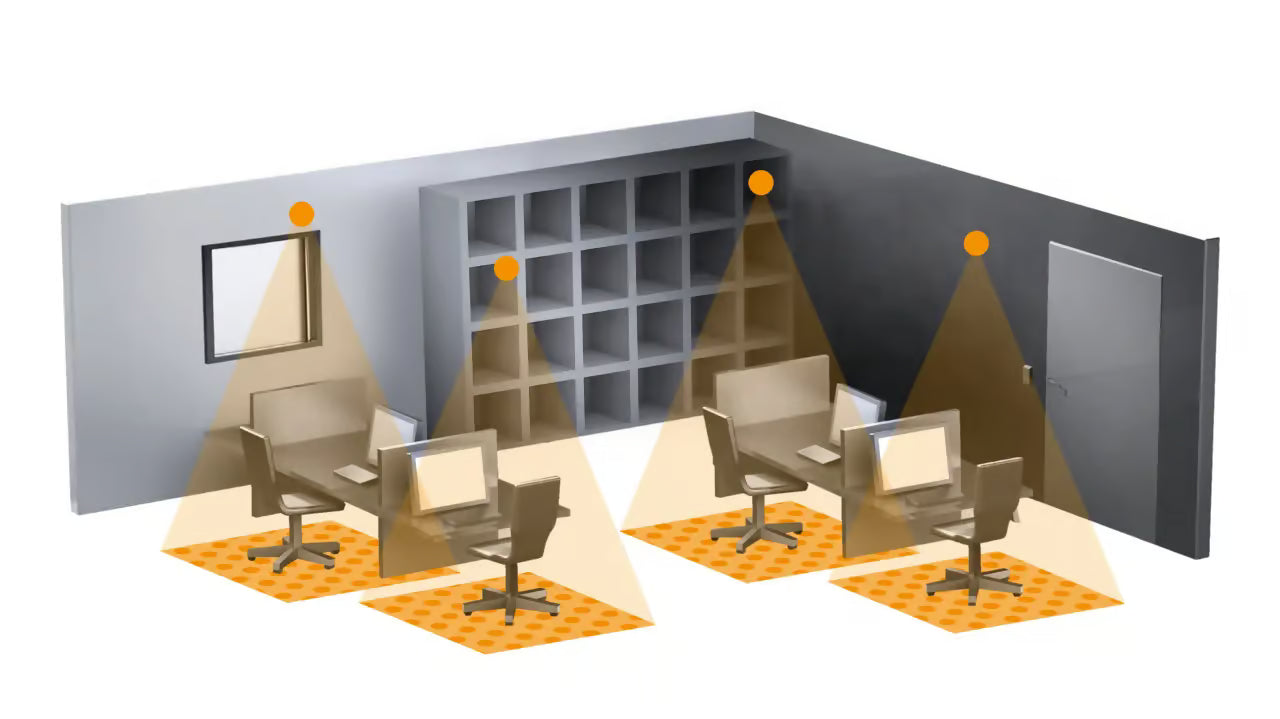

Demanded by architects and planners, made by STEINEL. The micro-precision lens measures just 15 x 15 mm. The 360° infrared presence detector covers 36 m². As a DALI-2 single master application controller, it controls up to 20 DALI devices in broadcast mode. It therefore offers optimum light management for individual room solutions, including constant light control. Settings and networking are easily realised via Bluetooth Mesh. This is our sensor in the DALI APC for simple light management in small individual offices. We have focussed on the standard functions and offer a product without frills. The IR Micro Office DALI APC is the perfect introduction to DALI lighting management.



Sensors integrated in the Bluetooth network

STEINEL sensors show how to use energy intelligently. The technologically innovative and pioneering products maximise energy efficiency. Integrated into the Connected Lighting System, the maximum potential of building automation can be utilised.

Focus on the essentials.

Demanded by architects and planners, made by STEINEL. The micro-precision lens measures just 15 x 15 mm. The 360° infrared presence detector covers 36 m². As a DALI-2 single master application controller, it controls up to 20 DALI devices in broadcast mode. It therefore offers optimum light management for individual room solutions, including constant light control. Settings and networking are easily realised via Bluetooth Mesh. This is our sensor in the DALI APC for simple light management in small individual offices. We have focussed on the standard functions and offer a product without frills. The IR Micro Office DALI APC is the perfect introduction to DALI lighting management.



Icon

infrared sensor

Icon

max. 4 x 4 m presence

Icon

Settings via App

Icon

connectable via bluetooth

Icon

DALI-2

Icon

CE

Icon

energy saving

Icon

manufacturer's warranty steinel.de/garantie

Icon

CE

  • Application, place: Indoors

  • Installation: In-ceiling installation

  • Detection angle: 360 °

  • Reach, tangential: 6 x 6 m (36 m²)

  • Mounting height max.: 5,00 m

  • Version: DALI-2 APC - in-ceiling installation

  • Article number: 067144

  • PU1, net weight: 0,079 kg

  • Interconnection via: Bluetooth Mesh

  • Package content: 1

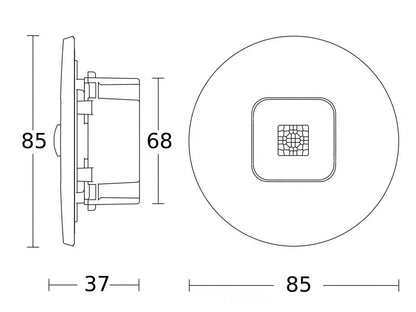

Product dimension

General

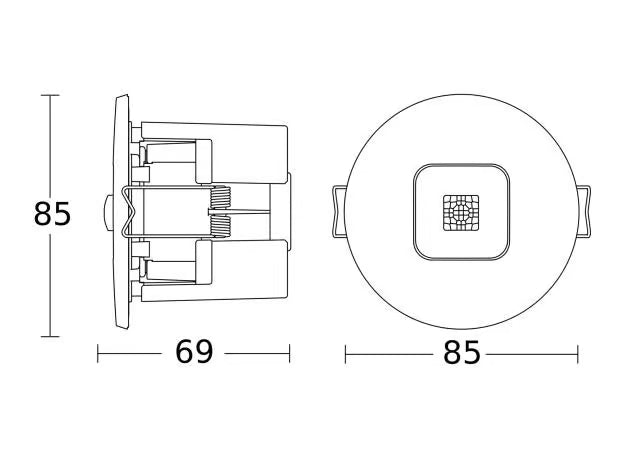

Dimensions (Ø x H)85 x 69 mm
With motion detectorYes
Manufacturer's Warranty5 years
Settings viaBluetooth
With remote controlNo
VersionDALI-2 APC - in-ceiling installation
PU1, EAN4007841067144
TypePresence detector
Application, placeIndoors
Application, roomIndoors, one-person office, function room / ancillary room, conference room / meeting room, duty room, recreation room, kitchenette
Colourwhite
Colour, RAL9003

Fixation / mounting

Includes corner wall mountNo
Installation siteceiling
InstallationIn-ceiling installation, Ceiling

Housing

IP-ratingIP20
Ambient temperaturefrom -25 up to 55 °C
MaterialPlastic

Electrical equipment

Mains power supply220 – 240 V / 50 – 60 Hz
Number of Dali users20
Steuerausgang, DaliBroadcast 1x20 electronic ballasts
With bus couplingNo
Type DALI outputSingle-Master

General information

Article number067144
European Article Number (EAN)4007841067144
Detection angle360 °
Angle of aperture90 °

Sensor technology

Technology, sensorspassive infrared, Light sensor
Mounting height2 – 5 m
Mounting height max.5,00 m
Optimum mounting height2,8 m
Sneak-by guardYes
Capability of masking out individual segmentsYes
Electronic scalabilityNo
Mechanical scalabilityYes
Reach, radial4 x 4 m (16 m²)
Reach, tangential6 x 6 m (36 m²)
Reach, presence4 x 4 m (16 m²)
Switching zones168 switching zones
Cover materialshrouds

Functions

FunctionsSemi-/fully automatic, Lighting scenario, Manual ON / ON-OFF, Normal / test mode, Neighbouring group function, TouchDIM function, Motions sensor, Constant-lighting control, Light sensor, Adjustable fade time when switching on and off, Constant-lighting control ON-OFF, Presence function, Presence detector logic
Twilight setting2 – 1000 lx
Time setting5 s – 60 Min.
Basic light level functionYes
Basic light level function time10s-60 min, all night, Brightness-controlled, OFF
Main light adjustable0 - 100 %

Connection

InterconnectionYes
Interconnection viaBluetooth Mesh

General information

Product categoryPresence detector

Data sheet (PDF, 1725 KB)

Start Downloading

Instruction Manual (PDF, 9 MB)
