LuxMaster HF 360-2 DALI-2 APC Concealed wiring

As a further development of the HF 360, the HF 360-2 also supplies digital data in addition to light switching. As a result, the HF 360-2 intelligent sensor in the KNX, IP and DALI-2 Input Device bus interfaces additionally measures temperature and humidity. The sensor's enhanced design is geared even more closely towards the modern look of STEINEL True Presence sensors. Conveniently interconnected and adjusted via Bluetooth, the HF 360-2 provides COM1, COM2, DALI-2 APC, DALI-2 IPD, KNX as well as IP interfaces, and it is also available as BT IPD (Slave) version. The discreet surveillance specialist provides reliable 360° HF detection that also penetrates wood, glass and stud walls and comes with a reach of up to 12 m. Suitable for mounting heights of up to 4 m.

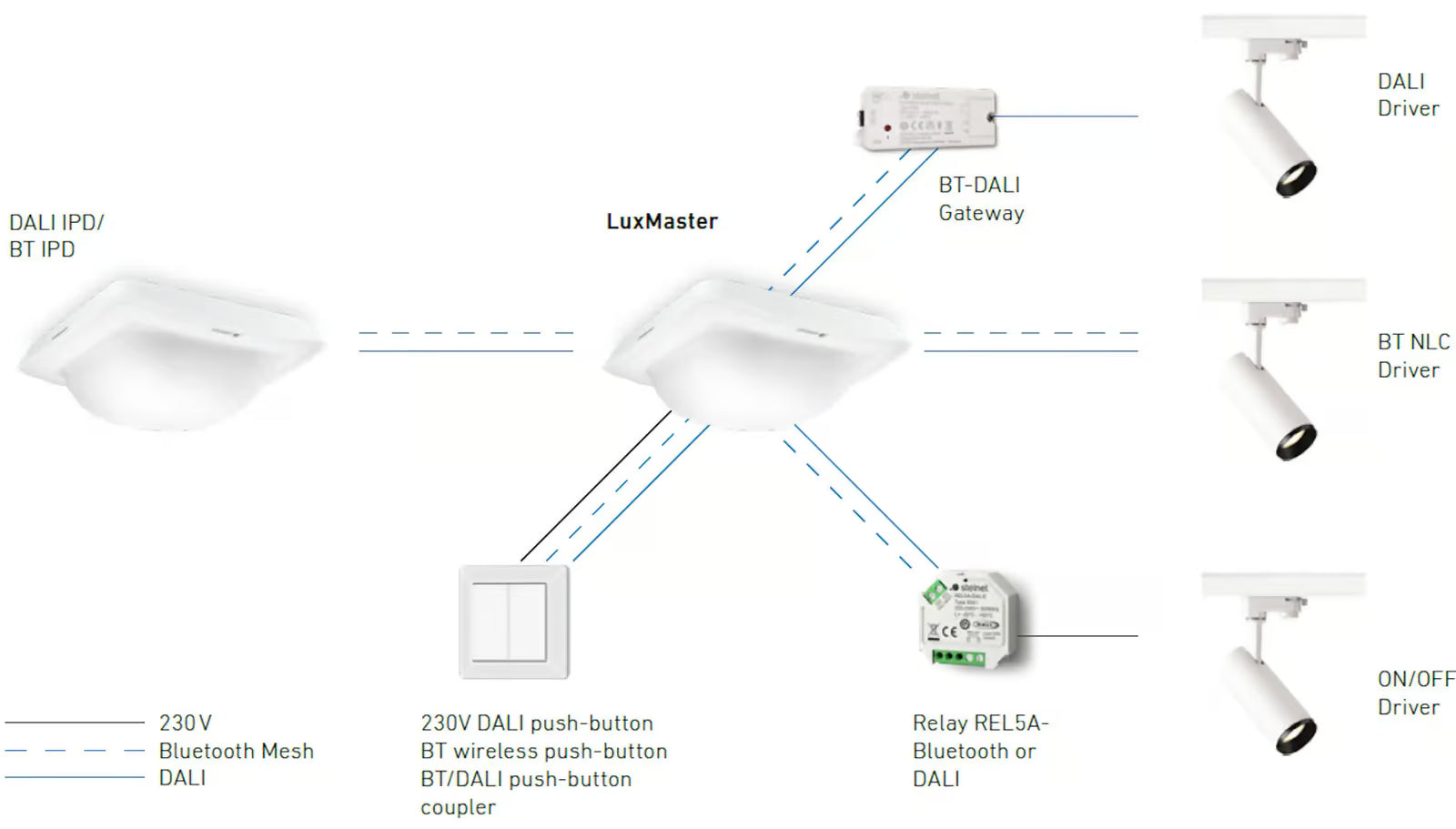

The LuxMaster series represents state-of-the-art DALI-2 lighting management for individual rooms. It solves every lighting task, from simple to complex. Combined with Bluetooth system components, the STEINEL DALI-2 system offers unrivalled flexibility.

• Easy to plan: LuxMaster combines bus voltage, sensor and control in a single device. This makes it the central intelligence in the system.
• Quick to set up: Fully automatic DALI-2 operating mode in broadcast mode with main and basic lighting functions set in the factory settings.
• And flexible for future expansion: Area extensions through sensor networking and retrofitting of system components via Bluetooth Mesh.

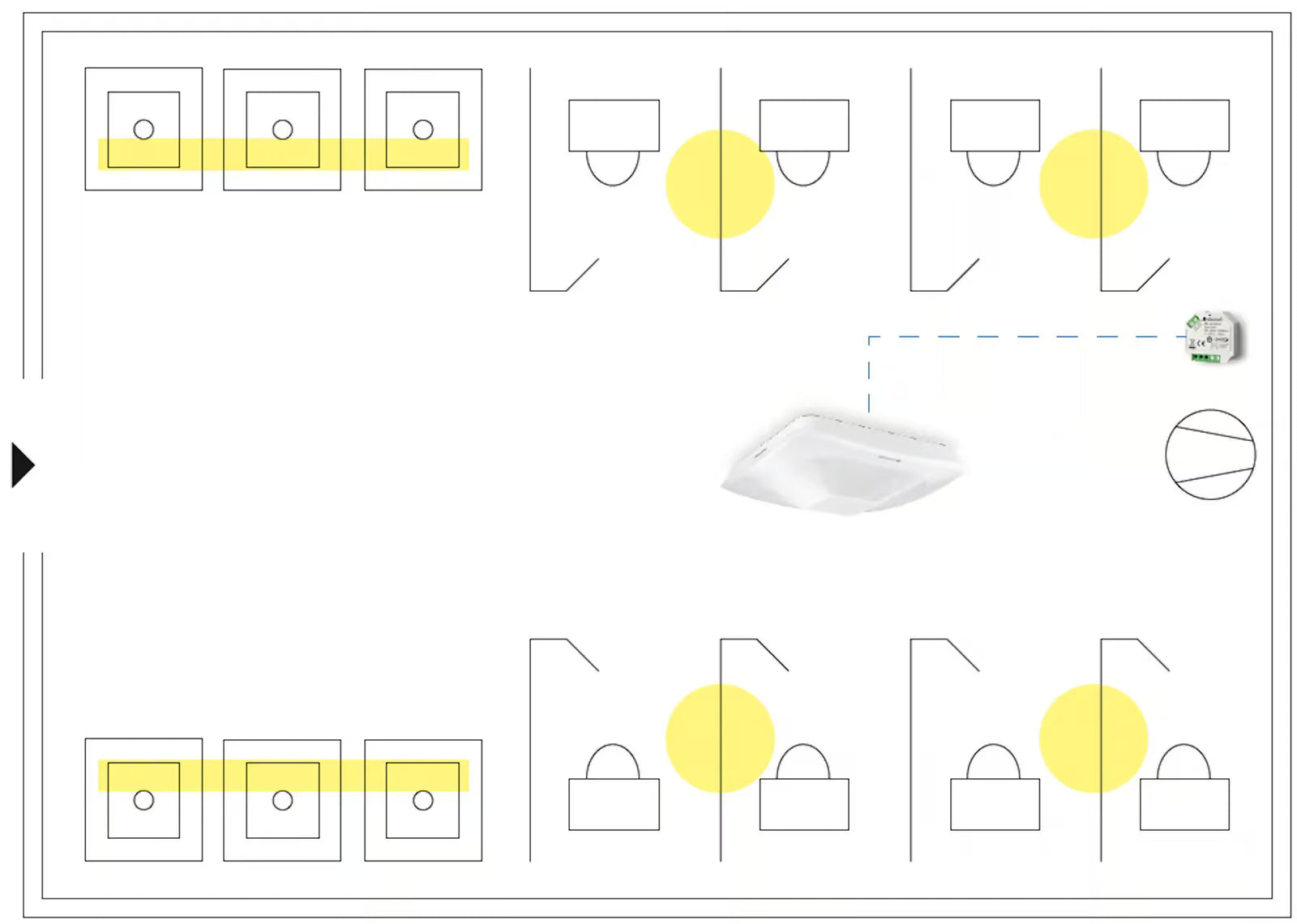

Toilet facilities are an excellent application for the LuxMaster HF 360-2. The diagram shows the control of a lighting group with a sensor. The integrated high-frequency technology enables reliable detection of movement even through lightweight walls. For safety reasons, a basic light is activated before the lighting is switched off completely, which is controlled by a second delay time. In addition, it is possible to switch a fan via a DALI or Bluetooth relay, thus sensibly expanding the functionality of the system.
