The idea behind
Car parks and underground car parks that are virtually carbon neutral and at the same time increase safety and comfort.
Car parks and underground car parks are usually open 24/7. Good illumination of all surfaces is important for users' sense of personal safety and for safely manoeuvring vehicles. However, if the light is permanently switched on here, valuable energy is wasted. Sensor-switched lighting in combination with intelligent networking and light switching provides a remedy.
As a pilot project, the car park at Heuried underground car park was equipped with 240 wirelessly networkable RS PRO Connect 5100 LEDs from STEINEL. By investing in a modern, energy-efficient lighting solution, car park operators have the opportunity for a high return on investment. At the same time, users enjoy more comfort and safety, which makes their stay in the underground car park more pleasant.
- Client: City of Zurich
- Location: Heuried residential area, Zurich/CH
- Construction status: in operation since 2019
- Pilot project on a parking level
- Installed: 240 x RS PRO Connect 5100 LED
- Services: software, hardware and services
92% lower energy costs. Even we were amazed.
The energy efficiency of LED sensor lighting can be significantly increased by "light intelligence". The car park deck of the underground garage was equipped with 240 wirelessly networkable RS PRO Connect 5100 LED lights from STEINEL with an output of 33 watts, with every second light being a slave version. The lights were divided into four lighting groups and intelligently controlled. Forming lighting groups, switching to a 10% background lighting mode after 1 minute in the event of absence and switching off completely after 15 minutes has led to a measurable energy saving of 92%.
The light accompanies the user on their way through the underground car park. The light is only switched on where it is actually needed. This ensures that no energy is wasted.

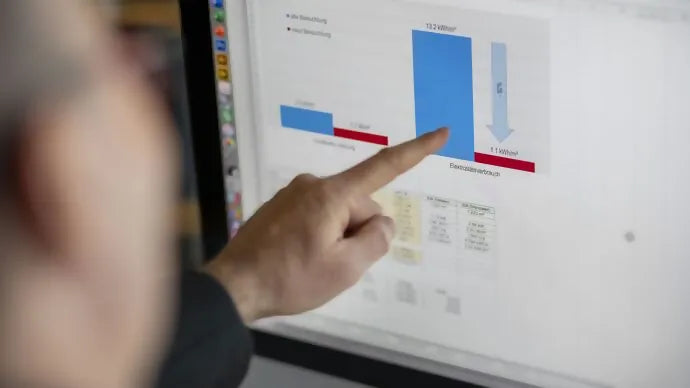

Full operation under 10 per cent
Installation of the RS PRO Connect 5100 LED has significantly improved lighting on the car park level. This makes the user experience much more pleasant. At the same time, measurements in practice have shown that electricity consumption has been reduced to 1.1 kWh/m², which is well below the current limit of 2.2 kWh/m². The measurements also showed that the lighting is only at full power 9% of the time and at a dimmed level 45.4% of the time. The lighting is in standby mode 45.6% of the time.
The energy consumption of the entire underground car park is expected to be reduced by 94.3 MWh per year.
With the new lighting solution, the lighting level has almost doubled on average from 120 to 220 lux.
The networked, intelligent lighting solution has resulted in drastic energy savings.

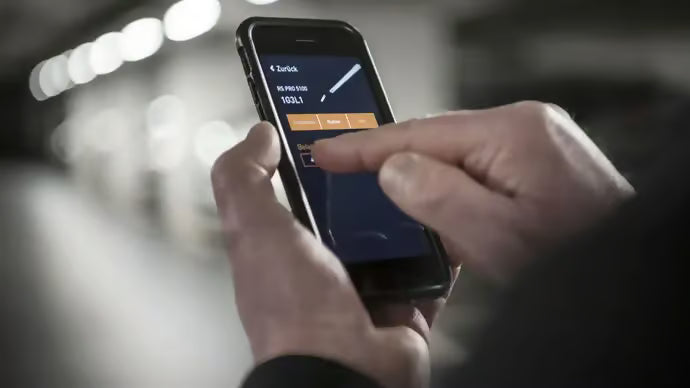

Easy networking and operation via app
To light an area as extensive as the parking level of an underground car park, it makes sense to form groups of lights. With the RS PRO Connect 5100 LED, no additional cables need to be laid for this purpose. The lights are simply connected to each other via Bluetooth using the intuitive STEINEL app. For each of these light groups, it is necessary to define a group master in the app. All the lights in a group then work the way the group master is configured. Other light functions, such as the neighbourhood function, as well as light parameters such as twilight setting, basic light level, main light and time settings can also be easily selected via the app. Practical: All light functions and settings are conveniently selected from the ground using the app. No ladder is required.
Products used

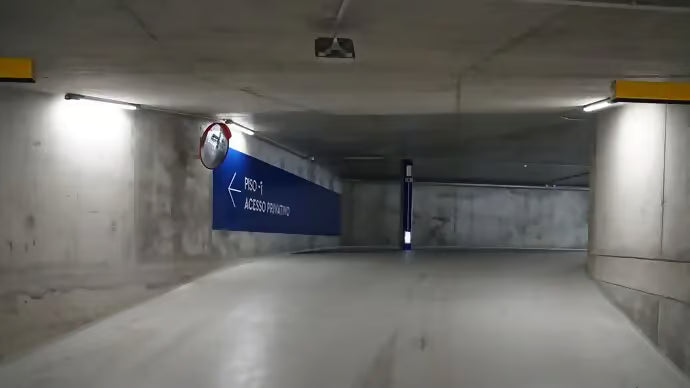

Parque Europa car park – Leiria, Portugal
Bright, safe and maximising energy savings - advance light and STEINEL swarm intelligence in the Parque Europa in Leiria, Portugal, provides needs-based switching and peace of mind with minimal energy consumption. The RS PRO 5100 SC, the RS PRO R10 SC and products from the XLED PRO ONE series were installed in the three-storey car park to provide sustainable lighting for stairwells and parking areas.
Other products for car parks

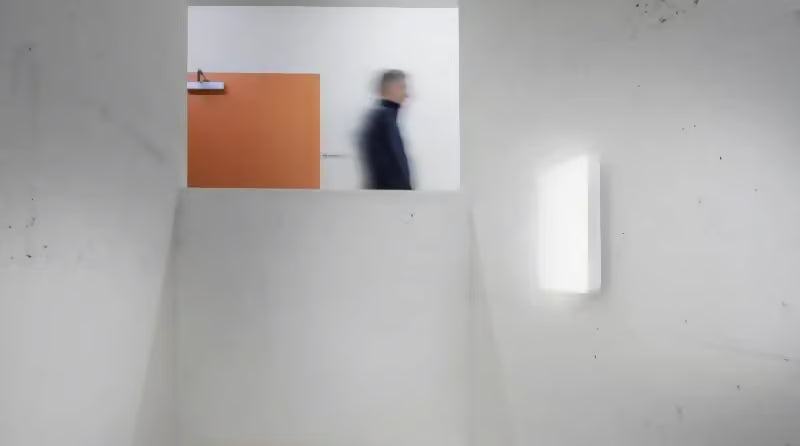

stairs
The networking of the RS PRO Connect 5100 LED via Bluetooth makes it possible, for example, to combine car park lighting with R series luminaires in the stairwell.
functional space
On the way to and from the car park, the lighting in the entrance can be linked to the car park lighting. Intelligent networkable lighting systems from STEINEL provide even more comfort and security for residents and users.

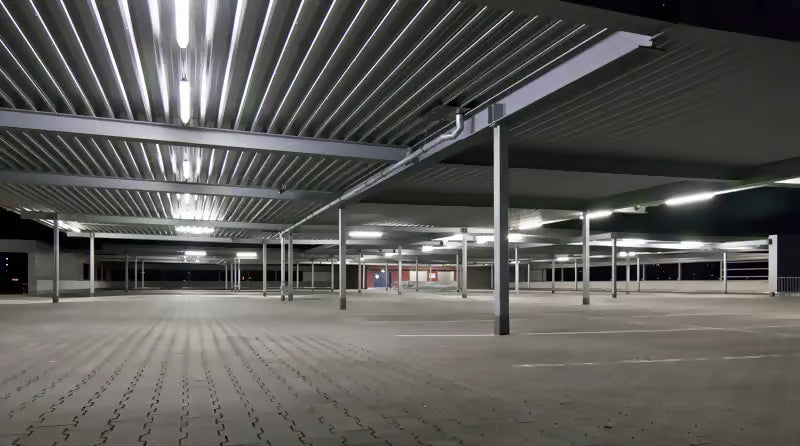

Outdoor area
Good outdoor lighting ensures greater safety and fewer accidents. Intelligent lighting solutions such as LED spotlights and lights from STEINEL are not only energy-efficient, but can also be cleverly networked.
Do you want to achieve a return on your car park lighting?
Your contact at STEINEL
Do you have a project and are you looking for the right contact person?
You will find the right person here.
-
