Product Code: 002800

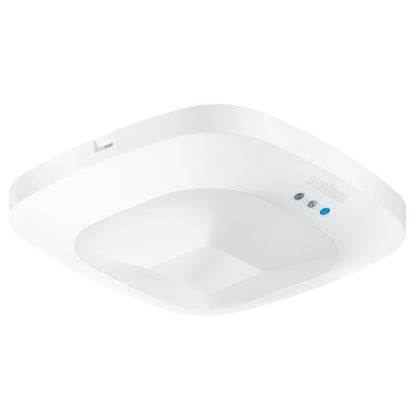

Doesn't miss a thing. HF-presence detector Presence Control PRO HF 360 COM1 for indoors, ideal for WCs with toilet cubicles, changing rooms, stairwells, multi-storey car parks, kitchens, installation height up to 3.5 m, for switching light 'ON' and 'OFF', 1 – 12 m reach, reach is electronically adjustable and can be limited in two directions, detection regardless of temperature, HF-sensor technology also detects movement through glass, wood and stud walls.

Pairs well with
You can hardly see it. But it sees everything.
You can hardly see it. But it sees everything.

You can hardly see it. But it sees everything.

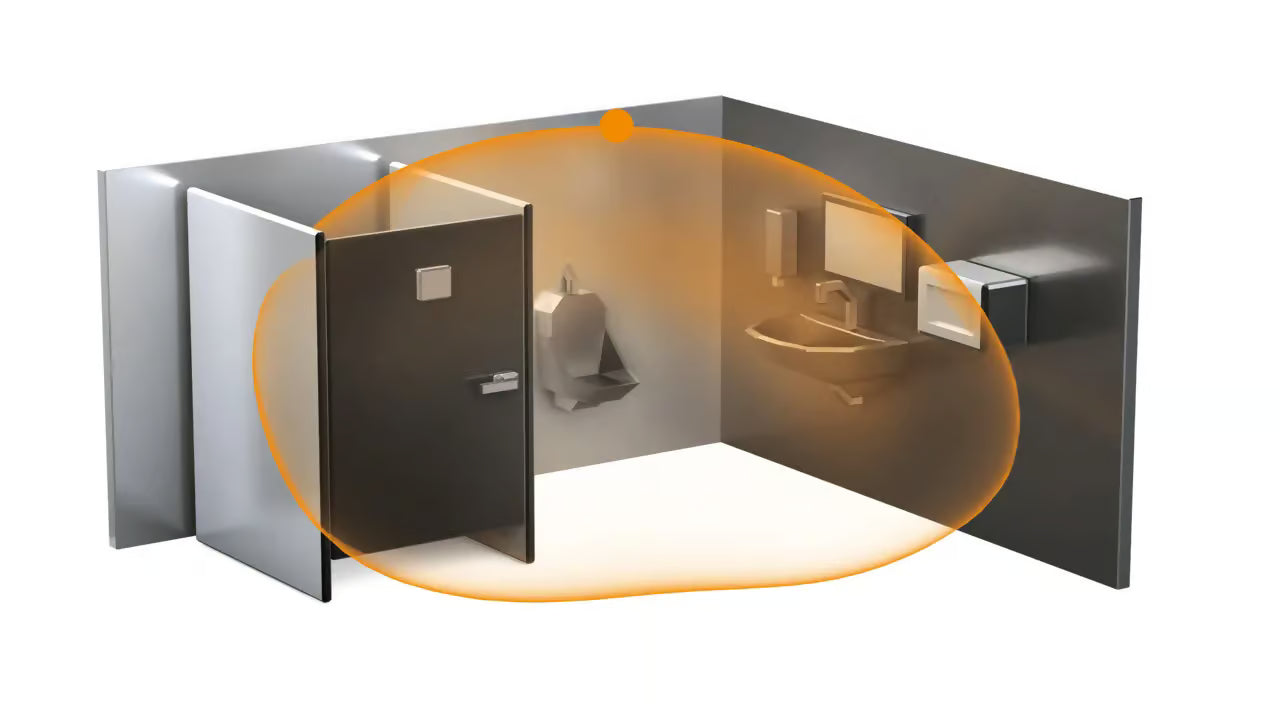

STEINEL's not only the pioneer of high-frequency sensor technology but also the first to use it successfully for presence detectors. With a whole host of benefits, specifically for applications in public areas, such as WC cubicles. Because HF works without any lens, the HF 360 is extremely slim and bears little resemblance with a "watchdog". This makes it hardly vulnerable to vandalism for example.

You can hardly see it. But it sees everything.

STEINEL's not only the pioneer of high-frequency sensor technology but also the first to use it successfully for presence detectors. With a whole host of benefits, specifically for applications in public areas, such as WC cubicles. Because HF works without any lens, the HF 360 is extremely slim and bears little resemblance with a "watchdog". This makes it hardly vulnerable to vandalism for example.

You can hardly see it. But it sees everything.

STEINEL's not only the pioneer of high-frequency sensor technology but also the first to use it successfully for presence detectors. With a whole host of benefits, specifically for applications in public areas, such as WC cubicles. Because HF works without any lens, the HF 360 is extremely slim and bears little resemblance with a "watchdog". This makes it hardly vulnerable to vandalism for example.

You can hardly see it. But it sees everything.

STEINEL's not only the pioneer of high-frequency sensor technology but also the first to use it successfully for presence detectors. With a whole host of benefits, specifically for applications in public areas, such as WC cubicles. Because HF works without any lens, the HF 360 is extremely slim and bears little resemblance with a "watchdog". This makes it hardly vulnerable to vandalism for example.

Icon

high frequency sensor 360°

Icon

max. Ø 12 m

Icon

max. 2000 W

Icon

IP20

Icon

ideal 2,5 - 3,5 m

Icon

indoor sensor

Icon

IQ-mode

Icon

Teach mode

Icon

energy saving

  • Application, place: Indoors

  • Installation: Concealed wiring

  • Detection angle: 360 °

  • Reach, tangential: Ø 12 m (113 m²)

  • Mounting height max.: 3,50 m

  • Version: COM1 - Concealed wiring

  • Article number: 002800

  • PU1, net weight: 0,184 kg

  • Interconnection via: Cable

  • Package content: 1

Product dimension

General

Dimensions (L x W x H)56 x 120 x 120 mm
Manufacturer's Warranty5 years

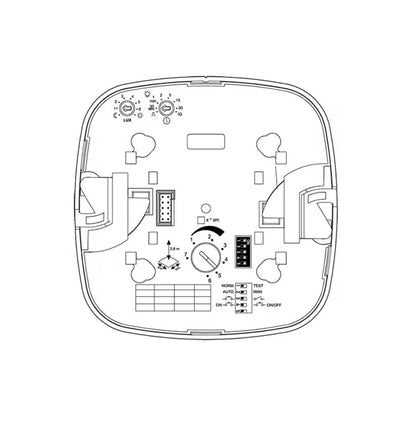

Settings viaRemote control, DIP switches, Potentiometers, Smart Remote
With remote controlNo
VersionCOM1 - Concealed wiring
PU1, EAN4007841002800
TypePresence detector
Application, placeIndoors
Application, roomfunction room / ancillary room, kitchenette, stairwell, WC / washroom, Indoors
Colourwhite
Colour, RAL9010
Package content1

Fixation/ mounting

Includes corner wall mountNo
Installation siteceiling
InstallationConcealed wiring, Ceiling

Housing

IP-ratingIP20
Ambient temperaturefrom -25 up to 55 °C
MaterialPlastic

Electrical equipement

Mains power supply230 V / 50 – 60 Hz
Fluorescent lamps, electronic ballast1500 W
Fluorescent lamps, uncorrected1000 VA
Fluorescent lamps, series-corrected1000 VA
Fluorescent lamps, parallel-corrected1000 VA
Switching output 1, low-voltage halogen lamps2000 VA
LED lamps < 2 W100 W
LED lamps > 2 W < 8 W300 W
LED lamps > 8 W600 W
Capacitive load in μF176 µF

General information

Article number002800
European Article Number (EAN)4007841002800
Detection angle360 °
Angle of aperture140 °
Transmitter power< 1 mW

Sensor technology

Technology, sensorsHigh frequency, Light sensor
Mounting height2,50 – 3,50 m
Mounting height max.3,50 m
Optimum mounting height2,8 m
HF-system5,8 GHz
Detectionalso through glass, wood and stud walls
Sneak-by guardYes
Capability of masking out individual segmentsYes
Electronic scalabilityYes
Mechanical scalabilityNo
Reach, radialØ 12 m (113 m²)
Reach, tangentialØ 12 m (113 m²)

Functions

FunctionsNormal / test mode, Semi-/fully automatic, Pushbutton / switch mode, Manual ON / ON-OFF
Twilight setting10 – 1000 lx
Time setting30 s – 30 Min.
Basic light level functionNo
Main light adjustableNo
Twilight setting TEACHYes
Constant-lighting controlNo

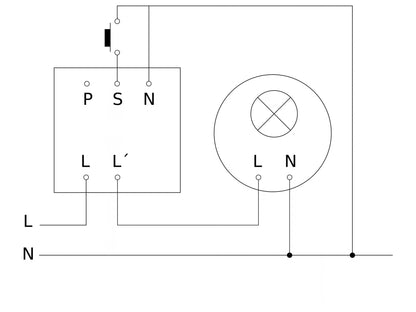

Connection

InterconnectionYes
Type of interconnectionMaster/master, Master/slave
Interconnection viaCable

General information

Product categoryPresence detector
