L 845
L 845
L 845

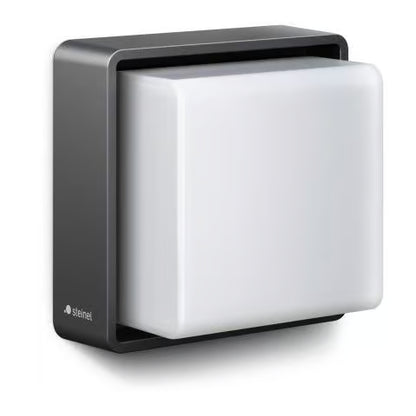

LED outdoor light without sensor - Professional Line

L 845 SC - with motion detector & Bluetooth

Product Code: 078645

Connected lighting – the top-class light cube. Cube design L 845 SC wall light in an elegant aluminium housing. Featuring an invisible 160° high-frequency sensor (5 m detection radius). Luminous flux: 655 lm, power: 9 W colour temperature: 3000 K. With interconnected group function. Wireless commissioning, setting up and networking via Bluetooth Mesh and the STEINEL Connect app. Soft light start, basic light (0-100%) and dimmable main light (0-100%). The L 845 C is also available without a sensor.

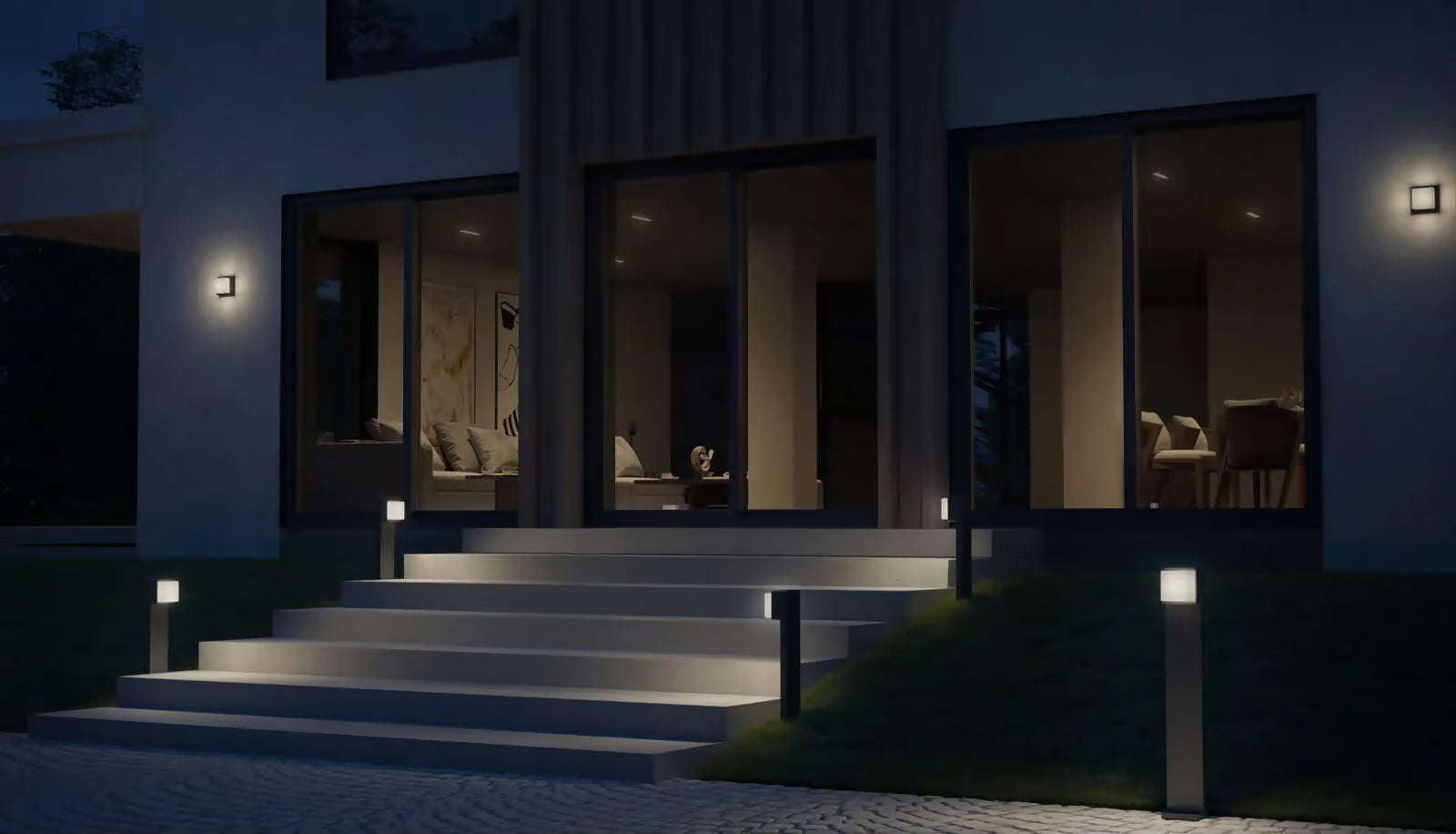

Connected Lighting in the application.

The combination of sensor technology, efficient LED light, networking and intelligent control ensures needs-based switching and creates greater convenience and safety for users. The system is also unbeatably easy to install thanks to tool-free commissioning via the Steinel Connect app. A 5-year manufacturer's guarantee, BEG eligibility and savings of up to 95% on electricity and maintenance costs round off the benefits for everyone involved.



Icon

36 years (Ø 4,5h / day)

Icon

outdoor light

Icon

3000K warm-white

Icon

2 - 2000 lux

Icon

Ø 1 - 5 m

Icon

0 - 100% basic light

Icon

0 - 100% main light brightness

Icon

Light source not exchangeable

Icon

Control gear not exchangeable

  • Application, place: Outdoors

  • Installation: Surface wiring

  • Article number: 078645

  • PU1, net weight: 0,76 kg

  • Luminous flux total product: 655 lm

  • Colour temperature: 3000 K

  • With motion detector: Yes

  • Interconnection via: Bluetooth Mesh

  • Output: 9 W

Product dimension

General

Dimensions (L x W x H)134 x 134 x 87 mm
With lampYes, STEINEL LED system
Manufacturer's Warranty5 years
Settings viaApp, Smartphone, Bluetooth Mesh
With remote controlNo
Versionwith motion detector & Bluetooth
PU1, EAN4007841078645
Application, placeOutdoors
Application, roomoutdoors, front door, all round the building, terrace / balcony, courtyard & driveway

Fixation / Mounting

Includes sheet of self-adhesive numbersNo
Installation sitewall

Housing

Impact resistanceIK03
IP-ratingIP44
Protection classI
Ambient temperaturefrom -20 up to 40 °C
Housing materialAluminium
Cover materialPlastic, opal

Electrical Equipment

Mains power supply220 – 240 V / 50 – 60 Hz
Output9 W

Sensor Technology

Mounting height max.2,50 m
Detectionalso through glass, wood and stud walls
Sneak-by guardNo
Capability of masking out individual segmentsNo
Electronic scalabilityYes
Mechanical scalabilityNo
Reach, detailDetection zone adjustable on 3 axes
Reach, tangentialr = 5 m (35 m²)
Optimum mounting height2 m
Detection angle160 °

Luminaire

Photo-cell controllerYes
Luminous flux total product655 lm
Measured luminous flux (360°)655 lm
Total product efficiency72,7 lm/W
Colour temperature3000 K
Colour variation LEDSDCM3
LampLED cannot be replaced
Service life LED L70B50 (25°)> 60000 h
Drop in luminous flux in accordance with LM80L70B50
Basewithout
LED cooling systemPassive Thermo Control
Soft light startYes
Continuous lightselectable
Colour Rendering Index CRI= 82

General Information

Article number078645
European Article Number (EAN)4007841078645
Basic light level function in percent0 – 100 %
Basic light level function percentage, from0 %
Basic light level function percentage, up to100 %

Functions

Twilight setting2 – 2000 lx
Time setting5 s – 60 Min.
Basic light level functionYes
Basic light level function time10s-60 min, Brightness-controlled, OFF
Main light adjustable0 - 100 %
Twilight setting TEACHYes

Connection

InterconnectionYes
Type of interconnectionMaster/slave
Interconnection viaBluetooth Mesh

General Information

Product categorySensor-switched LED outdoor light
