Presence detector - Professional Line

IR Quattro 8m COM1 (on/off) / Concealed wiring

Product Code: 000349

Squaring the circle. Infrared presence detector Presence Control PRO IR Quattro COM1 for indoors, ideal for small offices, store, service and utility rooms, washrooms and WCs, installation height up to 8 m, for switching light 'ON' and 'OFF', 1760 switching zones for excellent detection quality, square presence detection zone covering 16 m2, mechanically scalable.

Product variants

Pairs well with

IR Quattro 8m

COM1 (on/off) / Concealed wiring

More than a presence detector. Squaring the circle.

Providing 1,760 switching zones, its sets new standards in detection quality especially in smaller-type offices, store rooms, service rooms, utility rooms and wash rooms. And the square detection zone too can be mechanically scaled without any loss of quality - a capability that's exclusive to STEINEL Professional Presence Control PRO.

More than a presence detector. Squaring the circle.More than a presence detector. Squaring the circle.

Providing 1,760 switching zones, its sets new standards in detection quality especially in smaller-type offices, store rooms, service rooms, utility rooms and wash rooms. And the square detection zone too can be mechanically scaled without any loss of quality - a capability that's exclusive to STEINEL Professional Presence Control PRO.

infrared sensor

max. 4 x 4 m presence

max. 2000 W

IP20

ideal 2,5 - 8 m

indoor sensor

IQ-mode

Teach mode

energy saving

Application, place: Indoors
Installation: Concealed wiring
Detection angle: 360 °
Reach, tangential: 7 x 7 m (49 m²)
Mounting height max.: 8,00 m
Version: COM1 - Concealed wiring
Article number: 000349
PU1, net weight: 0,174 kg
Interconnection via: Cable
Package content: 1

General

Dimensions (L x W x H)	76 x 120 x 120 mm
Manufacturer's Warranty	5 years

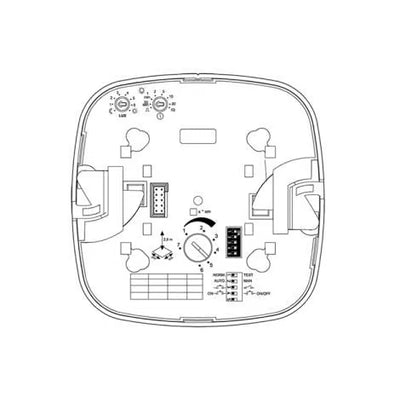

Settings via	Remote control, DIP switches, Potentiometers, Smart Remote
With remote control	No
Version	COM1 - Concealed wiring
PU1, EAN	4007841000349
Type	Presence detector
Application, place	Indoors

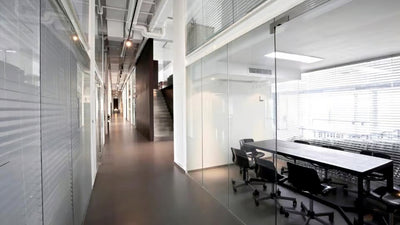

Application, room	one-person office, conference room / meeting room, duty room, recreation room, changing room, function room / ancillary room, kitchenette, Indoors
Colour	white
Colour, RAL	9010
Package content	1

Fixation / mounting

Includes corner wall mount	No
Installation site	ceiling
Installation	Concealed wiring, Ceiling

Housing

IP-rating	IP20
Ambient temperature	from 0 up to 40 °C
Material	Plastic

Electrical equipment

Mains power supply	230 V / 50 – 60 Hz
Fluorescent lamps, electronic ballast	1500 W
Fluorescent lamps, uncorrected	1000 VA
Fluorescent lamps, series-corrected	1000 VA
Fluorescent lamps, parallel-corrected	1000 VA
Switching output 1, low-voltage halogen lamps	2000 VA
LED lamps < 2 W	100 W
LED lamps > 2 W < 8 W	300 W
LED lamps > 8 W	600 W
Capacitive load in μF	176 µF

General information

Article number	000349
European Article Number (EAN)	4007841000349
Detection angle	360 °
Angle of aperture	100 °

Sensor technology

Technology, sensors	passive infrared, Light sensor
Mounting height	2,50 – 8,00 m
Mounting height max.	8,00 m
Optimum mounting height	2,8 m
Sneak-by guard	Yes
Capability of masking out individual segments	No
Electronic scalability	No
Mechanical scalability	Yes
Reach, radial	5 x 5 m (25 m²)
Reach, tangential	7 x 7 m (49 m²)
Reach, presence	4 x 4 m (16 m²)
Switching zones	1760 switching zones

Functions

Functions	Normal / test mode, Semi-/fully automatic, Pushbutton / switch mode, Manual ON / ON-OFF
Twilight setting	10 – 1000 lx
Time setting	30 s – 30 Min.
Basic light level function	No
Main light adjustable	No
Twilight setting TEACH	Yes
Constant-lighting control	No

Connection

Interconnection	Yes
Type of interconnection	Master/master, Master/slave
Interconnection via	Cable
Interconnection, number	max. 10 sensors

General information

Product category

Presence detector
