Presence detector - Professional Line

IR Quattro 8m COM1 (on/off) / Concealed wiring

Product Code: 000349

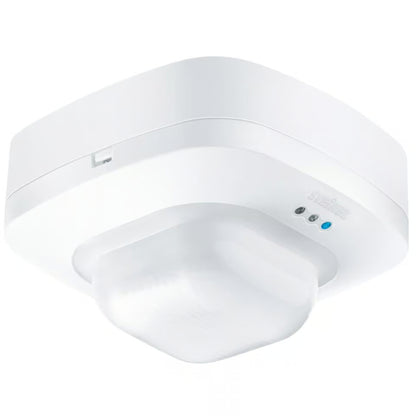

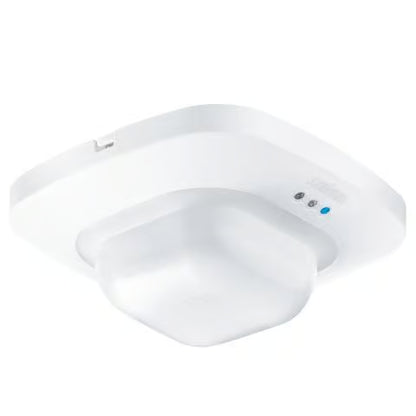

Squaring the circle. Infrared presence detector Presence Control PRO IR Quattro COM1 for indoors, ideal for small offices, store, service and utility rooms, washrooms and WCs, installation height up to 8 m, for switching light 'ON' and 'OFF', 1760 switching zones for excellent detection quality, square presence detection zone covering 16 m2, mechanically scalable.
More than a presence detector. Squaring the circle.

More than a presence detector. Squaring the circle.

Providing 1,760 switching zones, its sets new standards in detection quality especially in smaller-type offices, store rooms, service rooms, utility rooms and wash rooms. And the square detection zone too can be mechanically scaled without any loss of quality - a capability that's exclusive to STEINEL Professional Presence Control PRO.



Icon

infrared sensor

Icon

max. 4 x 4 m presence

Icon

max. 2000 W

Icon

IP20

Icon

ideal 2,5 - 8 m

Icon

indoor sensor

Icon

IQ-mode

Icon

Teach mode

Icon

energy saving

  • Application, place: Indoors

  • Installation: Concealed wiring

  • Detection angle: 360 °

  • Reach, tangential: 7 x 7 m (49 m²)

  • Mounting height max.: 8,00 m

  • Version: COM1 - Concealed wiring

  • Article number: 000349

  • PU1, net weight: 0,174 kg

  • Interconnection via: Cable

  • Package content: 1

Product dimension

General

Dimensions (L x W x H)76 x 120 x 120 mm
Manufacturer's Warranty5 years

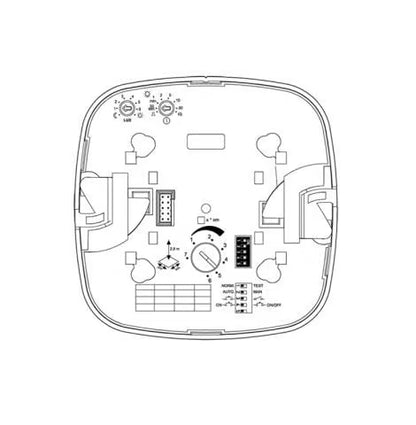

Settings viaRemote control, DIP switches, Potentiometers, Smart Remote
With remote controlNo
VersionCOM1 - Concealed wiring
PU1, EAN4007841000349
TypePresence detector
Application, placeIndoors
Application, roomone-person office, conference room / meeting room, duty room, recreation room, changing room, function room / ancillary room, kitchenette, Indoors
Colourwhite
Colour, RAL9010
Package content1

Fixation / mounting

Includes corner wall mountNo
Installation siteceiling
InstallationConcealed wiring, Ceiling

Housing

IP-ratingIP20
Ambient temperaturefrom 0 up to 40 °C
MaterialPlastic

Electrical equipment

Mains power supply230 V / 50 – 60 Hz
Fluorescent lamps, electronic ballast1500 W
Fluorescent lamps, uncorrected1000 VA
Fluorescent lamps, series-corrected1000 VA
Fluorescent lamps, parallel-corrected1000 VA
Switching output 1, low-voltage halogen lamps2000 VA
LED lamps < 2 W100 W
LED lamps > 2 W < 8 W300 W
LED lamps > 8 W600 W
Capacitive load in μF176 µF

General information

Article number000349
European Article Number (EAN)4007841000349
Detection angle360 °
Angle of aperture100 °

Sensor technology

Technology, sensorspassive infrared, Light sensor
Mounting height2,50 – 8,00 m
Mounting height max.8,00 m
Optimum mounting height2,8 m
Sneak-by guardYes
Capability of masking out individual segmentsNo
Electronic scalabilityNo
Mechanical scalabilityYes
Reach, radial5 x 5 m (25 m²)
Reach, tangential7 x 7 m (49 m²)
Reach, presence4 x 4 m (16 m²)
Switching zones1760 switching zones

Functions

FunctionsNormal / test mode, Semi-/fully automatic, Pushbutton / switch mode, Manual ON / ON-OFF
Twilight setting10 – 1000 lx
Time setting30 s – 30 Min.
Basic light level functionNo
Main light adjustableNo
Twilight setting TEACHYes
Constant-lighting controlNo

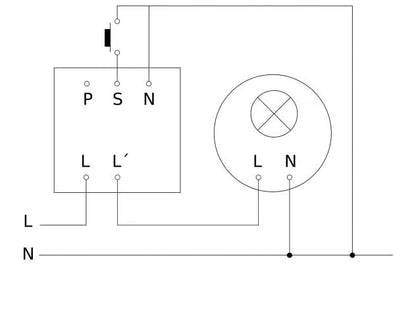

Connection

InterconnectionYes
Type of interconnectionMaster/master, Master/slave
Interconnection viaCable
Interconnection, numbermax. 10 sensors

General information

Product categoryPresence detector

Data sheet (PDF, 1242 KB)

Start Downloading

Instruction Manual (PDF, 11 MB)

Start Downloading
