Sensor-switched LED indoor light

RS 20 S

Product Code: 079734

  • Indoor light with motion detector in a simple and timeless design
  • As ceiling or wall luminaire especially suitable for corridors, staircases, guest WCs or basement rooms
  • Several luminaires can be networked by cable for synchronous switching

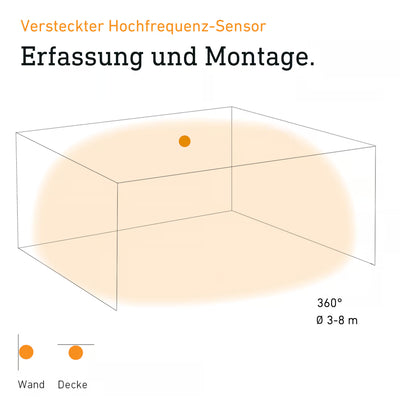

  • Automatic light thanks to hidden 360° high-frequency sensor with up to Ø8 m detection on movement
  • Functions: adjustable basic light, pleasant soft light start, 4 hours continuous light
  • Warm white light (3000 K) and long-life 9,4 W LEDs with 942 lm
  • Incl. mounting accessories - plastic-free packaging
How much energy do you want to save?

How much energy do you want to save?

With STEINEL, you have the choice when it comes to energy saving. Our lights without motion sensors use energy-efficient LEDs and provide you with full manual control – a solid foundation for energy efficiency. Want to save more? Then our lights with twilight switches are a good choice, automatically turning on in darkness and saving up to 50% energy. For the highest savings of up to 95%, we recommend our lights with motion sensors, which only activate when needed. Choose your preference and enjoy the combination of efficiency and convenience with STEINEL.



Icon

30 years (Ø 4,5h / day)

Icon

3000K warm-white

Icon

indoor

Icon

high frequency sensor 360°

Icon

ideal 1 - 2,5 m

Icon

Ø 1 - 8 m

Icon

2 - 2000 lux

Icon

Light source not exchangeable

Icon

Control gear not exchangeable

  • Application, place: Indoors

  • Installation: Surface wiring

  • Article number: 079734

  • PU1, net weight: 0,437 kg

  • Luminous flux total product: 942 lm

  • Colour temperature: 3000 K

  • With motion detector: Yes

  • Interconnection via: Cable

  • Output: 9,4 W

Product dimension

General

Dimensions (Ø x H)280 x 110 mm
With lampYes, STEINEL LED system
With motion detectorYes
Manufacturer's Warranty3 years
Settings viaPotentiometers
With remote controlNo
PU1, EAN4007841079734
Application, placeIndoors
Application, roomcorridor / aisle, changing room, function room / ancillary room, kitchenette, stairwell, WC / washroom, outdoors, Indoors
Colourwhite
Fuse protection B1054
Fuse protection B1687
Fuse protection C1090
Fuse protection C16145

Fixation/ mounting

Installation sitewall, ceiling
InstallationWall, Ceiling, Surface wiring

Housing

Impact resistanceIK03
IP-ratingIP44
Protection classII
Ambient temperaturefrom 10 up to 40 °C
Housing materialPlastic
Cover materialPlastic, opal
IP-rating, ceilingIP44

Electrical equipement

Mains power supply220 – 240 V / 50 – 60 Hz
Power consumption0,38 W
Output9,4 W

Sensor technology

Mounting height max.4,00 m
HF-system5,8 GHz
Detectionalso through glass, wood and stud walls
Capability of masking out individual segmentsYes
Electronic scalabilityYes
Mechanical scalabilityNo
Reach, radialØ 8 m (50 m²)
Reach, tangentialØ 8 m (50 m²)
Detection angle360 °

Luminaire

Photo-cell controllerYes
Luminous flux total product942 lm
Colour temperature3000 K
Colour variation LEDSDCM3
LampLED cannot be replaced
Basewithout
LED cooling systemPassive Thermo Control
Soft light startYes
Continuous lightselectable, 4h

General information

Article number079734
European Article Number (EAN)4007841079734
Transmitter power< 1 mW
Basic light level function in per cent10 %
Angle of aperture160 °

Functions

Twilight setting2 – 2000 lx
Time setting5 s – 15 Min.
Basic light level functionYes
Basic light level function time10/30 min, all night
Twilight setting TEACHNo

Connection

InterconnectionYes
Type of interconnectionMaster/master
Interconnection viaCable

General information

Product categorySensor-switched LED indoor light
