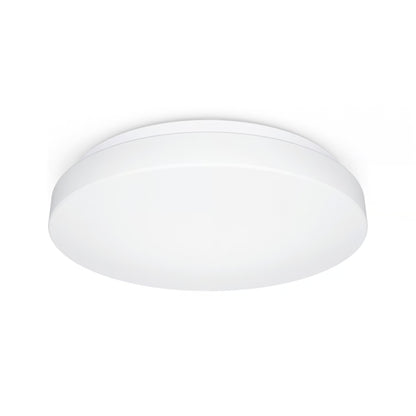

Sensor-switched LED indoor light

RS 20 S

Product Code: 079734

Indoor light with motion detector in a simple and timeless design
As ceiling or wall luminaire especially suitable for corridors, staircases, guest WCs or basement rooms
Several luminaires can be networked by cable for synchronous switching

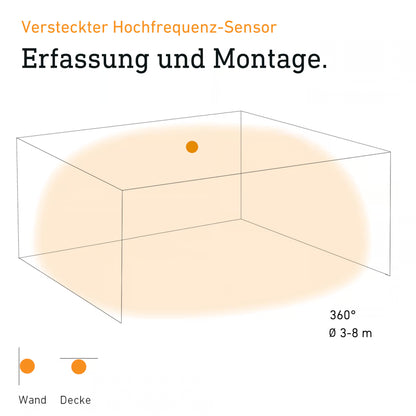

Automatic light thanks to hidden 360° high-frequency sensor with up to Ø8 m detection on movement
Functions: adjustable basic light, pleasant soft light start, 4 hours continuous light
Warm white light (3000 K) and long-life 9,4 W LEDs with 942 lm
Incl. mounting accessories - plastic-free packaging

Product variants

Pairs well with

RS 20 S

How much energy do you want to save?

With STEINEL, you have the choice when it comes to energy saving. Our lights without motion sensors use energy-efficient LEDs and provide you with full manual control – a solid foundation for energy efficiency. Want to save more? Then our lights with twilight switches are a good choice, automatically turning on in darkness and saving up to 50% energy. For the highest savings of up to 95%, we recommend our lights with motion sensors, which only activate when needed. Choose your preference and enjoy the combination of efficiency and convenience with STEINEL.

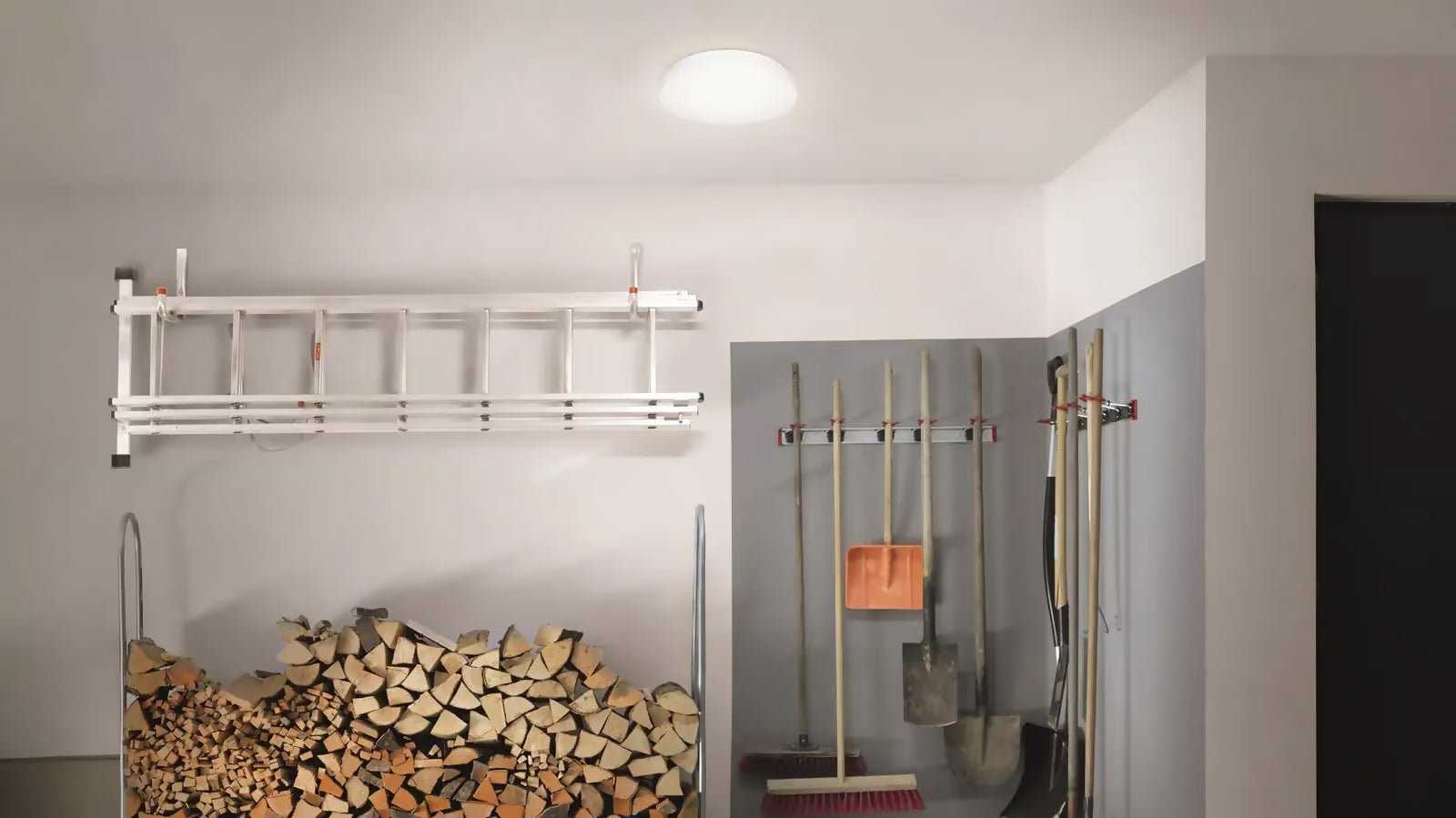

Circular classic.

Perfect shape. Perfect efficiency. The perfect switched indoor light . The RS 20 S integrates harmoniously into corridors, hallways and stairwells. It combines timeless design and extremely easy installation with pioneering technology and unbeatable efficiency. As many as ten lights can be interconnected by cable. Output: 9,4 W with 942 lm, 3000 K.

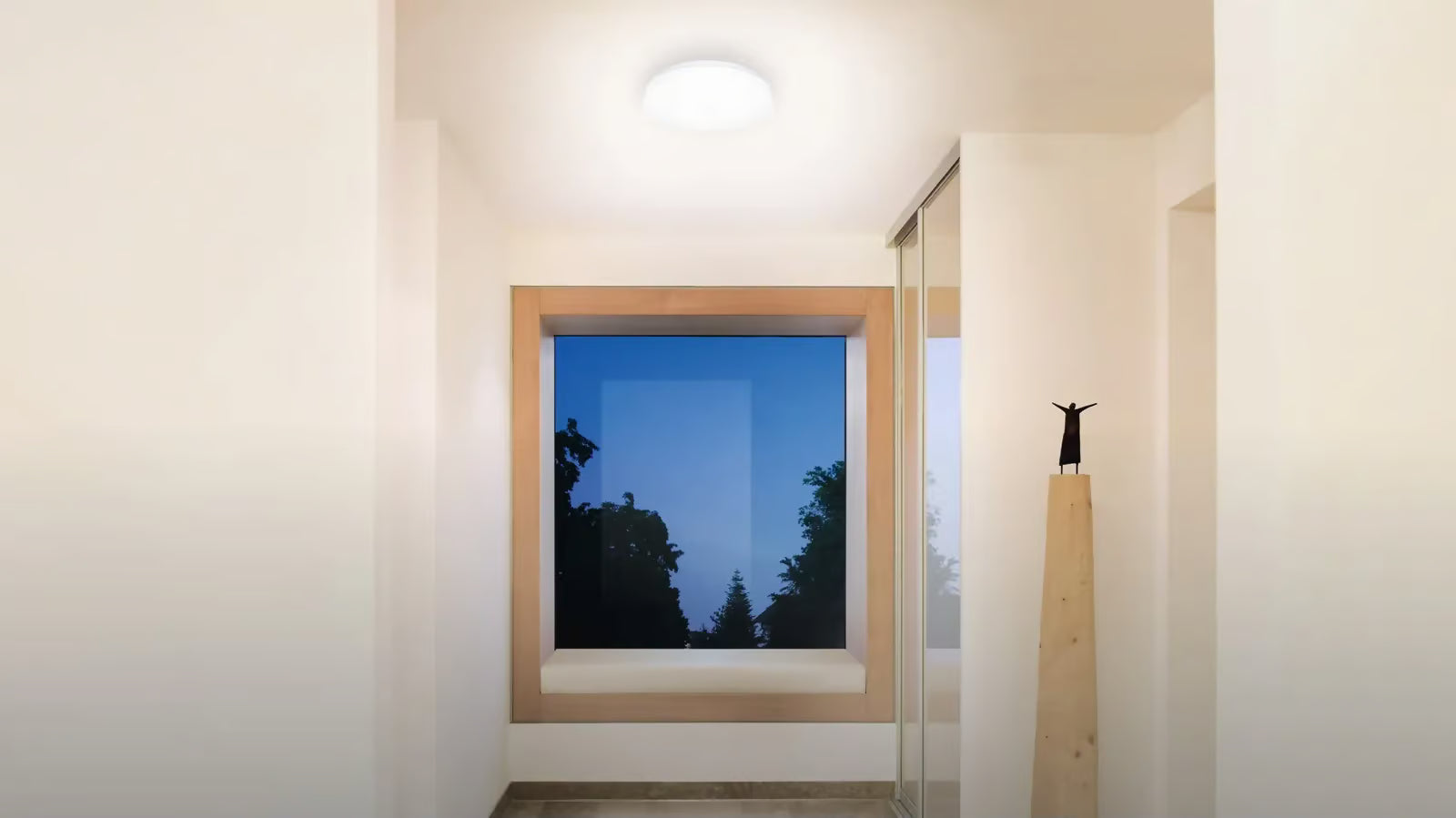

Functions at a glance

Soft light start: elegantly and softly switches the light up to or down from 100% output
Basic light: dimmed continuous illumination (10%) after dark for 10 mins, 30 mins or throughout the night, which only switches to maximum light output when motion is detected
Continuous light: the light can be switched on for max. 4 hours using the switch, without detecting motion
Twilight setting: select the lighting conditions in which the light switches on when motion is detected
Time setting: decide how long (5 secs – 15 mins) the light stays switched on after motion is detected
Reach setting: The detection range (sensitivity) can be adjusted from Ø 1–8 m

30 years (Ø 4,5h / day)

3000K warm-white

indoor

high frequency sensor 360°

ideal 1 - 2,5 m

Ø 1 - 8 m

2 - 2000 lux

Light source not exchangeable

Control gear not exchangeable

Application, place: Indoors
Installation: Surface wiring
Article number: 079734
PU1, net weight: 0,437 kg
Luminous flux total product: 942 lm
Colour temperature: 3000 K
With motion detector: Yes
Interconnection via: Cable
Output: 9,4 W

General

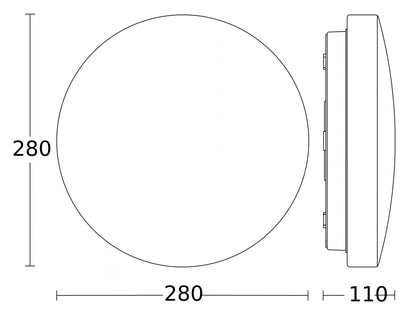

Dimensions (Ø x H)	280 x 110 mm
With lamp	Yes, STEINEL LED system
With motion detector	Yes
Manufacturer's Warranty	3 years
Settings via	Potentiometers
With remote control	No
PU1, EAN	4007841079734
Application, place	Indoors
Application, room	corridor / aisle, changing room, function room / ancillary room, kitchenette, stairwell, WC / washroom, outdoors, Indoors
Colour	white
Fuse protection B10	54
Fuse protection B16	87
Fuse protection C10	90
Fuse protection C16	145

Fixation/ mounting

Installation site	wall, ceiling
Installation	Wall, Ceiling, Surface wiring

Housing

Impact resistance	IK03
IP-rating	IP44
Protection class	II
Ambient temperature	from 10 up to 40 °C
Housing material	Plastic
Cover material	Plastic, opal
IP-rating, ceiling	IP44

Electrical equipement

Mains power supply	220 – 240 V / 50 – 60 Hz
Power consumption	0,38 W
Output	9,4 W

Sensor technology

Mounting height max.	4,00 m
HF-system	5,8 GHz
Detection	also through glass, wood and stud walls
Capability of masking out individual segments	Yes
Electronic scalability	Yes
Mechanical scalability	No
Reach, radial	Ø 8 m (50 m²)
Reach, tangential	Ø 8 m (50 m²)
Detection angle	360 °

Luminaire

Photo-cell controller	Yes
Luminous flux total product	942 lm
Colour temperature	3000 K
Colour variation LED	SDCM3
Lamp	LED cannot be replaced
Base	without
LED cooling system	Passive Thermo Control
Soft light start	Yes
Continuous light	selectable, 4h

General information

Article number	079734
European Article Number (EAN)	4007841079734
Transmitter power	< 1 mW
Basic light level function in per cent	10 %
Angle of aperture	160 °

Functions

Twilight setting	2 – 2000 lx
Time setting	5 s – 15 Min.
Basic light level function	Yes
Basic light level function time	10/30 min, all night
Twilight setting TEACH	No

Connection

Interconnection	Yes
Type of interconnection	Master/master
Interconnection via	Cable
