How much energy do you want to save?
Stylish elegance. Intelligent light.
Functions at a glance

How much energy do you want to save?

With STEINEL, you have the choice when it comes to energy saving. Our lights without motion sensors use energy-efficient LEDs and provide you with full manual control – a solid foundation for energy efficiency. Want to save more? Then our lights with twilight switches are a good choice, automatically turning on in darkness and saving up to 50% energy. For the highest savings of up to 95%, we recommend our lights with motion sensors, which only activate when needed. Choose your preference and enjoy the combination of efficiency and convenience with STEINEL.

Stylish elegance. Intelligent light.

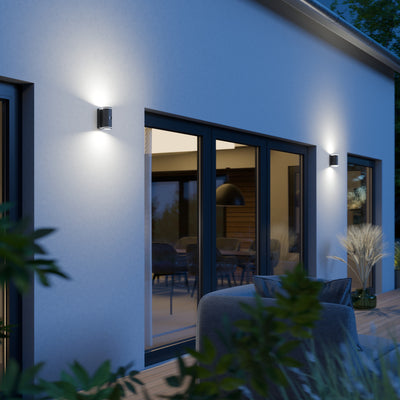

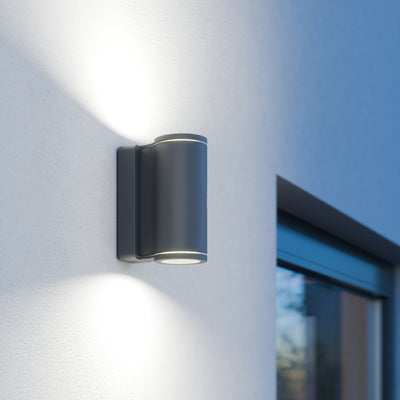

The L 940 SC sensor outdoor light combines modern elegance with intelligent lighting technology. With its clear, minimalist housing made of high-quality aluminium in elegant anthracite, it blends harmoniously into any architectural environment. With 620 lumens each, two light sources provide an impressive up/down light that effectively sets the scene for facades, entrances or terraces. The 180° infrared sensor with 8m detection reliably detects movement and only switches on the warm white light (3000 K) when it is really needed. The L 940 SC can be wirelessly networked with other lights and conveniently controlled via the STEINEL Connect app - for a perfectly harmonised lighting atmosphere around the house.

Functions at a glance

  • Schedule function: switch the light on and off permanently at a freely selectable time depending on the day of the week without having to detect any movement
  • Twilight setting: select the lighting conditions in which the light switches on when motion is detected
  • Time setting: decide how long (5 secs – 60 mins) the light stays switched on after motion is detected
  • Switch mode: The light can be switched on and off via app or optional TapDuo wireless switch, just like a light switch

All settings can be conveniently adjusted via the app. The app also makes it possible to network any number of other Bluetooth Mesh lights to control them simultaneously and assign group functions.

How much energy do you want to save?

With STEINEL, you have the choice when it comes to energy saving. Our lights without motion sensors use energy-efficient LEDs and provide you with full manual control – a solid foundation for energy efficiency. Want to save more? Then our lights with twilight switches are a good choice, automatically turning on in darkness and saving up to 50% energy. For the highest savings of up to 95%, we recommend our lights with motion sensors, which only activate when needed. Choose your preference and enjoy the combination of efficiency and convenience with STEINEL.

Stylish elegance. Intelligent light.

The L 940 SC sensor outdoor light combines modern elegance with intelligent lighting technology. With its clear, minimalist housing made of high-quality aluminium in elegant anthracite, it blends harmoniously into any architectural environment. With 620 lumens each, two light sources provide an impressive up/down light that effectively sets the scene for facades, entrances or terraces. The 180° infrared sensor with 8m detection reliably detects movement and only switches on the warm white light (3000 K) when it is really needed. The L 940 SC can be wirelessly networked with other lights and conveniently controlled via the STEINEL Connect app - for a perfectly harmonised lighting atmosphere around the house.

Functions at a glance

  • Schedule function: switch the light on and off permanently at a freely selectable time depending on the day of the week without having to detect any movement
  • Twilight setting: select the lighting conditions in which the light switches on when motion is detected
  • Time setting: decide how long (5 secs – 60 mins) the light stays switched on after motion is detected
  • Switch mode: The light can be switched on and off via app or optional TapDuo wireless switch, just like a light switch

All settings can be conveniently adjusted via the app. The app also makes it possible to network any number of other Bluetooth Mesh lights to control them simultaneously and assign group functions.

Icon

20.000 h

Icon

3000K warm-white

Icon

38°

Icon

infrared sensor 180°

Icon

max. 8 m

Icon

IP44

Icon

2 - 1000 lux

Icon

Light source replaceable by end user

Icon

Control gear not exchangeable

  • Application, place: Outdoors

  • Installation: Surface wiring

  • Article number: 087739

  • PU1, net weight: 0,56 kg

  • Luminous flux total product: 1240 lm

  • Colour temperature: 3000 K

  • With motion detector: Yes

  • Interconnection via: Bluetooth Mesh

  • Output: 14,5 W

  • Package content: 1

Product dimension

General

Dimensions (L x W x H)115 x 70 x 160 mm
With lampYes, LED lamp
Manufacturer's Warranty3 years
Settings viaBluetooth Mesh
With remote controlNo
Versionwith motion detector & Bluetooth
PU1, EAN4007841087739
Application, placeOutdoors
Application, roomoutdoors, front door, all round the building, terrace / balcony
ColourAnthracite
Package content1

Fixation/ mounting

includes sheet of self-adhesive numbersNo
Installation sitewall

Housing

IP-ratingIP44
Protection classI
Ambient temperaturefrom -20 up to 40 °C
Housing materialAluminium
Cover materialPC structured

Electrical equipement

Mains power supply220 – 240 V / 50 – 60 Hz
Output14,5 W

Sensor technology

Mounting height max.4,00 m
Slave mode selectableYes
Sneak-by guardNo
Capability of masking out individual segmentsNo
Electronic scalabilityNo
Mechanical scalabilityNo
Reach, radialr = 3 m (14 m²)
Reach, tangentialr = 8.5 m (113 m²)
Optimum mounting height1,8 m
Detection angle180 °

Luminaire

Photo-cell controllerYes
Luminous flux total product1240 lm
Colour temperature3000 K
LampLED can be replaced
Service life LED L70B50 (25°)> 20000 h
BaseGU10
Soft light startNo
Colour Rendering Index CRI= 81

General information

Article number087739
European Article Number (EAN)4007841087739
R9-Farbwiedergabeindex-0,4

Functions

FunctionsMotions sensor, Light sensor, Neighbouring group function, Push button configuration, Pushbutton / switch mode
Twilight setting2 – 1000 lx
Time setting5 s – 60 Min.
Basic light level functionNo
Main light adjustableNo
Twilight setting TEACHYes

Connection

InterconnectionYes
Type of interconnectionSensor/slave
Interconnection viaBluetooth Mesh

General information

Product categorySensor-switched LED outdoor light

Data sheet (PDF, 1.37 MB)

Start Downloading

Instruction Manual (PDF, 5 MB)

Start Downloading

Quick Start Guide (PDF, 1091 KB)

Start Downloading
