With STEINEL, you have the choice when it comes to energy saving. Our lights without motion sensors use energy-efficient LEDs and provide you with full manual control – a solid foundation for energy efficiency. Want to save more? Then our lights with twilight switches are a good choice, automatically turning on in darkness and saving up to 50% energy. For the highest savings of up to 95%, we recommend our lights with motion sensors, which only activate when needed. Choose your preference and enjoy the combination of efficiency and convenience with STEINEL.

Icon

20.000 h

Icon

3000K warm-white

Icon

38°

Icon

infrared sensor 180°

Icon

max. 8 m

Icon

IP44

Icon

2 - 1000 lux

Icon

Light source replaceable by end user

Icon

Control gear not exchangeable

  • Application, place: Outdoors

  • Installation: Surface wiring

  • Article number: 087739

  • PU1, net weight: 0,56 kg

  • Luminous flux total product: 1240 lm

  • Colour temperature: 3000 K

  • With motion detector: Yes

  • Interconnection via: Bluetooth Mesh

  • Output: 14,5 W

  • Package content: 1

Product dimension

General

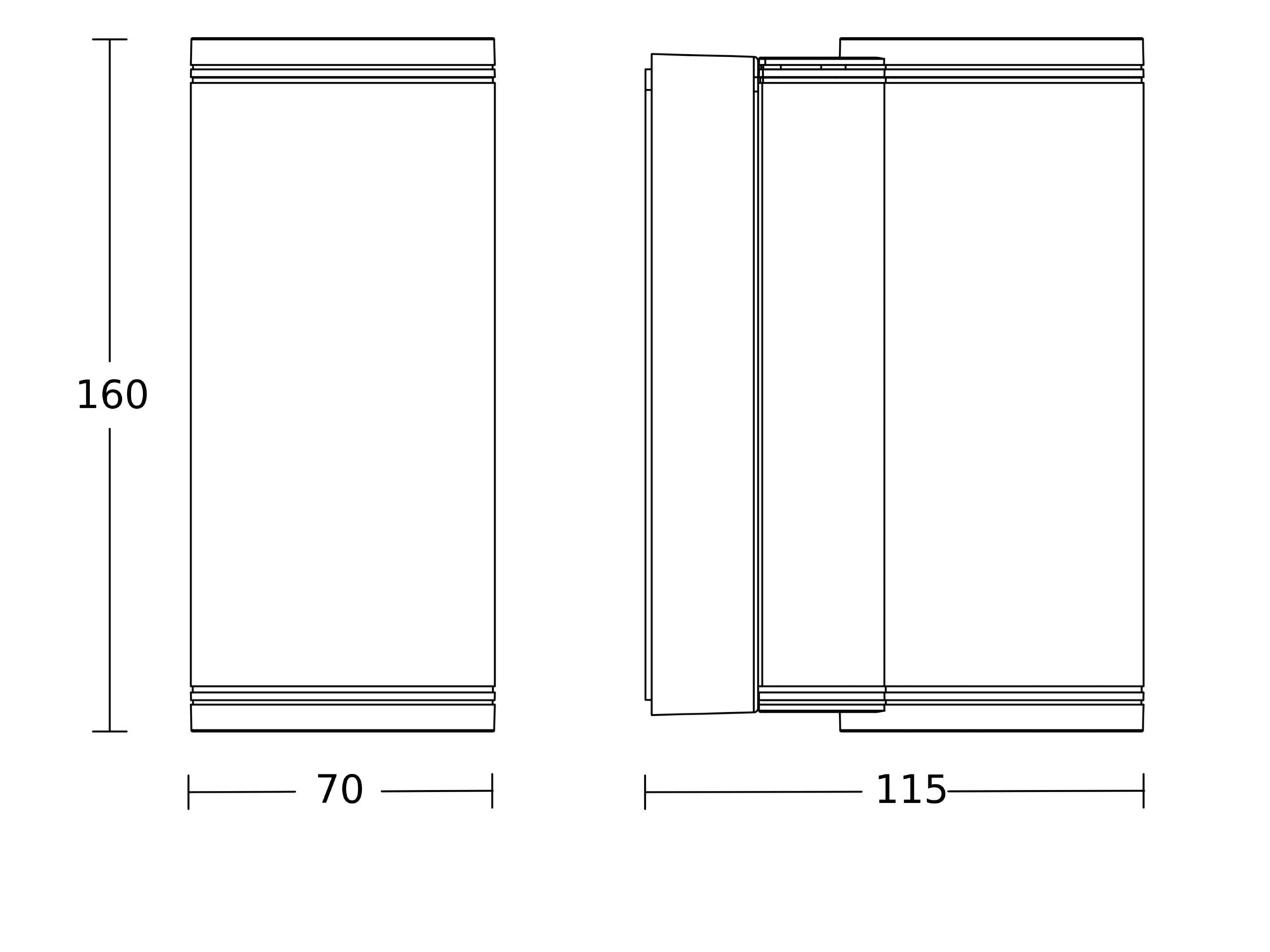

Dimensions (L x W x H)115 x 70 x 160 mm
With lampYes, LED lamp
Manufacturer's Warranty3 years
Settings viaBluetooth Mesh
With remote controlNo
Versionwith motion detector & Bluetooth
PU1, EAN4007841087739
Application, placeOutdoors
Application, roomoutdoors, front door, all round the building, terrace / balcony
ColourAnthracite
Package content1

Fixation/ mounting

includes sheet of self-adhesive numbersNo
Installation sitewall

Housing

IP-ratingIP44
Protection classI
Ambient temperaturefrom -20 up to 40 °C
Housing materialAluminium
Cover materialPC structured

Electrical equipement

Mains power supply220 – 240 V / 50 – 60 Hz
Output14,5 W

Sensor technology

Mounting height max.4,00 m
Slave mode selectableYes
Sneak-by guardNo
Capability of masking out individual segmentsNo
Electronic scalabilityNo
Mechanical scalabilityNo
Reach, radialr = 3 m (14 m²)
Reach, tangentialr = 8.5 m (113 m²)
Optimum mounting height1,8 m
Detection angle180 °

Luminaire

Photo-cell controllerYes
Luminous flux total product1240 lm
Colour temperature3000 K
LampLED can be replaced
Service life LED L70B50 (25°)> 20000 h
BaseGU10
Soft light startNo
Colour Rendering Index CRI= 81

General information

Article number087739
European Article Number (EAN)4007841087739
R9-Farbwiedergabeindex-0,4

Functions

FunctionsMotions sensor, Light sensor, Neighbouring group function, Push button configuration, Pushbutton / switch mode
Twilight setting2 – 1000 lx
Time setting5 s – 60 Min.
Basic light level functionNo
Main light adjustableNo
Twilight setting TEACHYes

Connection

InterconnectionYes
Type of interconnectionSensor/slave
Interconnection viaBluetooth Mesh

General information

Product categorySensor-switched LED outdoor light
