Presence detector - Professional Line

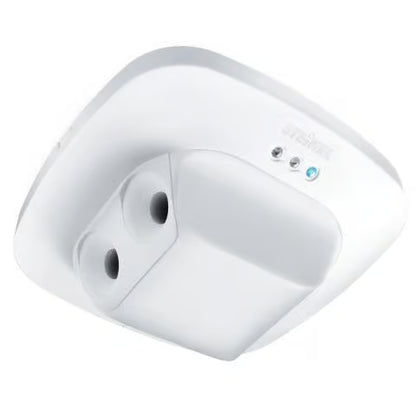

Dual US COM1 / in-ceiling installation

Product Code: 079598

Watches over the entire corridor. And can see around corners. Dual US ultrasonic motion detector, ideal for corridors and passageways. Reliable detection within 18 m, envelops objects as opposed to penetrating them, detection regardless of temperature, electronically adjustable reach, COM1 for switching light ON and OFF.

Pairs well with

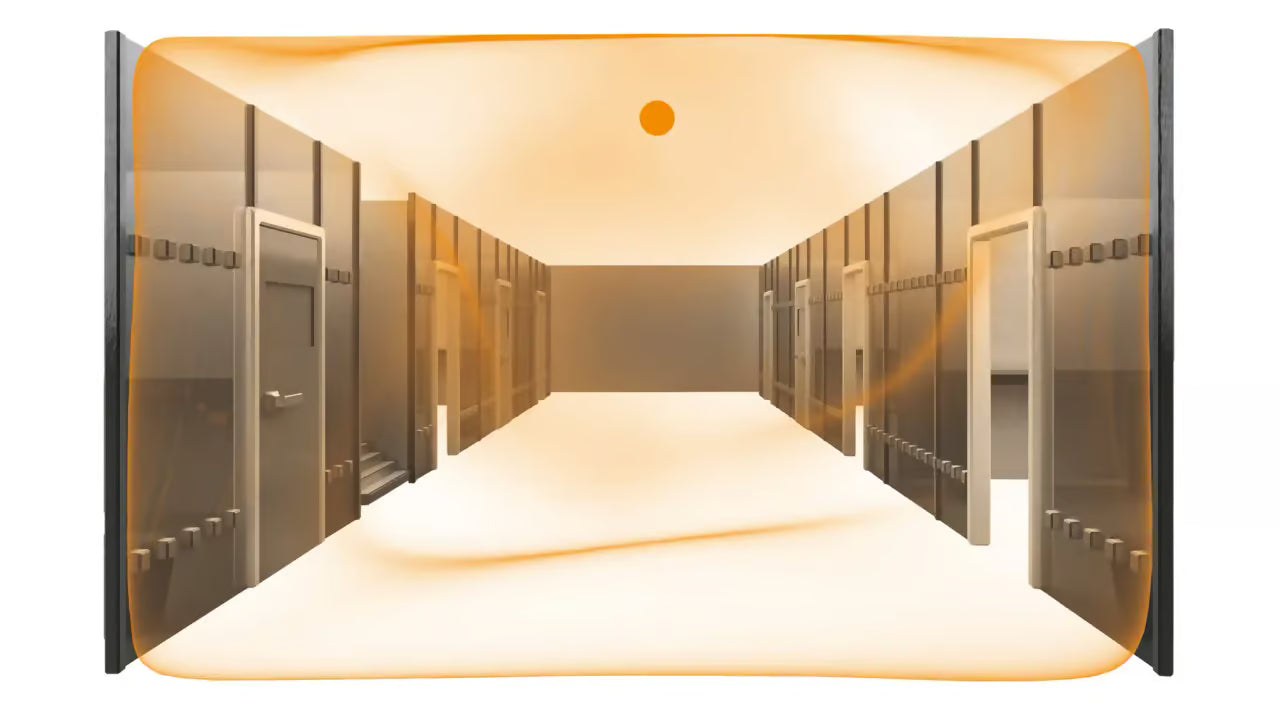

Watches over the entire corridor. And can see around corners.
Watches over the entire corridor. And can see around corners.

Watches over the entire corridor. And can see around corners.

Switching light on and off with maximum precision in long passageways and corridors. Because all objects can be clearly detected. Thanks to ultrasonic technology, that's not a problem for the Dual US. Installed at a height of 2.5 – 3.5 metres, the presence detector identifies even the smallest of movements – no matter which walking direction they come from - in a detection zone of 3 x 18 m. But only there: the sensor reliably masks out persons in adjacent rooms. That makes it the perfect corridor sensor for office and admin buildings.

Watches over the entire corridor. And can see around corners.

Switching light on and off with maximum precision in long passageways and corridors. Because all objects can be clearly detected. Thanks to ultrasonic technology, that's not a problem for the Dual US. Installed at a height of 2.5 – 3.5 metres, the presence detector identifies even the smallest of movements – no matter which walking direction they come from - in a detection zone of 3 x 18 m. But only there: the sensor reliably masks out persons in adjacent rooms. That makes it the perfect corridor sensor for office and admin buildings.

Watches over the entire corridor. And can see around corners.

Switching light on and off with maximum precision in long passageways and corridors. Because all objects can be clearly detected. Thanks to ultrasonic technology, that's not a problem for the Dual US. Installed at a height of 2.5 – 3.5 metres, the presence detector identifies even the smallest of movements – no matter which walking direction they come from - in a detection zone of 3 x 18 m. But only there: the sensor reliably masks out persons in adjacent rooms. That makes it the perfect corridor sensor for office and admin buildings.

Watches over the entire corridor. And can see around corners.

Switching light on and off with maximum precision in long passageways and corridors. Because all objects can be clearly detected. Thanks to ultrasonic technology, that's not a problem for the Dual US. Installed at a height of 2.5 – 3.5 metres, the presence detector identifies even the smallest of movements – no matter which walking direction they come from - in a detection zone of 3 x 18 m. But only there: the sensor reliably masks out persons in adjacent rooms. That makes it the perfect corridor sensor for office and admin buildings.

Icon

ultrasonic sensor 360°

Icon

3 x 18 m

Icon

max. 2000 W

Icon

IP20

Icon

ideal 2,5 - 3,5 m

Icon

indoor sensor

Icon

IQ-mode

Icon

Teach mode

Icon

energy saving

  • Application, place: Indoors

  • Installation: In-ceiling installation

  • Detection angle: 360 °

  • Reach, tangential: 20 x 3 m (60 m²)

  • Mounting height max.: 3,50 m

  • Version: COM1 - in-ceiling installation

  • Article number: 079598

  • PU1, net weight: 0,256 kg

  • Interconnection via: Cable

  • Package content: 1

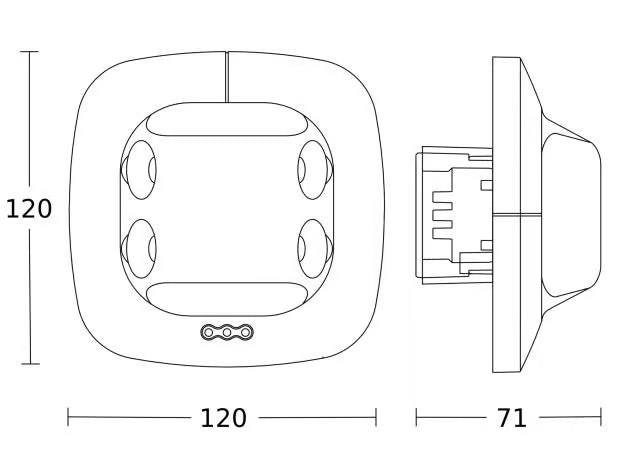

Product dimension

General

Dimensions (L x W x H)109 x 120 x 120 mm
Manufacturer's Warranty5 years
Settings viaRemote control, DIP switches, Potentiometers, Smart Remote
With remote controlYes
VersionCOM1 - in-ceiling installation
PU1, EAN4007841079598
TypePresence detector
Application, placeIndoors
Application, roomcorridor / aisle, Indoors
Colourwhite
Colour, RAL9010
Package content1

Fixation/ mounting

Includes corner wall mountNo
Installation siteceiling
InstallationIn-ceiling installation, Ceiling

Housing

IP-ratingIP20
Ambient temperaturefrom -25 up to 55 °C
MaterialPlastic

Electrical equipement

Mains power supply220 – 240 V / 50 – 60 Hz

General information

Article number079598
European Article Number (EAN)4007841079598
Detection angleAisle, 360 °
Angle of aperture180 °

Sensor technology

Technology, sensorsUltrasonic, Light sensor
Mounting height2,50 – 3,50 m
Mounting height max.3,50 m
Optimum mounting height2,8 m
Ultrasonic technology40 kHz
Sneak-by guardYes
Capability of masking out individual segmentsNo
Electronic scalabilityYes
Mechanical scalabilityNo
Reach, radial20 x 3 m (60 m²)
Reach, tangential20 x 3 m (60 m²)

Functions

FunctionsNormal / test mode, Semi-/fully automatic, Pushbutton / switch mode, Manual ON / ON-OFF
Twilight setting10 – 1000 lx
Time setting30 s – 30 Min.
Basic light level functionNo
Main light adjustableNo
Twilight setting TEACHYes
Constant-lighting controlNo

Connection

InterconnectionYes
Type of interconnectionMaster/master, Master/slave
Interconnection viaCable
Interconnection, numbermax. 10 sensors

General information

Product categoryPresence detector
