GL 60 S
GL 60 S
GL 60 S
GL 60 S

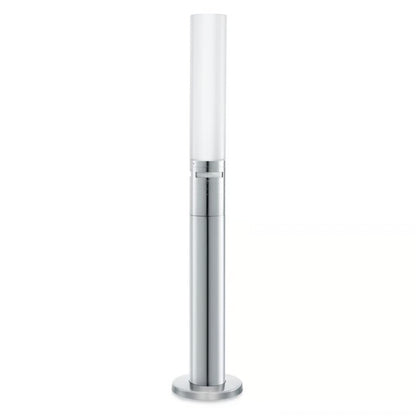

Sensor-switched LED outdoor light

GL 60 S

Product Code: 007881

  • Floor and path luminaire with motion detector with high-quality stainless steel base and opal glass
  • Perfect complement to the L 260 S outdoor light
  • Automatic light thanks to 360 ° Infrared sensor with up to 12 m detection of movement
  • Functions: adjustable basic light, pleasant soft light start, 4 hours continuous light
  • Incl. E27 LED bulb with warm white light (3000 K) with 781 lm at 9,78 W
  • Incl. mounting accessories - plastic-free packaging

Pairs well with
How much energy do you want to save?
International garden show. At your home.
Functions at a glance

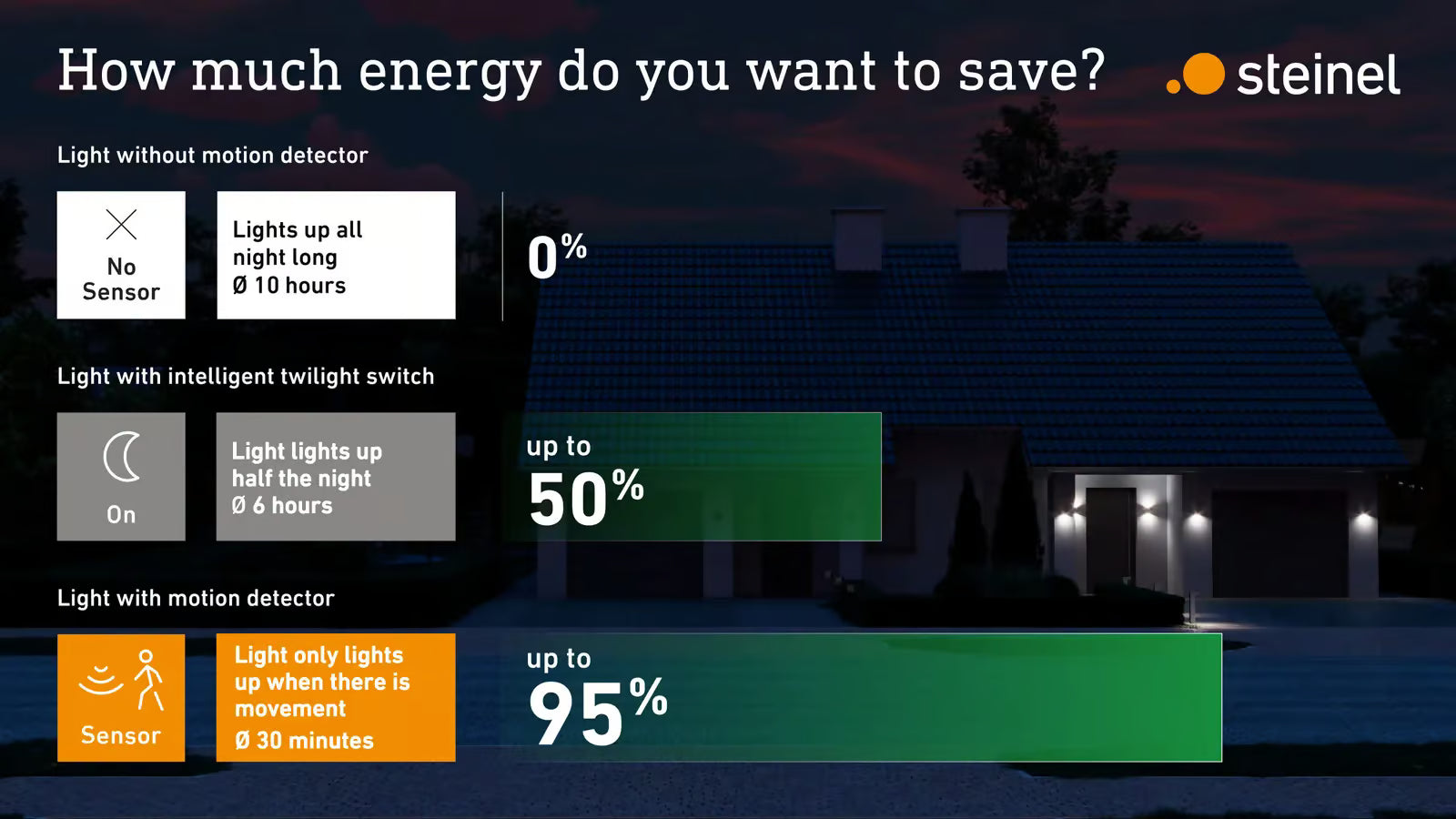

How much energy do you want to save?

With STEINEL, you have the choice when it comes to energy saving. Our lights without motion sensors use energy-efficient LEDs and provide you with full manual control – a solid foundation for energy efficiency. Want to save more? Then our lights with twilight switches are a good choice, automatically turning on in darkness and saving up to 50% energy. For the highest savings of up to 95%, we recommend our lights with motion sensors, which only activate when needed. Choose your preference and enjoy the combination of efficiency and convenience with STEINEL.

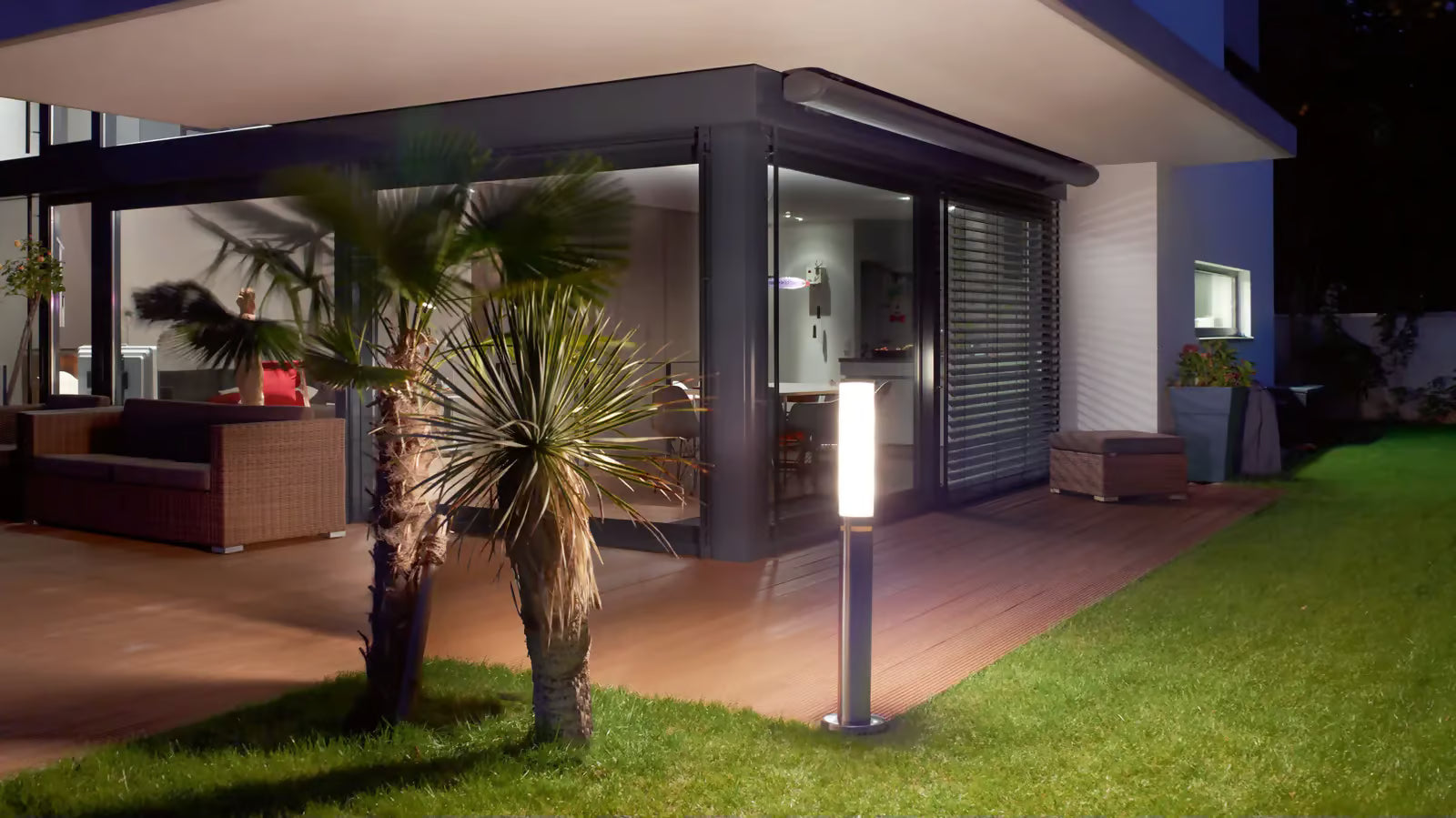

International garden show. At your home.

Transform your property into a showcase. The modern, sleek design brings a very special mood to gardens, driveways or paths. The GL 60 S SensorLight can tell if anyone is there and slowly switches the light on in a way that's kind on the eyes. Just as with the L 260 S, it also incorporates the innovative LED lamp. It provides lighting filled with atmosphere and automatically switches itself off again after a pre-selected time. 360° coverage without blind spots, incidentally, is unique. Your neighbours will be amazed.

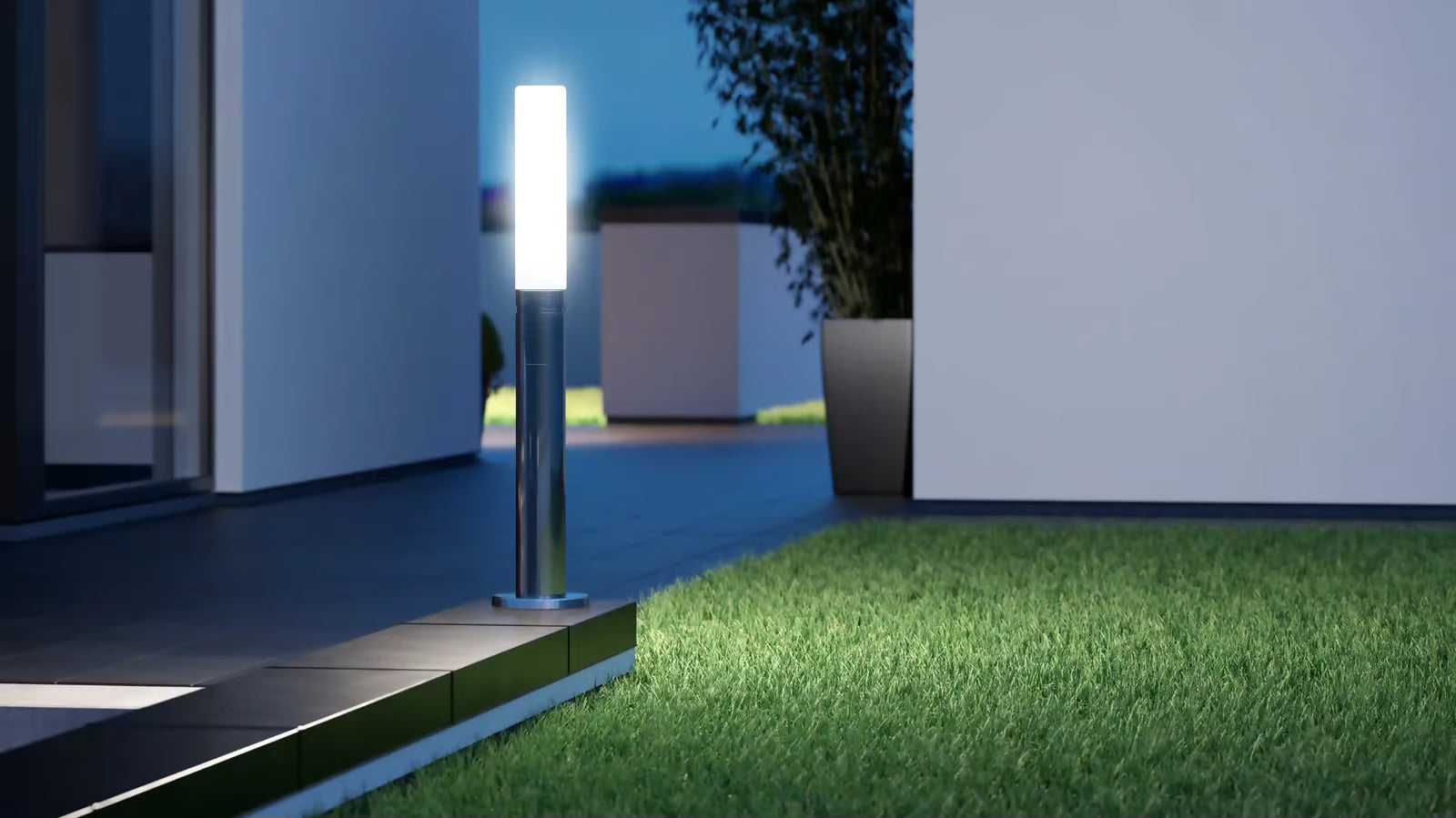

Functions at a glance

  • Soft light start: elegantly and softly switches the light up to or down from 100% output
  • Basic light: dimmed continuous illumination (10–50%) at night, which only switches to maximum light output when motion is detected
  • Continuous light: switches the light on for max. 4 hours, without detecting motion
  • Twilight setting: select the lighting conditions in which the light switches on when motion is detected
  • Time setting: decide how long (5 secs – 15 mins) the light stays switched on after motion is detected
  • Reach setting: The maximum detection range of 12 m and detection radius of 360° can be individually adjusted using the supplied cover panels

How much energy do you want to save?

With STEINEL, you have the choice when it comes to energy saving. Our lights without motion sensors use energy-efficient LEDs and provide you with full manual control – a solid foundation for energy efficiency. Want to save more? Then our lights with twilight switches are a good choice, automatically turning on in darkness and saving up to 50% energy. For the highest savings of up to 95%, we recommend our lights with motion sensors, which only activate when needed. Choose your preference and enjoy the combination of efficiency and convenience with STEINEL.

International garden show. At your home.

Transform your property into a showcase. The modern, sleek design brings a very special mood to gardens, driveways or paths. The GL 60 S SensorLight can tell if anyone is there and slowly switches the light on in a way that's kind on the eyes. Just as with the L 260 S, it also incorporates the innovative LED lamp. It provides lighting filled with atmosphere and automatically switches itself off again after a pre-selected time. 360° coverage without blind spots, incidentally, is unique. Your neighbours will be amazed.

Functions at a glance

  • Soft light start: elegantly and softly switches the light up to or down from 100% output
  • Basic light: dimmed continuous illumination (10–50%) at night, which only switches to maximum light output when motion is detected
  • Continuous light: switches the light on for max. 4 hours, without detecting motion
  • Twilight setting: select the lighting conditions in which the light switches on when motion is detected
  • Time setting: decide how long (5 secs – 15 mins) the light stays switched on after motion is detected
  • Reach setting: The maximum detection range of 12 m and detection radius of 360° can be individually adjusted using the supplied cover panels
Icon

long life LED 25.000 h CRI 80

Icon

3000K warm-white

Icon

infrared sensor 360°

Icon

max. 10 m

Icon

IP44

Icon

2 - 2000 lux

Icon

5 sec - 15 min

Icon

Light source replaceable by end user

Icon

Control gear not exchangeable

  • Application, place: Outdoors

  • Installation: Surface wiring

  • Article number: 007881

  • PU1, net weight: 3,921 kg

  • Luminous flux total product: 781 lm

  • Colour temperature: 3000 K

  • With motion detector: Yes

  • Output: 9,78 W

  • Package content: 1

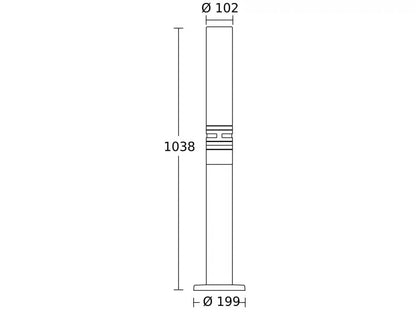

Product dimension

General

With lampYes
Manufacturer's Warranty3 years
Settings viaPotentiometers
With remote controlNo
PU1, EAN4007841007881
Application, placeOutdoors
Application, roomoutdoors, all round the building, garden, terrace / balcony, courtyard & driveway
Package content1

Fixation/ mounting

includes sheet of self-adhesive numbersNo
Installation siteStand mounted

Housing

Impact resistanceIK03
IP-ratingIP44
Protection classII
Ambient temperaturefrom -20 up to 50 °C
Housing materialStainless steel
Cover materialGlass opal

Electrical equipement

Mains power supply230 – 240 V / 50 Hz
Output9,78 W

Sensor technology

Slave modeselectableNo
Sneak-by guardYes
Capability of masking out individual segmentsYes
Electronic scalabilityNo
Mechanical scalabilityNo
Reach, radialØ 12 m (113 m²)
Reach, tangentialØ 24 m (452 m²)
Cover materialshrouds
Detection angle360 °

Luminaire

Photo-cell controllerYes
Luminous flux total product781 lm
Measured luminos flux (360°)781 lm
Total product efficiency79,9 lm/W
Colour temperature3000 K
Colour variation LEDSDCM6
LampLED can be replaced
LED life expectancy (max. °C)25000 h
Service life LED L70B50 (25°)> 20000 h
BaseE27
LED cooling systemPassive Thermo Control
Soft light startYes
Continuous lightselectable, 4h
Colour Rendering Index CRI= 82

General information

Article number007881
European Article Number (EAN)4007841007881
Basic light level function in per cent10 – 50 %
Basic light level function percentage, from10 %
Basic light level function percentage, up to50 %

Functions

Twilight setting2 – 2000 lx
Time setting5 s – 15 Min.
Basic light level functionYes

Connection

InterconnectionNo

General information

Product categorySensor-switched LED outdoor light
