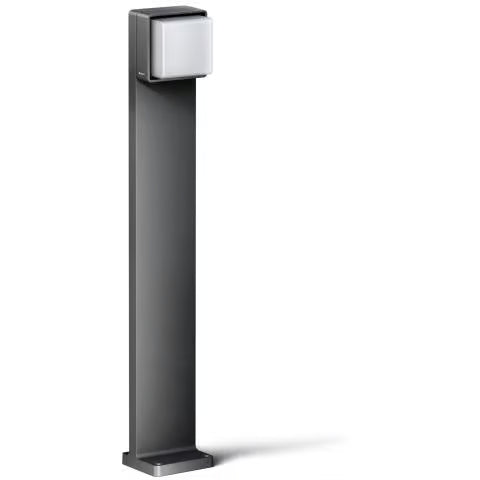

Sensor-switched LED outdoor light - Professional Line

GL 85 900 SC with motion detector & Bluetooth

Product Code: 078683

Connected Lighting - Completes an object with intelligent light in the outdoor area. High-quality aluminium path luminaire GL 85 SC 900 in cubic design and 90 cm height. With 655 lm at 9 W (3000 K). With invisible 160° high-frequency sensor and 5 m detection radius. Time-saving wireless commissioning, setting and cross-range networking via Bluetooth Mesh and Connect App. With neighbour group function, soft light start, basic light (0-100%) and dimmable main light (0-100%).

Pairs well with
This is how you save.
Connected lighting – top-of-the-range pioneering lights.

Connected Lighting in the application.

The combination of sensor technology, efficient LED light, networking and intelligent control ensures needs-based switching and creates greater convenience and safety for users. The system is also unbeatably easy to install thanks to tool-free commissioning via the Steinel Connect app. A 5-year manufacturer's guarantee, BEG eligibility and savings of up to 95% on electricity and maintenance costs round off the benefits for everyone involved.

This is how you save.

The savings apply in comparison to using a conventional LED light without motion detector with the same power for an average of 10 hours of continuous light a day. In comparison, the STEINEL LED light with motion detector only lights up for an average of 2 hours at night because the light is only switched on when movement is detected.

Connected lighting – top-of-the-range pioneering lights.

The elegant GL 85 SC aluminium bollard lamp from the Cube Pro range is a sure-footed and, above all, stylish companion for use as a night-light along any path at home. With its simple cube design, the light offering 3000 K and 655 lm sets attractive design and lighting accents – and thus skilfully enhances outdoor areas of modern, architecturally sophisticated residential complexes in particular. Commissioning, setting up and networking are impressively simple and quick thanks to Bluetooth Mesh combined with the free STEINEL Connect app. The invisible high-frequency sensor with a 160° detection angle has a radius of up to 5 m and can be digitally adjusted quickly and precisely. Thanks to wireless Bluetooth networking featuring an interconnected group function, paths and driveways can be lined with visionary light and thus illuminated safely and to suit all needs. The high-quality outdoor light features a soft light start, basic light (0-100%) and dimmable main light (0-100%), and allows for customised and energy-saving lighting scenarios. With heights of 60 cm and 90 cm, there are two sizes to choose from. This attractive bollard and path light is also available without a sensor. The foot and upright are both available as spare parts.

Connected Lighting in the application.

The combination of sensor technology, efficient LED light, networking and intelligent control ensures needs-based switching and creates greater convenience and safety for users. The system is also unbeatably easy to install thanks to tool-free commissioning via the Steinel Connect app. A 5-year manufacturer's guarantee, BEG eligibility and savings of up to 95% on electricity and maintenance costs round off the benefits for everyone involved.

This is how you save.

The savings apply in comparison to using a conventional LED light without motion detector with the same power for an average of 10 hours of continuous light a day. In comparison, the STEINEL LED light with motion detector only lights up for an average of 2 hours at night because the light is only switched on when movement is detected.

Connected lighting – top-of-the-range pioneering lights.

The elegant GL 85 SC aluminium bollard lamp from the Cube Pro range is a sure-footed and, above all, stylish companion for use as a night-light along any path at home. With its simple cube design, the light offering 3000 K and 655 lm sets attractive design and lighting accents – and thus skilfully enhances outdoor areas of modern, architecturally sophisticated residential complexes in particular. Commissioning, setting up and networking are impressively simple and quick thanks to Bluetooth Mesh combined with the free STEINEL Connect app. The invisible high-frequency sensor with a 160° detection angle has a radius of up to 5 m and can be digitally adjusted quickly and precisely. Thanks to wireless Bluetooth networking featuring an interconnected group function, paths and driveways can be lined with visionary light and thus illuminated safely and to suit all needs. The high-quality outdoor light features a soft light start, basic light (0-100%) and dimmable main light (0-100%), and allows for customised and energy-saving lighting scenarios. With heights of 60 cm and 90 cm, there are two sizes to choose from. This attractive bollard and path light is also available without a sensor. The foot and upright are both available as spare parts.

Icon

36 years (Ø 4,5h / day)

Icon

3000K warm-white

Icon

1 - 5 m

Icon

outdoor light

Icon

2 - 2000 lux

Icon

5 sec - 60 min

Icon

0 - 100% basic light

Icon

Light source not exchangeable

Icon

Control gear not exchangeable

  • Application, place: Outdoors

  • Installation: Other

  • Article number: 078683

  • PU1, net weight: 2,856 kg

  • Luminous flux total product: 655 lm

  • Colour temperature: 3000 K

  • With motion detector: Yes

  • Interconnection via: Bluetooth Mesh

  • Output: 9 W

  • Package content: 1

Product dimension

General

Dimensions (L x W x H)136 x 146 x 900 mm
With lampYes, STEINEL LED system
Manufacturer's Warranty5 years
Settings viaApp, Bluetooth Mesh, Smartphone
With remote controlNo
Versionwith motion detector
PU1, EAN4007841078683
Application, placeOutdoors
Application, roomoutdoors, garden
Package content1

Fixation/ mounting

includes sheet of self-adhesive numbersNo
Installation siteStand mounted

Housing

Impact resistanceIK03
IP-ratingIP44
Protection classI
Ambient temperaturefrom -20 up to 40 °C
Housing materialAluminium
Cover materialPlastic, opal

Electrical equipement

Mains power supply220 – 240 V / 50 – 60 Hz
Output9 W

Sensor technology

Detectionalso through glass, wood and stud walls
Sneak-by guardNo
Capability of masking out individual segmentsNo
Electronic scalabilityYes
Mechanical scalabilityNo
Reach, detailDetection zone adjustable on 3 axes
Reach, radialr = 5 m (35 m²)
Reach, tangentialr = 5 m (35 m²)
Detection angle160 °

Luminaire

Photo-cell controllerYes
Luminous flux total product655 lm
Measured luminos flux (360°)655 lm
Total product efficiency72,7 lm/W
Colour temperature3000 K
Colour variation LEDSDCM3
LampLED cannot be replaced
Service life LED L70B50 (25°)> 60000 h
Drop in luminous flux in accordance with LM80L70B50
Basewithout
Soft light startYes
Continuous lightselectable, 4h
Colour Rendering Index CRI= 82

General information

Article number078683
European Article Number (EAN)4007841078683
Basic light level function in per cent10 – 100 %
Basic light level function percentage, from10 %
Basic light level function percentage, up to100 %

Functions

FunctionsMotions sensor, Neighbouring group function
Twilight setting2 – 2000 lx
Time setting5 s – 60 Min.
Basic light level functionYes
Basic light level function time10s-60 min, Brightness-controlled, OFF
Main light adjustable0 - 100 %
Twilight setting TEACHYes

Connection

InterconnectionYes
Type of interconnectionMaster/slave
Interconnection viaBluetooth Mesh

General information

Product categorySensor-switched LED outdoor light
