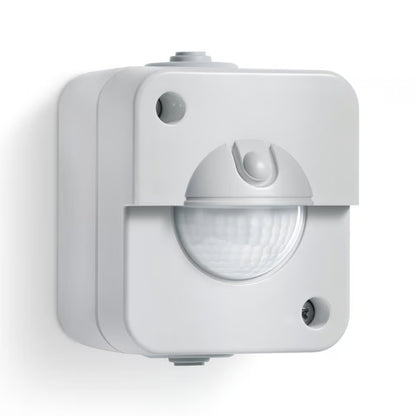

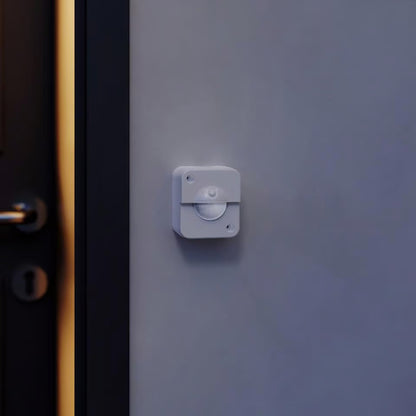

IR 180 AP easy Surface wiring

Product Code: 066048

Infrared motion detector with 180° detection angle and up to 8 m detection range
For surface wall mounting indoors and outdoors (IP 54), for easy retrofitting to automatic light in new and existing buildings (For 2- and 3-wire installation)
Made of UV-resistant plastic for a long service life
Stepless adjustment of time (5 sec. - 30 min.) and switch-on brightness (2-1000 lux), teach function, push-button for use as conventional light switch
Reliably switches any light source with a total of max. 200 W switching load (LED light sources max. 160 W/50 pcs.)
Incl. mounting accessories - plastic-free packaging

Product variants

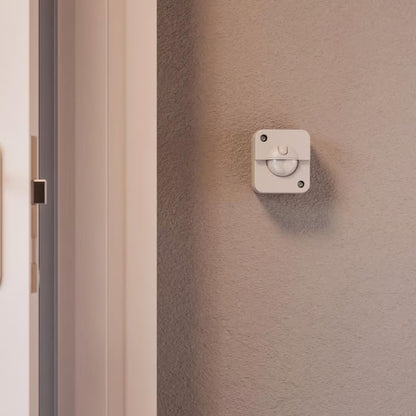

Hands full? Step into the light.

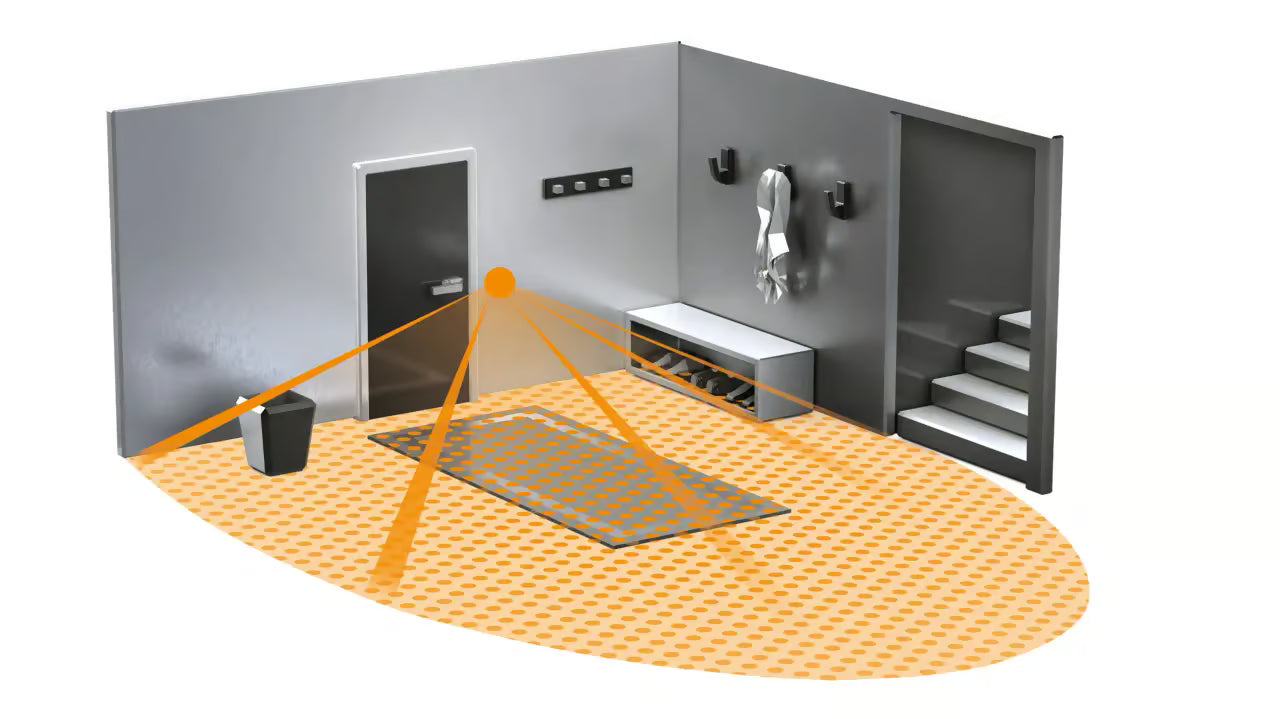

You come home from the supermarket and are get the shopping out of the car. Arms full, you take it into the pantry. Reliably, conveniently and without the need to touch it, the IR 180 AP easy automatically switches the light 'ON' and 'OFF' again as soon as you leave the room. The intelligent switch is particularly good for corridors, kitchens, guest WCs and other service rooms. Incidentally, installation couldn't be easier. Using it to replace your conventional switches is as easy as putting icing to a cake, whether as a 2-wire or 3-wire installation. Switches all lamp types.

infrared sensor 180°

max. 8 m

long life LED 25.000 h

max. 2000 W

manual switch ON/OFF

Teach mode

IP54

2 - 1000 lux

5 sec - 30 min

Application, place: Indoors, Outdoors
Installation: Surface wiring

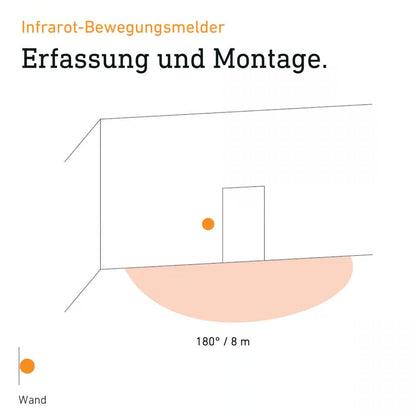

Detection angle: 180 °
Reach, tangential: r = 8 m (101 m²)
Mounting height max.: 2,20 m
Version: Surface wiring
Article number: 066048
PU1, net weight: 0,199 kg
Package content: 1

General

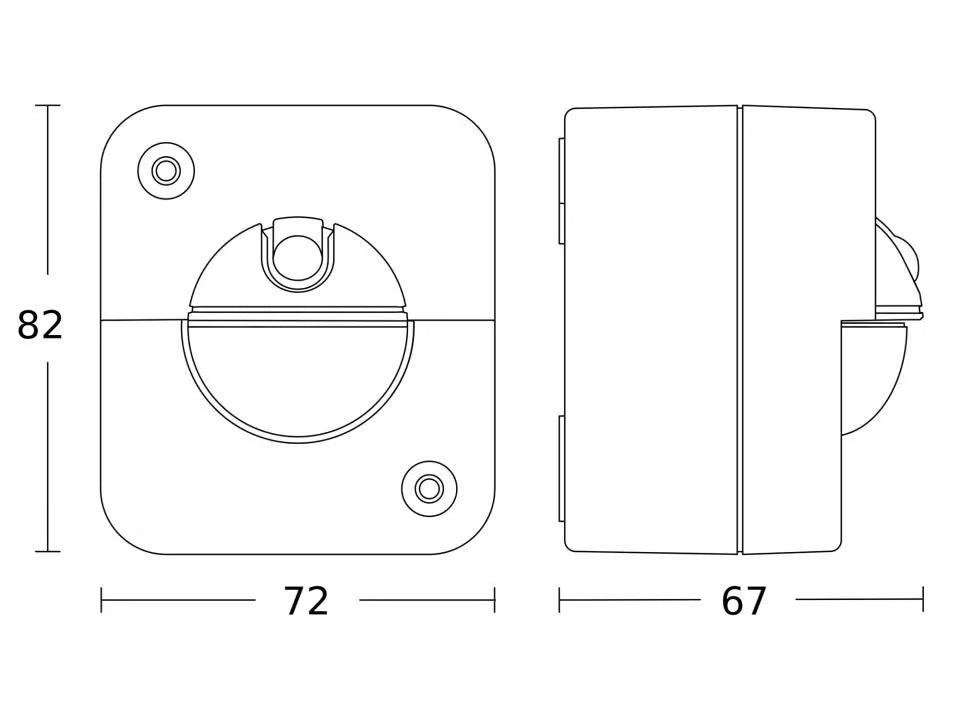

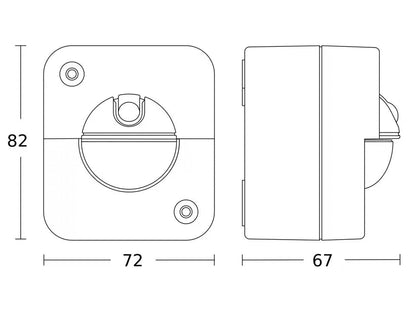

Dimensions (L x W x H)	82 x 72 x 67 mm
With motion detector	Yes
Manufacturer's Warranty	3 years
Settings via	Potentiometers
With remote control	No
Version	Surface wiring
PU1, EAN	4007841066048
Type	Motion detectors
Application, place	Indoors, Outdoors
Application, room	corridor / aisle, function room / ancillary room, WC / washroom, outdoors, Indoors
Colour	grey
Colour, RAL	7035
Package content	1

Fixation / mounting

Includes corner wall mount	No
Installation site	wall
Installation	Surface wiring, Wall

Housing

IP-rating	IP54
Protection class	II
Ambient temperature	from 0 up to 40 °C
Material	Plastic

Electrical equipment

Mains power supply	220 – 240 V / 50 – 60 Hz
Switching output 1, resistive	200 W
Switching output 1, number of LEDs / fluorescent lamps	4 pcs.
Fluorescent lamps, electronic ballast	150 W
Fluorescent lamps, uncorrected	150 VA
Fluorescent lamps, series-corrected	150 VA
Fluorescent lamps, parallel-corrected	150 VA
Switching output 1, low-voltage halogen lamps	200 VA
LED lamps < 2 W	40 W
LED lamps > 2 W < 8 W	100 W
LED lamps > 8 W	160 W
Capacitive load in μF	132 µF

General information

Article number	066048
European Article Number (EAN)	4007841066048
Detection angle	180 °
Angle of aperture	90 °

Sensor technology

Technology, sensors	passive infrared, Light sensor
Mounting height	0,90 – 2,20 m
Mounting height max.	2,20 m
Optimum mounting height	1,1 m
Sneak-by guard	Yes
Electronic scalability	No
Mechanical scalability	No
Reach, radial	r = 3 m (14 m²)
Reach, tangential	r = 8 m (101 m²)
Switching zones	96 switching zones

Functions

Twilight setting	2 – 1000 lx
Time setting	5 s – 30 Min.
Basic light level function	No
Main light adjustable	No
Twilight setting TEACH	Yes
Constant-lighting control	No

Connection

Interconnection

Yes

General information

Product category

Motion detector
