Motion detector - Professional Line

IS 3360 MX Highbay Com1 (on/off)

Product Code: 033569

A head for heights. Powerful reach. Reliable. IS 3360 MX Highbay motion detector – ideal for high ceilings in industrial buildings or commercial properties. For mounting heights of up to 14 m. High-precision 360° infrared sensor. Maximum reach: 18 m. For watching over up to 1000 sq.m. Available as square surface-mounted and concealed version.

Product variants

Pairs well with

IS 3360 MX Highbay

Com1 (on/off)

A head for heights. Powerful reach. Reliable.

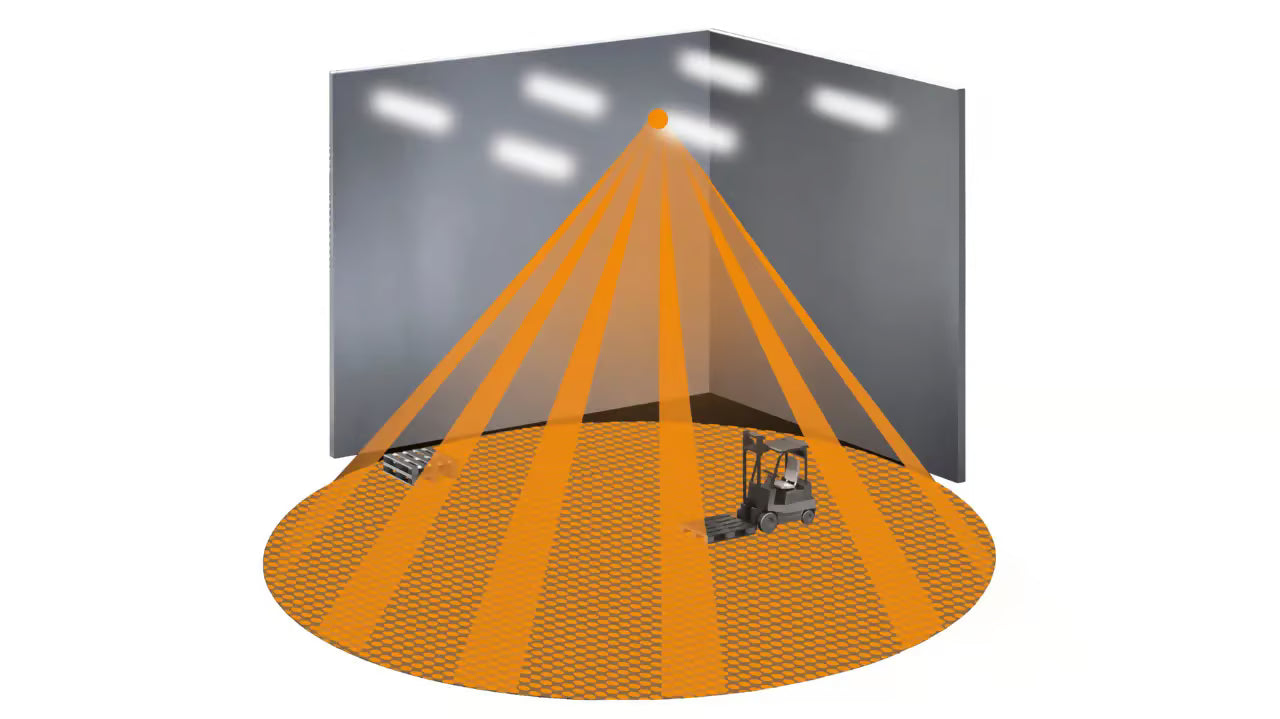

The ceilings are generally quite high in industrial halls and business premises. Good to know then that even high ceilings do not present a problem to the IS 3360 MX Highbay. The long-reach motion detector has an extra-large detection zone and remains absolutely alert even when it is installed at a height of up to 14 metres. The IS 3360 MX Highbay is highly reliable.

A head for heights. Powerful reach. Reliable.

The ceilings are generally quite high in industrial halls and business premises. Good to know then that even high ceilings do not present a problem to the IS 3360 MX Highbay. The long-reach motion detector has an extra-large detection zone and remains absolutely alert even when it is installed at a height of up to 14 metres. The IS 3360 MX Highbay is highly reliable.

infrared sensor 360°

18 m

max. 2000 W

IP54

2 - 1000 lux

5 sec - 15 min

Manual override

ideal 4 - 14 m

Teach mode

Application, place: Indoors
Installation: Surface wiring
Detection angle: 360 °
Reach, tangential: Ø 36 m (1018 m²)
Mounting height max.: 14,00 m
Version: COM1 - surface, sq.
Article number: 033569
PU1, net weight: 0,176 kg
Interconnection via: Cable
Package content: 1

General

Dimensions (L x W x H)	65 x 95 x 95 mm
With motion detector	Yes
Manufacturer's Warranty	5 years
Settings via	Remote control, Potentiometers, Smart Remote
With remote control	No
Version	COM1 - surface, sq.
PU1, EAN	4007841033569
Type	Motion detectors
Application, place	Indoors
Application, room	high-bay warehouse, sports hall, Indoors
Colour	white
Colour, RAL	9003
Package content	1

Fixation / mounting

Includes corner wall mount	No
Installation site	ceiling
Installation	Surface wiring, Ceiling

Housing

IP-rating	IP54
Ambient temperature	from -20 up to 50 °C
Material	Plastic

Electrical equipment

Mains power supply	220 – 240 V / 50 – 60 Hz
Switching output 1, resistive	2000 W
Switching output 1, number of LEDs / fluorescent lamps	8 pcs.
Fluorescent lamps, electronic ballast	1500 W
Fluorescent lamps, uncorrected	1000 VA
Fluorescent lamps, series-corrected	400 VA
Fluorescent lamps, parallel-corrected	400 VA
Switching output 1, low-voltage halogen lamps	2000 VA
LED lamps < 2 W	100 W
LED lamps > 2 W < 8 W	300 W
LED lamps > 8 W	600 W
Capacitive load in µF	176 µF
Power consumption	0.26 W

General information

Article number	033569
European Article Number (EAN)	4007841033569
Detection angle	360 °
Angle of aperture	180 °

Sensor technology

Technology, sensors	passive infrared, Light sensor
Mounting height	4.00 – 14.00 m
Mounting height max.	14.00 m
Optimum mounting height	12 m
Sneak-by guard	Yes
Capability of masking out individual segments	Yes
Electronic scalability	No
Mechanical scalability	No
Reach, radial	Ø 14 m (154 m²)
Reach, tangential	Ø 36 m (1018 m²)
Switching zones	1416 switching zones
Cover material	shrouds

Functions

Functions	Normal / test mode, Manual ON / ON-OFF
Twilight setting	2 – 1000 lx
Time setting	5 s – 15 Min.
Basic light level function	No
Main light adjustable	No
Twilight setting TEACH	Yes
Constant-lighting control	No

Connection

Interconnection	Yes
Type of interconnection	Master/master
Interconnection via	Cable
Interconnection, number	max. 10 sensors
