Sensor-switched outdoor light

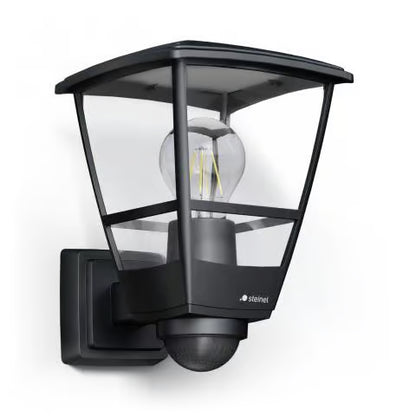

L 10 black with motion detector

Product Code: 084769

  • Outdoor light with motion detector in classic design
  • With integrated reflector foil under the lid for optimum illumination
  • Automatic light thanks to 180° infrared sensor in housing colour with up to 7.5 m detection on movement
  • Detection area and range can be individually limited by means of the cover clips provided
  • With E27 socket for LED bulb with max. 15 W (not included in delivery)
  • Incl. mounting accessories - plastic-free packaging
How much energy do you want to save?

How much energy do you want to save?

With STEINEL, you have the choice when it comes to energy saving. Our lights without motion sensors use energy-efficient LEDs and provide you with full manual control – a solid foundation for energy efficiency. Want to save more? Then our lights with twilight switches are a good choice, automatically turning on in darkness and saving up to 50% energy. For the highest savings of up to 95%, we recommend our lights with motion sensors, which only activate when needed. Choose your preference and enjoy the combination of efficiency and convenience with STEINEL.

Icon

max. 15 W E27

Icon

infrared sensor 180°

Icon

max. 7,5 m

Icon

outdoor light

Icon

IP44

Icon

5 sec - 60 min

Icon

2 - 2000 lux

Icon

energy saving

Icon

manufacture's warranty steinel.de/garantie

  • Application, place: Outdoors

  • Installation: Surface wiring

  • Article number: 084769

  • PU1, net weight: 0,785 kg

  • With motion detector: Yes

  • Interconnection via: Cable

  • Output: 15 W

  • Package content: 1

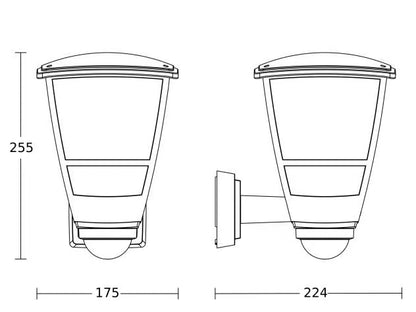

Product dimension

General

Dimensions (L x W x H)224 x 175 x 255 mm
With lampNo
Manufacturer's Warranty3 years
Settings viaPotentiometers
With remote controlNo
Versionblack
PU1, EAN4007841084769
Application, placeOutdoors
Application, roomfront door, courtyard & driveway, all round the building, terrace / balcony
Colourblack
Package content1

Fixation/ mounting

includes sheet of self-adhesive numbersNo
Installation sitewall

Housing

Impact resistanceIK03
IP-ratingIP44
Protection classII
Ambient temperaturefrom -20 up to 40 °C
Housing materialPlastic
Cover materialPlastic, structured

Electrical equipement

Mains power supply220 – 240 V / 50 – 60 Hz
Output15 W
Fluorescent lamps, electronic ballast1000 W
Fluorescent lamps, uncorrected500 VA
Fluorescent lamps, series-corrected500 VA
Fluorescent lamps, parallel-corrected500 VA
Switching output 1, low-voltage halogen lamps1000 VA
LED lamps < 2 W16 W
LED lamps > 2 W < 8 W64 W
LED lamps > 8 W64 W
Capacitive load in μF132 µF

Sensor technology

Mounting height max.3,00 m
Slave mode selectableNo
Reach, radialr = 3 m (14 m²)
Reach, tangentialr = 7.5 m (88 m²)
Cover materialCover clips
Optimum mounting height2,5 m
Detection angle180 °

Luminaire

Photo-cell controllerYes
LampAll-purpose lamp
BaseE27

General information

Article number084769
European Article Number (EAN)4007841084769

Functions

FunctionsMotion sensor
Twilight setting2 – 2000 lx
Time setting5 s – 60 Min.
Basic light level functionNo
Main light adjustableNo
Twilight setting TEACHNo

Connection

InterconnectionYes
Interconnection viaCable

General information

Product categorySensor-switched outdoor light
