How much energy do you want to save?

How much energy do you want to save?

With STEINEL, you have the choice when it comes to energy saving. Our lights without motion sensors use energy-efficient LEDs and provide you with full manual control – a solid foundation for energy efficiency. Want to save more? Then our lights with twilight switches are a good choice, automatically turning on in darkness and saving up to 50% energy. For the highest savings of up to 95%, we recommend our lights with motion sensors, which only activate when needed. Choose your preference and enjoy the combination of efficiency and convenience with STEINEL.

Icon

long life LED 25.000 h CRI 80

Icon

3000K warm-white

Icon

infrared sensor 240°

Icon

max. 10 m

Icon

IP44

Icon

2 - 2000 lux

Icon

5 sec - 15 min

Icon

Light source replaceable by end user

Icon

Control gear not exchangeable

  • Application, place: Outdoors

  • Installation: Surface wiring

  • Article number: 007874

  • PU1, net weight: 1,736 kg

  • Luminous flux total product: 703 lm

  • Colour temperature: 3000 K

  • With motion detector: Yes

  • Output: 9,87 W

  • Package content: 1

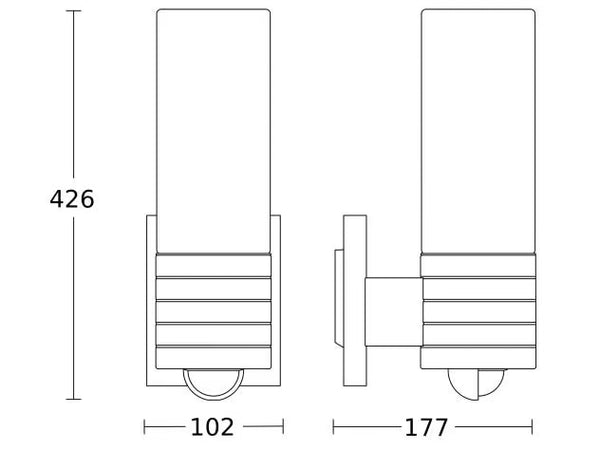

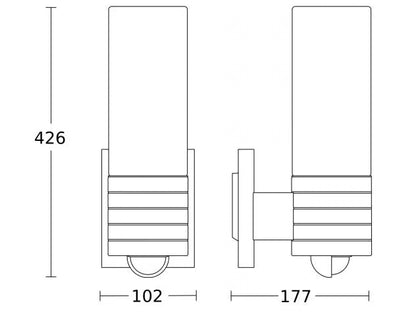

Product dimension

General

Dimensions (L x W x H)177 x 102 x 426 mm
With lampYes, LED lamp
Manufacturer's Warranty3 years
Settings viaPotentiometers
With remote controlNo
PU1, EAN4007841007874
Application, placeOutdoors
Application, roomoutdoors, front door, all round the building, terrace / balcony, courtyard & driveway
Package content1

Fixation / mounting

Installation sitewall

Housing

Impact resistanceIK03
IP-ratingIP44
Protection classI
Ambient temperaturefrom -20 up to 50 °C
Housing materialStainless steel
Cover materialGlass opal

Electrical equipement

Mains power supply230 – 240 V / 50 Hz
Output9,87 W

Sensor technology

Mounting height max.6,00 m
Slave modeselectableNo
Sneak-by guardYes
Capability of masking out individual segmentsYes
Electronic scalabilityNo
Mechanical scalabilityNo
Reach, radialr = 6 m (75 m²)
Reach, tangentialr = 12 m (302 m²)
Cover materialshrouds
Optimum mounting height2 m
Detection angle240 °

Luminaire

Photo-cell controllerYes
Luminous flux total product703 lm
Measured luminos flux (360°)703 lm
Total product efficiency71,2 lm/W
Colour temperature3000 K
Colour variation LEDSDCM3
LampLED can be replaced
LED life expectancy (max. °C)25000 h
BaseE27
LED cooling systemPassive Thermo Control
Soft light startYes
Continuous lightselectable, 4h
Colour Rendering Index CRI= 82

General information

Article number007874
European Article Number (EAN)4007841007874

Functions

Twilight setting2 – 2000 lx
Time setting5 s – 15 Min.
Basic light level functionNo

Connection

InterconnectionNo

General information

Product categorySensor-switched LED outdoor light
